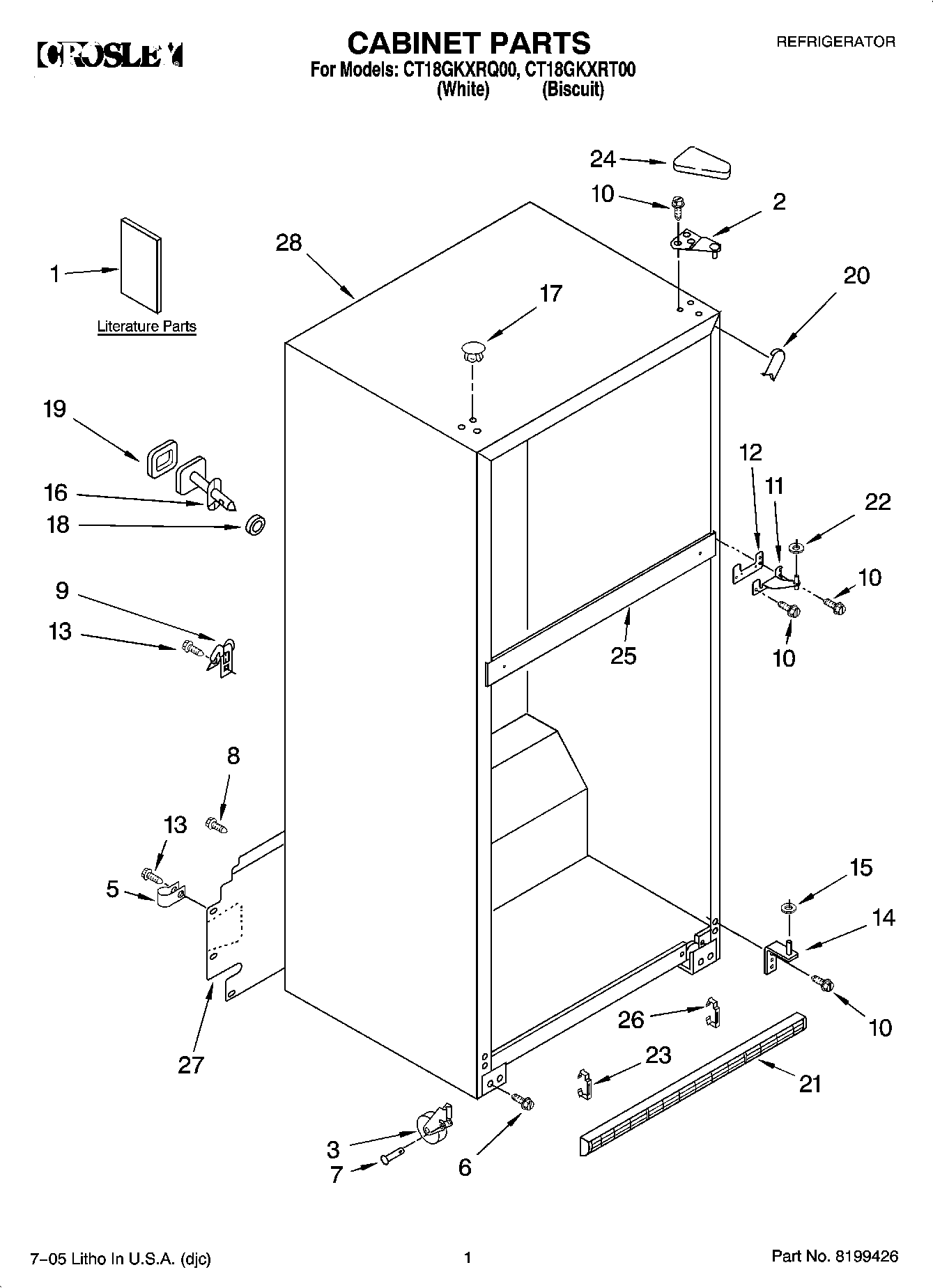

CT18GKXRT00 01 – CABINET PARTS

Products

Position	Product
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Energy Label
1	Use & Care Guide
1	Service & Wiring Sheet
1	Customer Instructions
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	WP488366 Whirlpool Refrigerator Clamp
6	WP3400504 Whirlpool Refrigerator Screw
7	W11594405 Whirlpool Axle
8	WP489427 Whirlpool Refrigerator Screw
9	549193 Whirlpool Refrigerator Power Clamp
10	WP489497 Whirlpool Screw
11	WP2254618 Whirlpool Center Door Hinge
12	WP2183854 Whirlpool Refrigerator Shim
13	WP489464 Whirlpool Refrigerator Screw
14	WP2254473 Whirlpool Refrigerator Door Hinge
15	WP487576 Whirlpool Washer
16	Fitting, Water Tube (Not Serviced)
17	WP2151652 Whirlpool Refrigerator Button Plug
17	Hole Plug (6) (Biscuit)
18	Seal, Front (Not Serviced)
19	Seal, Rear (Not Serviced)
20	W10283958 Whirlpool Refrigerator Filler
20	WPW10283959 Whirlpool Refrigerator Filler
21	WP2254386 Whirlpool Refrigerator Grille
22	WP489467 Whirlpool Hinge Shim
23	CLIP, GRILLE
24	2213364 Whirlpool Refrigerator Cover
24	WP2213360 Whirlpool Refrigerator Cover
25	Rail Center (Not Serviced)
26	2254385 Whirlpool Refrigerator Clip
27	Cover, Unit
28	Cabinet (Not A Serviceable Part)
