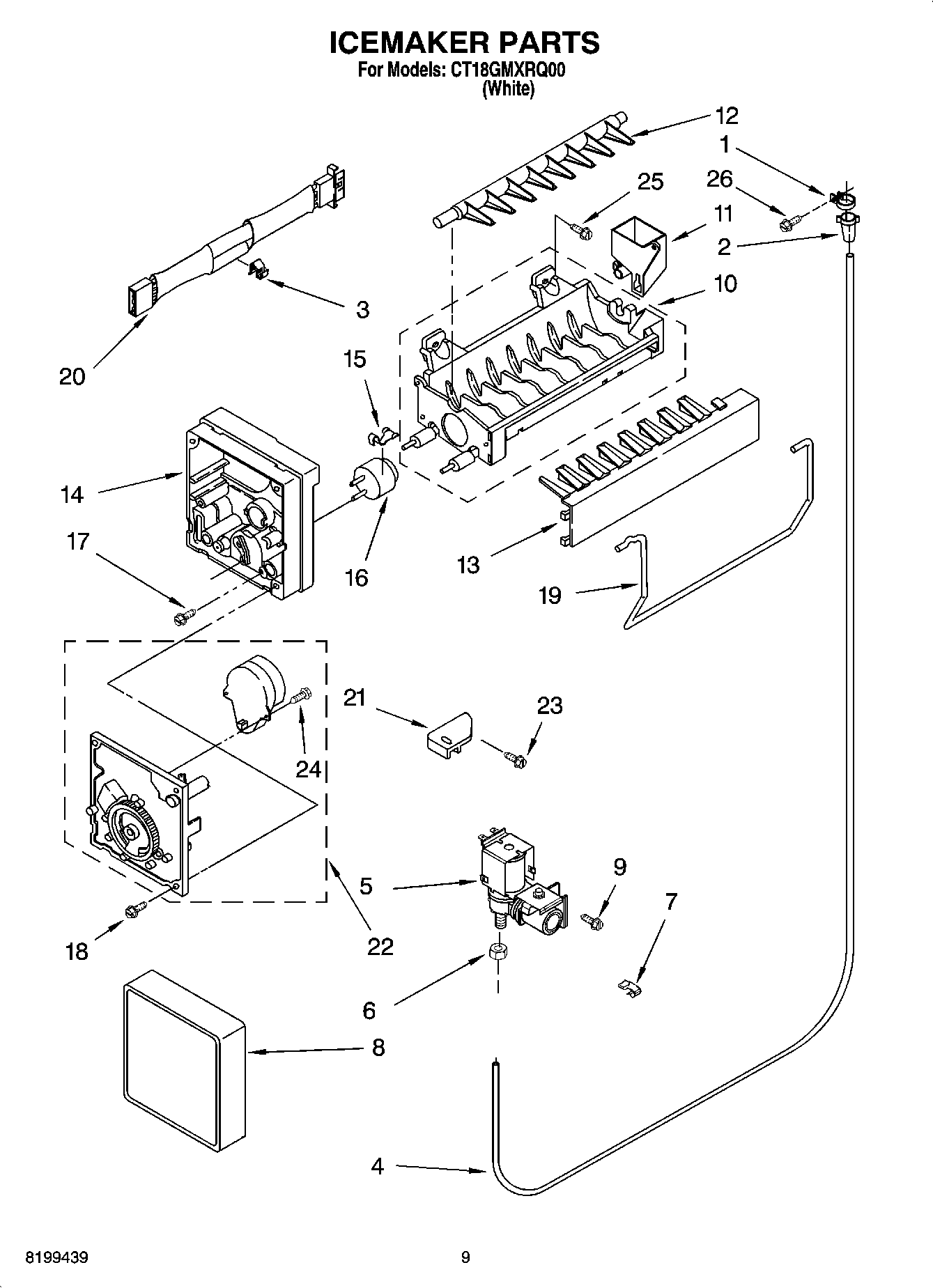

CT18GMXRQ00 05 – ICEMAKER PARTSadmin2025-04-26T09:41:50+00:00CT18GMXRQ00 05 – ICEMAKER PARTS ProductsPositionProduct1WP488878 Whirlpool Refrigerator Tube Clamp24387491 Whirlpool Refrigerator Insert3WP628379 Whirlpool Refrigerator Clip4W10823511 Whirlpool Refrigerator Water Tube5VALVE-INLT6WP627018 Whirlpool Refrigerator Nut72210495 Whirlpool Refrigerator Clip8WPW10289690 Whirlpool Ice Maker Cover9WP488787 Whirlpool Refrigerator Screw10WPW10190929 Whirlpool Refrigerator Ice Maker Mold11WP628356 Whirlpool Refrigerator Fill Cup12WP627843 Whirlpool Refrigerator Ejector Arm13WP2182124 Whirlpool Refrigerator Stripper Arm14WP2195914 Whirlpool Refrigerator Ice Maker Housing15WP2315522 Whirlpool Refrigerator Clip16WP627985 Whirlpool Icemaker Cycling Thermostat178533917 Whirlpool Refrigerator Screw18WP681249 Whirlpool Screw Assembly19WP627792 Whirlpool Refrigerator Shut Off Arm20WP2187464 Whirlpool Refrigerator Wire Harness21W11500948 Whirlpool Refrigerator Bracket22W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly23WP489478 Whirlpool Refrigerator Screw24489136 Whirlpool Refrigerator Screw25WP488163 Whirlpool Refrigerator Screw26WP489464 Whirlpool Refrigerator Screw1004317943 Whirlpool Refrigerator Ice Maker Assembly
