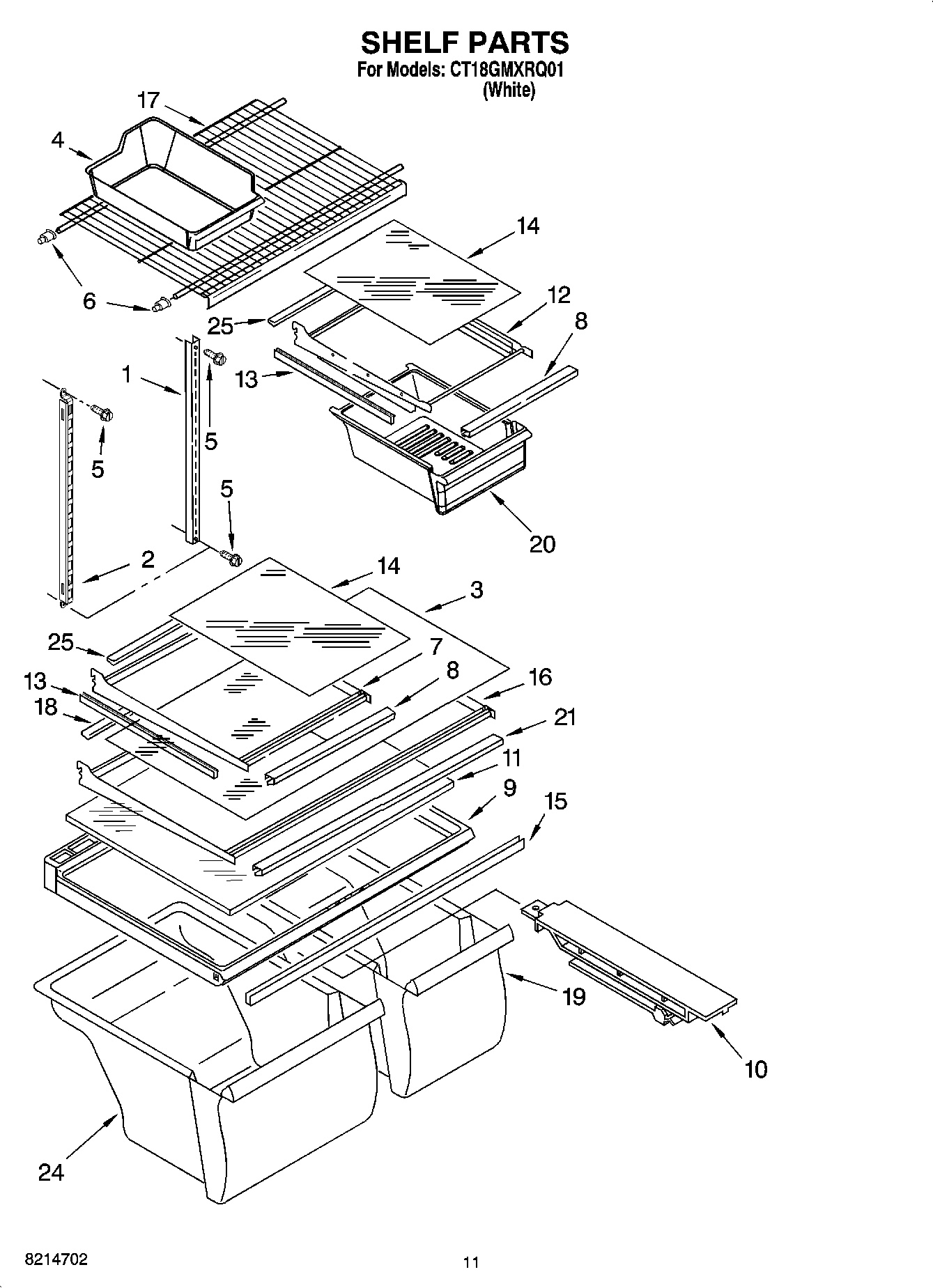

CT18GMXRQ01 06 – SHELF PARTS, OPTIONAL PARTS

CT18GMXRQ01 06 – SHELF PARTS, OPTIONAL PARTS

Written by

in

CT18GMXRQ01 06 – SHELF PARTS, OPTIONAL PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Torx Key
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799832
	WPL 799833
	WPL 876029
	WPL ARI22382A2
	WPL ARI22381A8
	WPL ARI22384A9
	WP542638 Whirlpool Refrigerator Grease
	WP505587 Whirlpool Refrigerator Sealer
	WP503695 Whirlpool Refrigerator Sealer
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WPL ARI22383A8
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	606755 Whirlpool Refrigerator Bag
	833938 Whirlpool Refrigerator Terminal
	876370 Whirlpool Refrigerator Insulation
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	Glass, Full Shelf
4	2254352A Whirlpool Refrigerator Ice Container
5	WP489478 Whirlpool Refrigerator Screw
6	2163762 Whirlpool Refrigerator Cup Assembly
7	Shelf, Catnilever
7	Shelf, Cantilever (Complete)
8	Trim, Shelf Front
9	WP2314548 Whirlpool Refrigerator Cover
10	WP2163835 Whirlpool Track Assembly
11	WP2169921 Whirlpool Refrigerator Glass Shelf
12	Shelf, Cantilever Meat Pan (Complete)
12	Shelf, Cantilever Meat Pan
13	Trim, Shelf Side
14	Glass, Half Shelf
15	WP2172748 Whirlpool Drawer Support
16	(Complete Shelf Not Shown Includes Items 3,13,16,18 & 21)
16	Shelf, Full Cantilever
17	Shelf, Freezer
19	W10856580 Whirlpool Crisper Pan
20	PAN-MEAT
21	Trim, Shelf (Front)
24	W10854037 Whirlpool Refrigerator Crisper Pan
25	WP2188689 Whirlpool Refrigerator Shelf Trim
