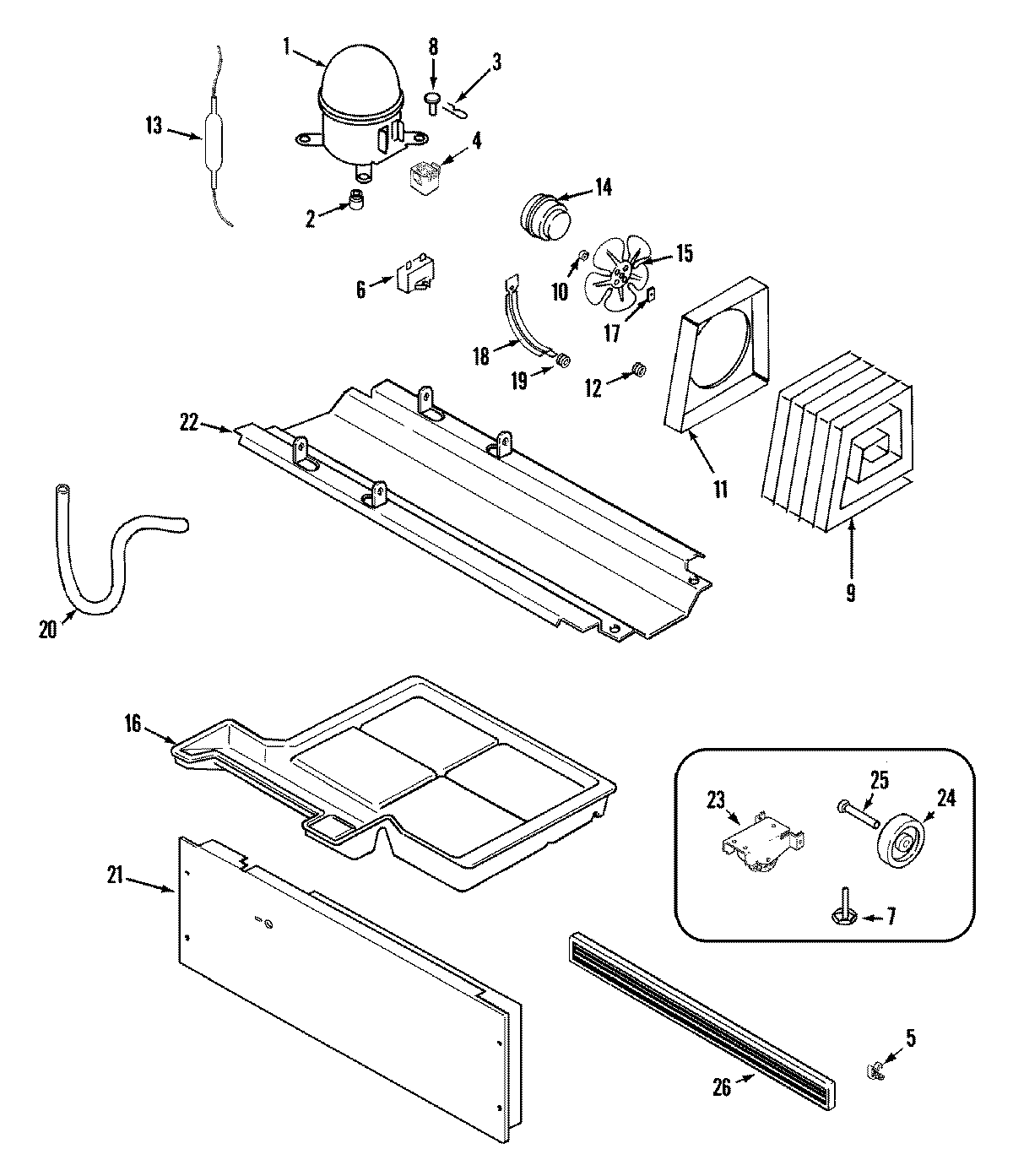

CT19G4Q 03 – COMPRESSOR (REV 18)

Products

Position	Product
NI	MAY 16008421
NI	MAY 12001492
NI	MAY 61003420
1	W10160407 Whirlpool Refrigerator Compressor
1	MAY 61004917
2	GROMMET (SERVICE)
3	MAY 61005561
4	12002794 Whirlpool Refrigerator Overload Relay Kit
4	MAY 61006187
5	MAY 61001975
6	WP65889-4 Whirlpool Refrigerator Capacitor
7	MAY 61002014
8	MAY 52656-2
9	MAY 61004378
9	MAY 61005427
10	MAY 61001686
11	MAY 61001941
12	MAY 61002033
13	WPW10143759 Whirlpool Dryer Filter
14	MAY 65275-33
14	833697 Whirlpool Condenser Fan Motor
15	MAY 60683-1
16	WP489478 Whirlpool Refrigerator Screw
16	MAY 61001955
17	WP486692 Whirlpool Refrigerator Nut
18	MAY 69181-1
19	GROMMET, BRACKET
20	MAY 61002214
21	MAY 61005388
21	MAY 61004654
21	MAY 65275-1
22	WP67006715 Whirlpool Refrigerator Screw
22	MAY 61005272
23	SCREW
23	MAY 61005216
24	WP61003826 Whirlpool Wheel
25	WP61002104 Whirlpool Refrigerator Pin Wheel
26	MAY 61005011
