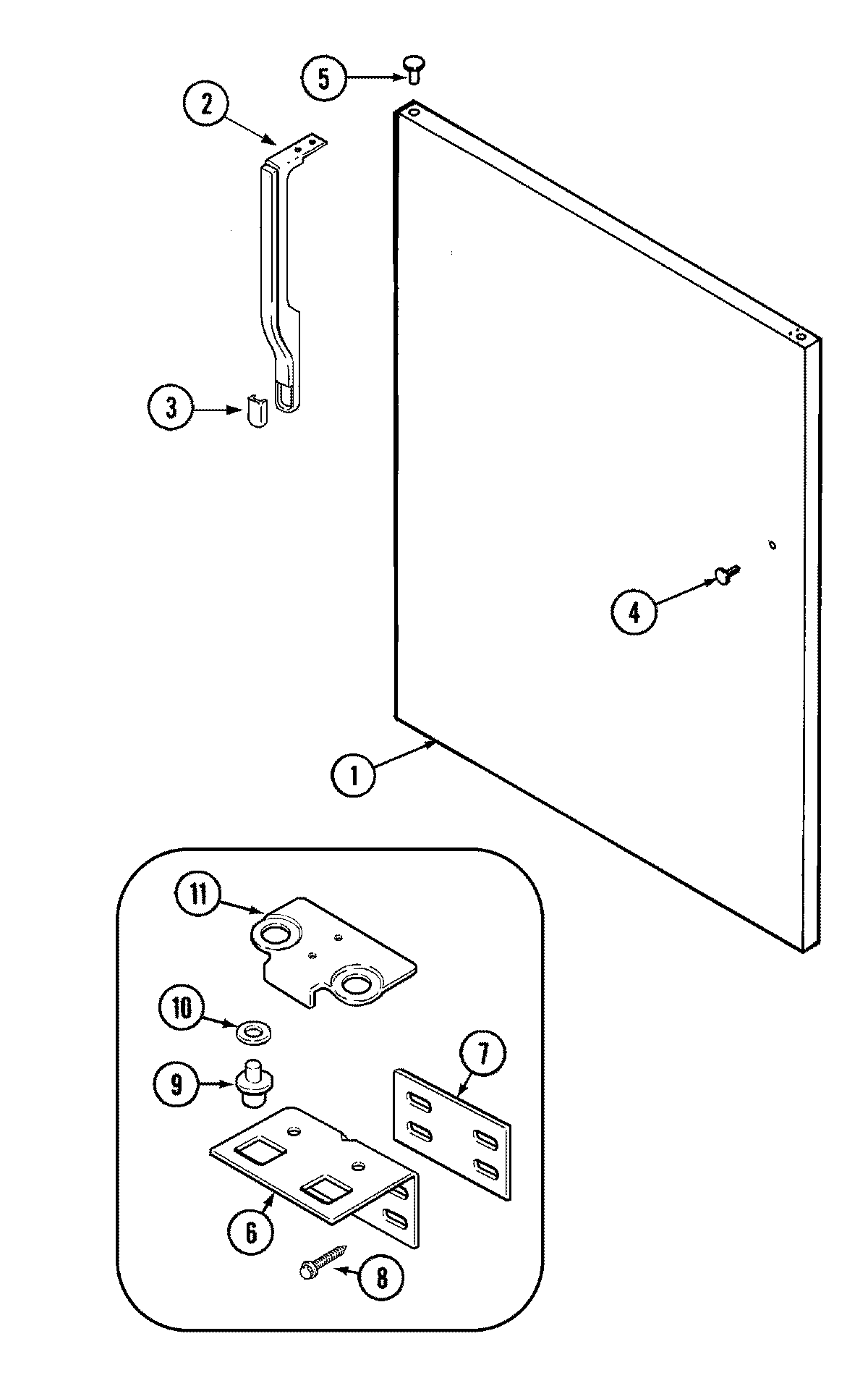

CT19G6B 11 – FRESH FOOD OUTER DOOR (REV 12)

CT19G6B 11 – FRESH FOOD OUTER DOOR (REV 12)

Written by

in

CT19G6B 11 – FRESH FOOD OUTER DOOR (REV 12)

Products

PositionProduct
1MAY 61002442
2MAY 61006039
3MAY 61006040
4MAY 61002443
4MAY 67678-5
5MAY 61002360
6MAY 61002361
7MAY 61001926
83400112 Whirlpool Refrigerator Screw
9WP61001925 Whirlpool Refrigerator Lower Pin
10WP61002231 Whirlpool Refrigerator Washer Hinge
11MAY 61001969
11MAY 61001876
