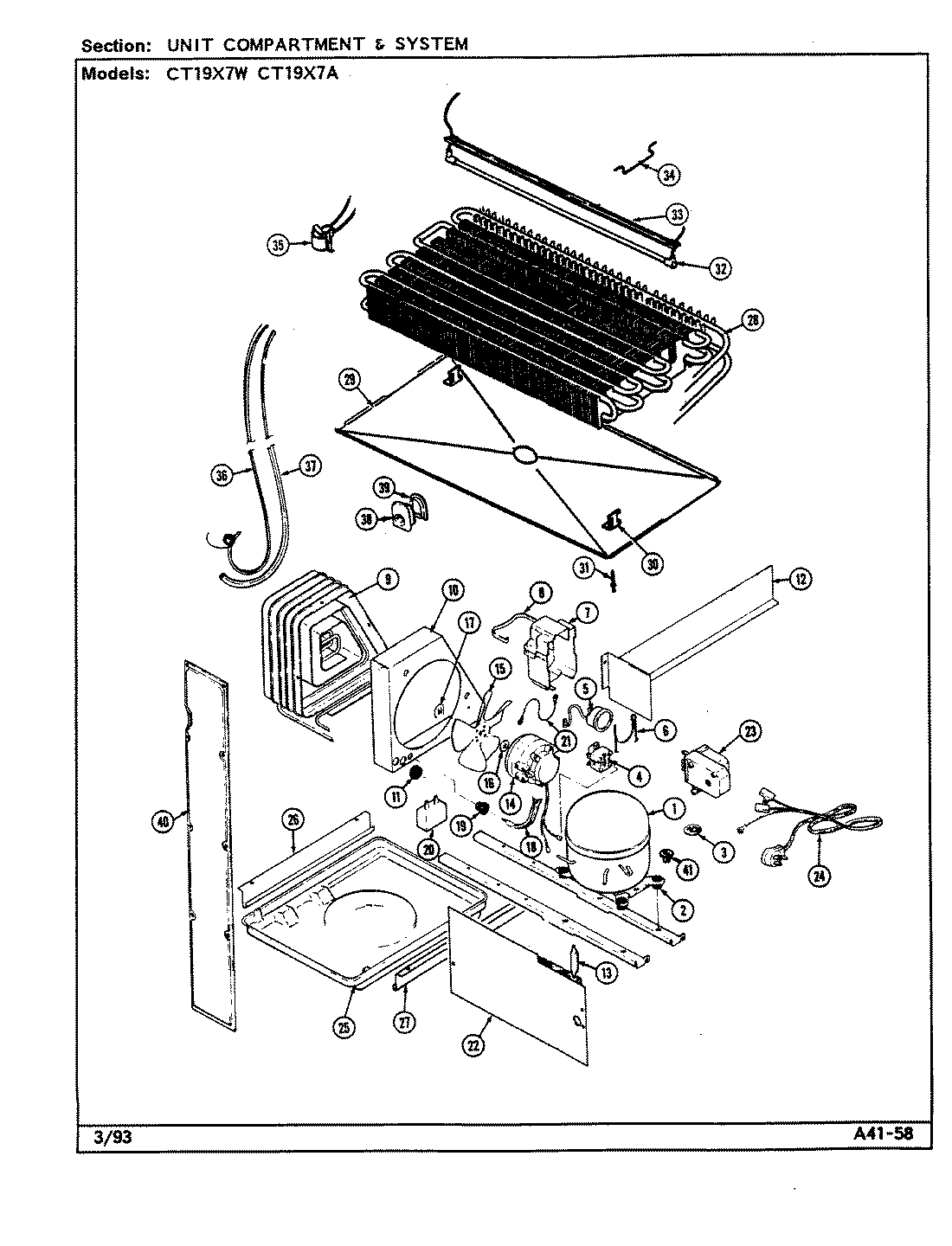

CT19X7W 05 – UNIT COMPARTMENT & SYSTEM

Products

Position	Product
1	MAY RA1032
2	MAY 17245-4
3	MAY 62165-1
3	MAY 414011-1
4	WP10097202 Whirlpool Refrigerator Start Device
5	4388953 Whirlpool Overload Relay
6	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
7	MAY 69754-1
8	MAY 59596-1
9	MAY RA43871-1
9	MAY 60408-2
10	MAY 66228-1
11	MAY 53351-1
12	MAY 66493-2
13	MAY 13900
14	MAY 67560-7
14	MAY 65275-33
15	WP12587601 Whirlpool Refrigerator Condenser Blade
16	MAY 19913-4
17	WP486692 Whirlpool Refrigerator Nut
18	MAY 69181-1
19	MAY 56933-1
20	WP65889-4 Whirlpool Refrigerator Capacitor
21	MAY 29675-3
22	MAY 66338-2
22	WP488729 Whirlpool Refrigerator Door Screw
23	MAY 405007-1
23	WP68233-2 Whirlpool Refrigerator Defrost Timer
24	MAY 52890-2
26	MAY 60555-1
27	MAY 60555-2
28	MAY 69822-7
29	MAY 69118-2
30	MAY 60108-2
31	MAY 26397-9
32	WP60106-35 Whirlpool Defrost Heater Assembly
33	MAY 60109-5
34	MAY 68825-1
35	MAY 52085-33
36	MAY 65013-22
37	MAY 65398-1
37	MAY 66223-1
38	MAY 60068-1
39	MAY 60069-1
39	MAY 70162-1
39	MAY 60177-2
40	WP489478 Whirlpool Refrigerator Screw
40	MAY 60110-2
41	MAY 52656-2
41	MAY 108340-1
