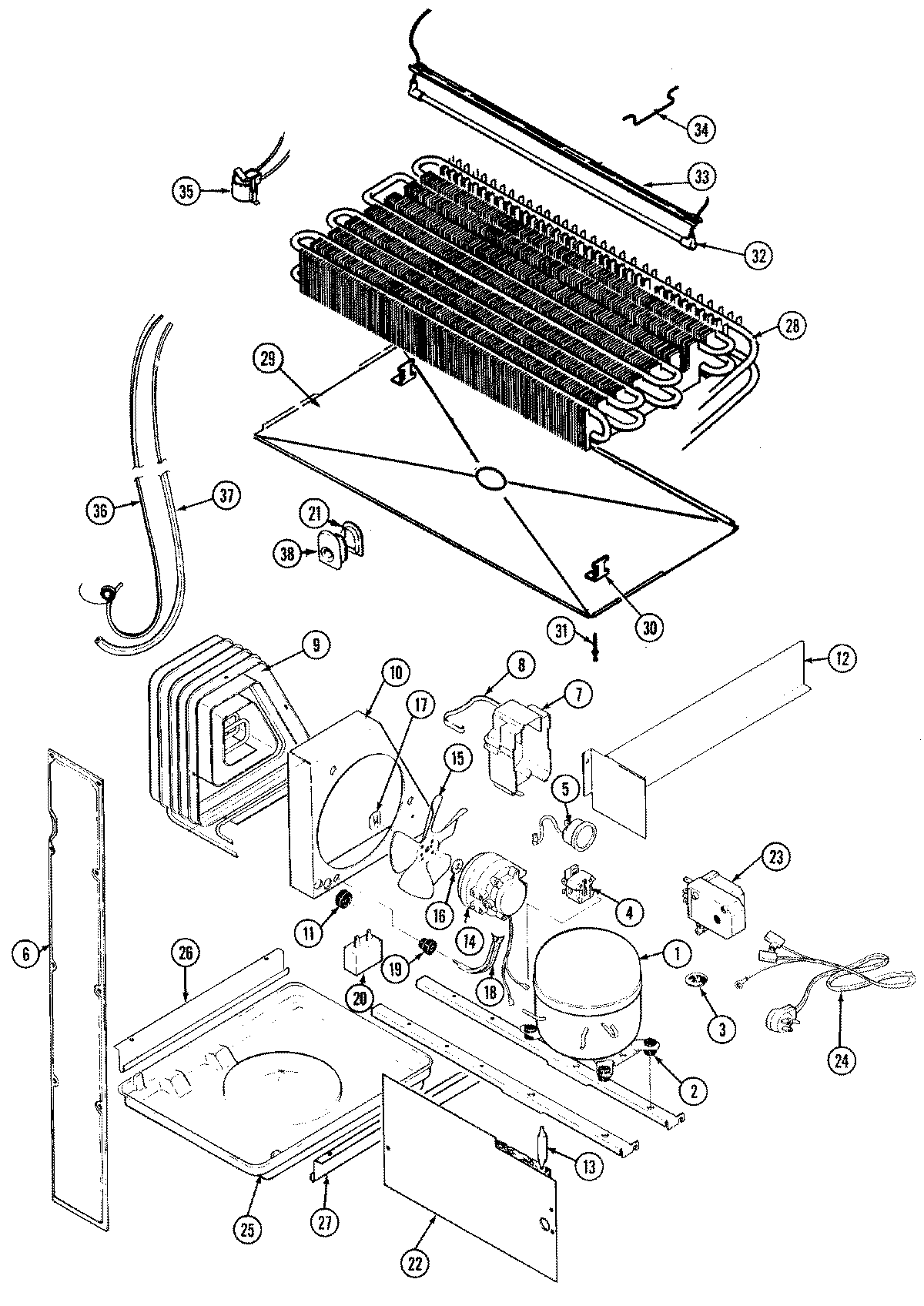

CT19Y4A 07 – UNIT COMPARTMENT & SYSTEM
Written by
in
CT19Y4A 07 – UNIT COMPARTMENT & SYSTEM
Products
Position
Product
1
MAY RA1032
1
MAY RA1011-1
2
MAY 17245-4
3
MAY 414011-1
3
MAY 52778-2
4
WP10097202 Whirlpool Refrigerator Start Device
4
2154436 Whirlpool Refrigerator Start Relay
5
MAY 69105-10
5
4388953 Whirlpool Overload Relay
6
MAY 60110-2
6
MAY 65275-50
7
MAY 69754-1
7
MAY 66589-2
8
MAY 59596-1
9
MAY 60434-3
9
MAY 60408-1
10
MAY 66228-1
11
MAY 53351-1
12
MAY 66493-1
13
MAY 13900
14
MAY 408015-1
14
MAY 61001016
14
MAY 68445-1
15
WP12587601 Whirlpool Refrigerator Condenser Blade
16
MAY 69063-1
17
MAY 19914-0
18
MAY 69181-1
19
MAY 56933-1
20
WP65889-4 Whirlpool Refrigerator Capacitor
20
WP2262343 Whirlpool Refrigerator/Freezer Capacitor
21
MAY 70162-1
21
MAY 60177-4
21
MAY 60069-1
21
MAY 61001560
22
WP488729 Whirlpool Refrigerator Door Screw
22
MAY 66338-4
23
MAY 405007-1
23
WP68233-2 Whirlpool Refrigerator Defrost Timer
24
MAY 52890-2
26
MAY 60555-1
27
WP489478 Whirlpool Refrigerator Screw
27
MAY 60555-2
28
MAY 69822-7
29
MAY 69118-2
30
MAY 60108-2
31
MAY 26397-9
32
WP60106-35 Whirlpool Defrost Heater Assembly
33
MAY 60109-5
34
MAY 68935-1
35
MAY 52085-33
36
MAY 65013-22
36
MAY 65013-26
36
MAY 66223-1
37
MAY 65398-1
38
MAY 60068-1
38
MAY 108340-3
←
