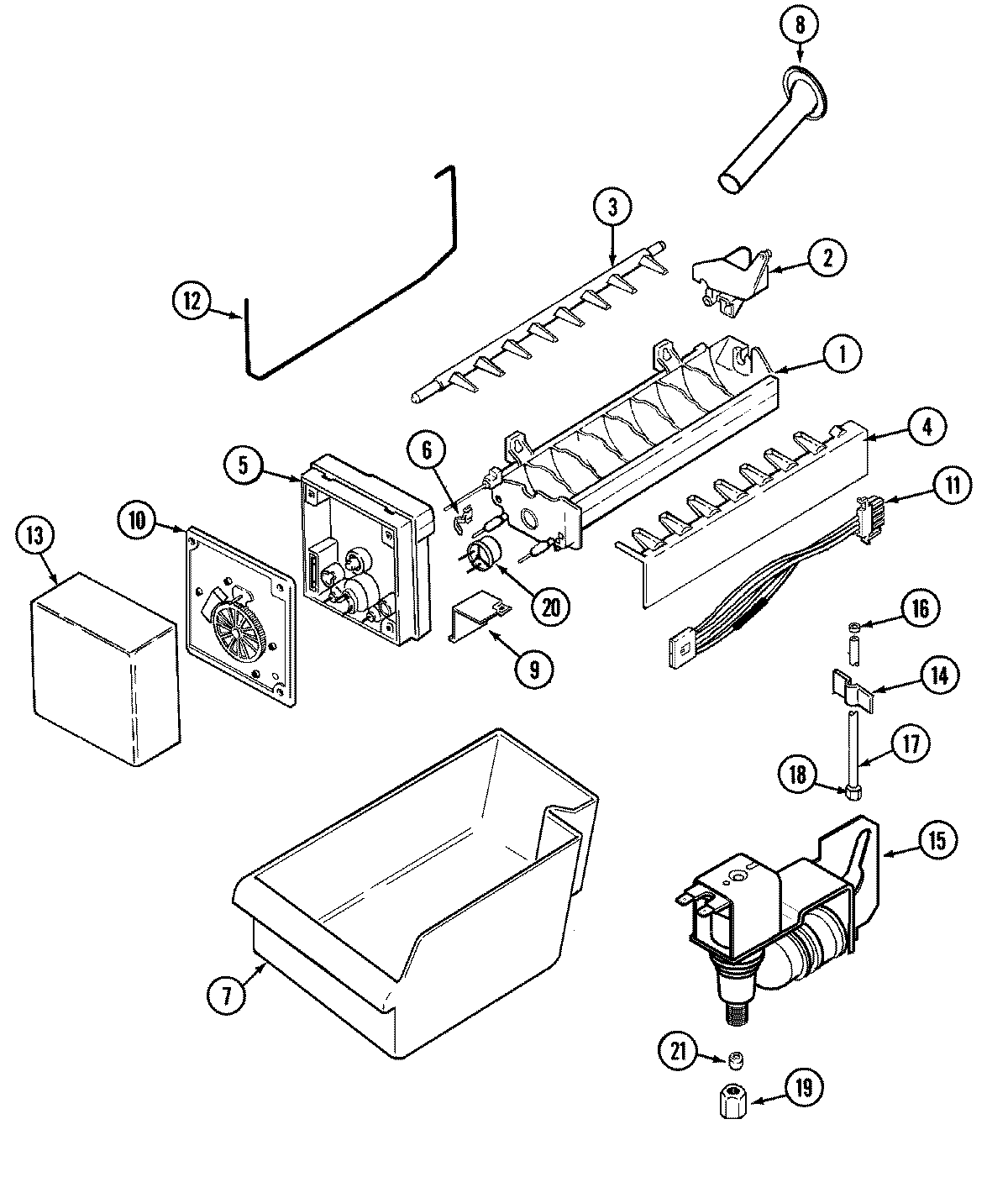

CT21A5Q 08 – OPTIONAL ICE MAKER KIT-UKI1000AXX (BSQ)

Products

PositionProduct
1D7824706Q Whirlpool Refrigerator Ice Maker Assembly
1WP99003172 Whirlpool Silicone L
2WP628356 Whirlpool Refrigerator Fill Cup
3WP627843 Whirlpool Refrigerator Ejector Arm
4WP2182124 Whirlpool Refrigerator Stripper Arm
5WP2195914 Whirlpool Refrigerator Ice Maker Housing
5SCREW
6WP2315522 Whirlpool Refrigerator Clip
7MAY 61001886
8MAY 61001888
9MAY 95108-1
9BRACKET, MODULE & HEATER
10MAY 400021-1
10MAY 95109-1
11MAY 61001882
12MAY 68112-1
13MAY 61001239
14MAY 61001889
14SCREW
14W10833902 Whirlpool Refrigerator Clamp
15MAY 61002819
15WP61005273 Whirlpool Refrigerator Inlet Valve
16WPM0114003 Whirlpool Microwave Speed Clip Clamp
17MAY 67579-6
18WP627018 Whirlpool Refrigerator Nut
19WP245183 Whirlpool Nut
20MAY 95093-1
20WP627985 Whirlpool Icemaker Cycling Thermostat
21WP487627 Whirlpool Refrigerator Sleeve
