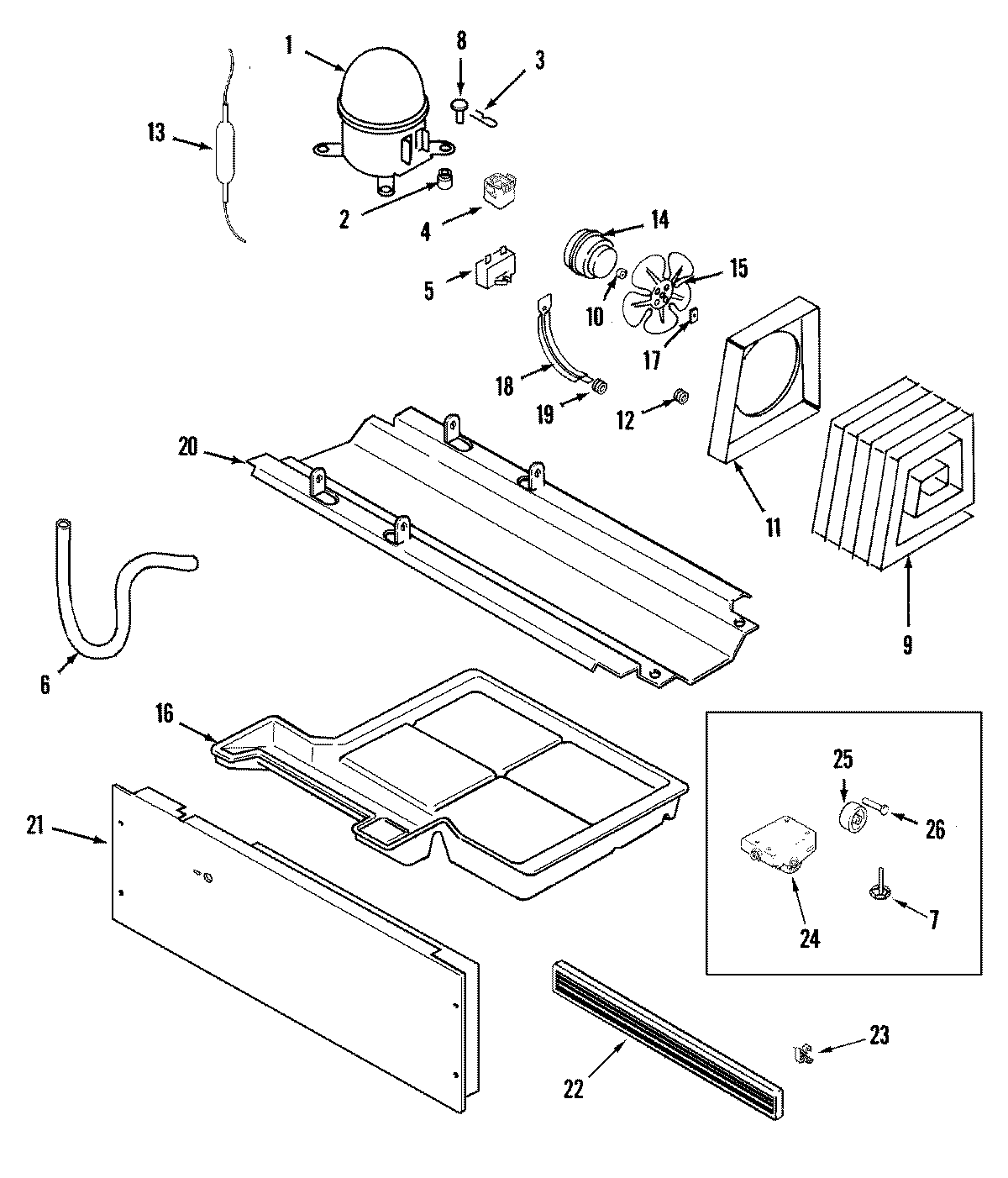

CT21G6Q 01 – COMPRESSOR (REV 11)

Written by

Products

Position	Product
NI	MAY 12001492
NI	MAY 61003420
NI	MAY 16008421
1	MAY 12001872
1	MAY 61004917
2	WP4387558 Whirlpool Refrigerator Compressor Grommet
3	MAY 61005561
4	MAY 61005620
4	12002782 Whirlpool Refrigerator Overload Relay Kit
5	WP65889-4 Whirlpool Refrigerator Capacitor
6	MAY 61002214
7	MAY 61005612
8	MAY 52656-2
9	MAY 61005454
9	MAY 61004378
10	MAY 61001686
11	MAY 61001941
12	MAY 61002033
13	WPW10143759 Whirlpool Dryer Filter
14	MAY 65275-33
14	833697 Whirlpool Condenser Fan Motor
15	MAY 60683-1
16	MAY 61004095
16	WP489478 Whirlpool Refrigerator Screw
17	WP486692 Whirlpool Refrigerator Nut
18	MAY 69181-1
19	GROMMET, BRACKET
20	MAY 61005268
20	WP67006715 Whirlpool Refrigerator Screw
21	MAY 65275-1
21	MAY 61005388
21	MAY 61005061
22	MAY 61004901
23	MAY 61001975
24	SCREW
24	MAY 61005232
25	WP61003826 Whirlpool Wheel
26	WP61002104 Whirlpool Refrigerator Pin Wheel
