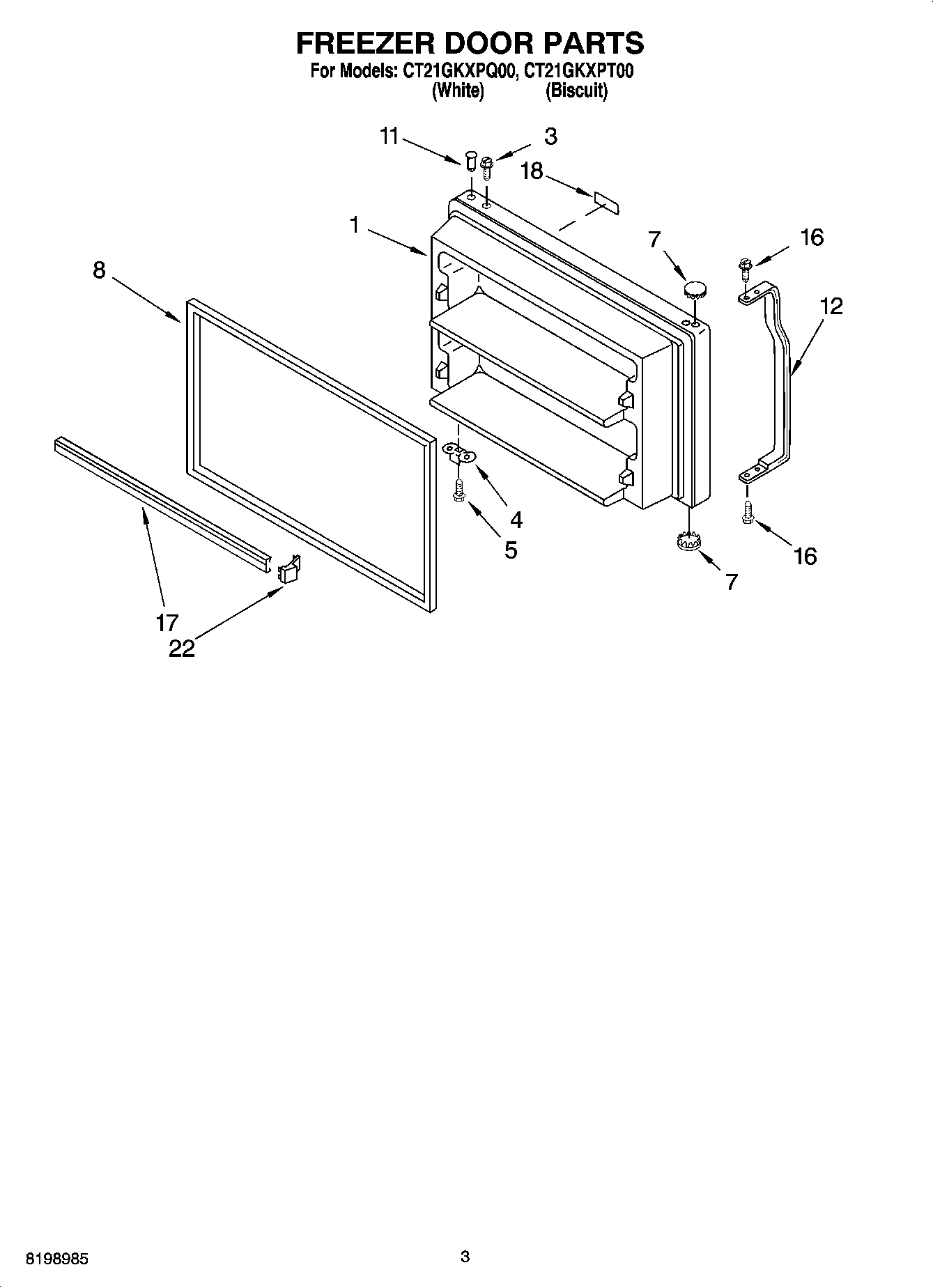

CT21GKXPQ00 02 – FREEZER DOOR PARTS

CT21GKXPQ00 02 – FREEZER DOOR PARTS

Written by

in

CT21GKXPQ00 02 – FREEZER DOOR PARTS

Products

PositionProduct
1W11023688 Whirlpool Refrigerator Door Assembly
1W11023679 Whirlpool Refrigerator Door Assembly
3WP8281206 Whirlpool Refrigerator Screw
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8WHITE DOOR GASKET-FIP
11WP2183003 Whirlpool Thimble
12WP2202806W Whirlpool Refrigerator Handle
12Handle, F.C. (Biscuit)
16WP489357 Whirlpool Recessed Screw
17WP2201060 Whirlpool Refrigerator Door Trim
18Clip, Snap-In (2)
18Nameplate
22WP2156003 Whirlpool Refrigerator Door Shelf End Cap
