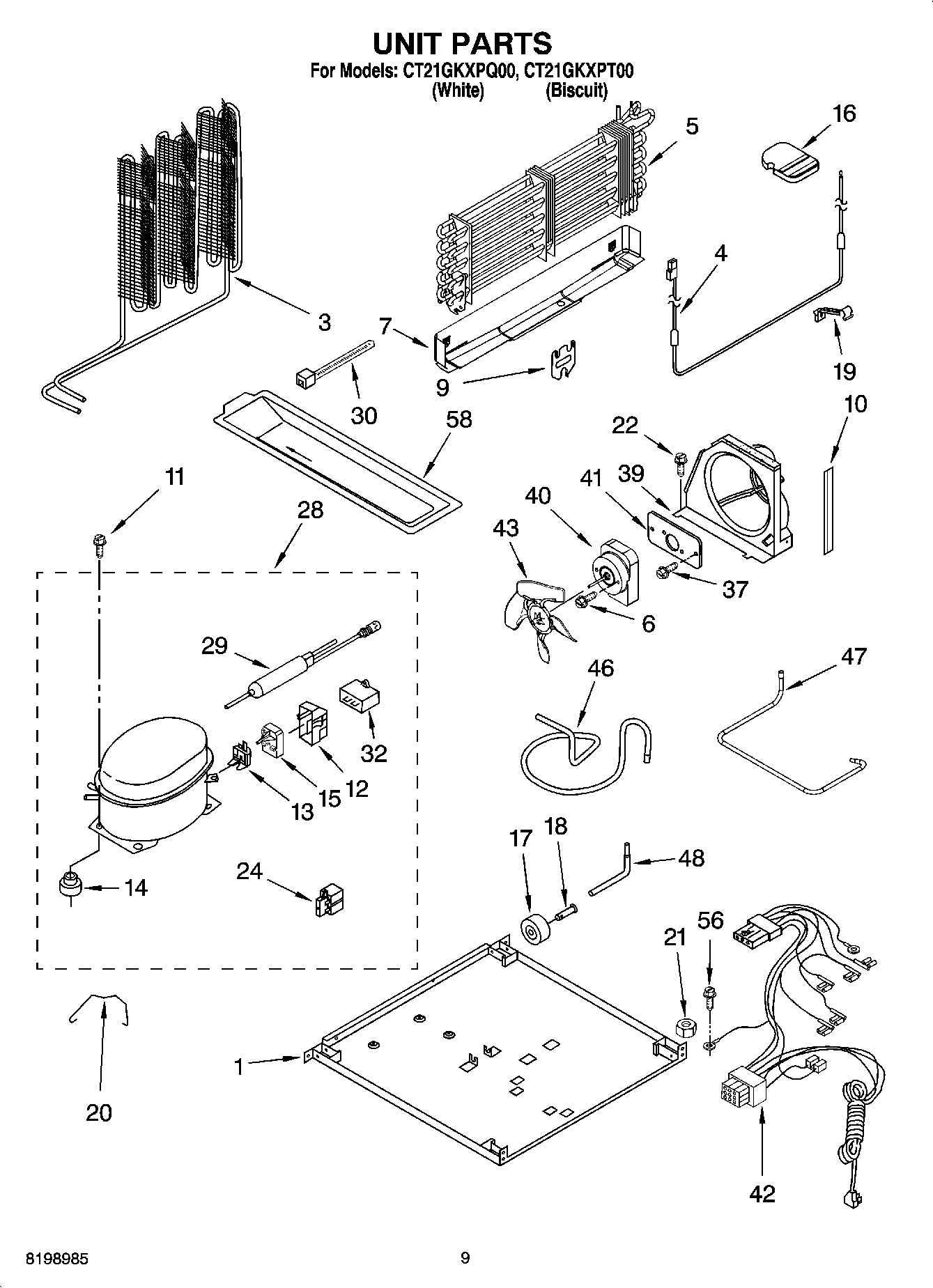

CT21GKXPQ00 06 – UNIT PARTS, OPTIONAL PARTS

CT21GKXPQ00 06 – UNIT PARTS, OPTIONAL PARTS

Written by

in

CT21GKXPQ00 06 – UNIT PARTS, OPTIONAL PARTS

Products

PositionProduct
72032 Whirlpool Touch Up Paint Black
WPL ARI22424A1
WPL ARI22423A8
WP505587 Whirlpool Refrigerator Sealer
WPL ARI22422A2
WP542638 Whirlpool Refrigerator Grease
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
285006 Whirlpool Spray
WP503695 Whirlpool Refrigerator Sealer
WPL ARI22425A4
876370 Whirlpool Refrigerator Insulation
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
4392901 Whirlpool Biscuit Spray Paint
WPL ARI22426A3
350956 Whirlpool Spray Assembly
212643 Whirlpool Refrigerator Permagum Sealer
350930 Whirlpool White Spray Paint
833938 Whirlpool Refrigerator Terminal
606755 Whirlpool Refrigerator Bag
511873 Whirlpool Refrigerator Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
1Plate, Unit Mounting
3WP2214960 Whirlpool Refrigerator Condenser
4WP2315530 Whirlpool Refrigerator Heater
5EVAPORATOR ASSY.
68281197 Whirlpool Refrigerator Screw
7Drain Pan
9Bracket, Heater
10Extension, Air Baffle
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2214067 Whirlpool Refrigerator Overload Relay
14876811 Whirlpool Grommet
14WP4387558 Whirlpool Refrigerator Compressor Grommet
15WP2225785 Whirlpool Refrigerator Start Device
16Support Block
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
202212996 Whirlpool Refrigerator Retainer
21Nut (Not Serviced)
223400518 Whirlpool Oven Foot Mount Screw
24W10920279 Whirlpool Refrigerator Start Relay
28W10309988 Whirlpool Refrigerator Compressor
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
32WPW10662129 Whirlpool Refrigerator Run Capacitor
37WP8281196 Whirlpool Screw
39Air Baffle
40W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
41Plate
422187382 Whirlpool Refrigerator Wire Harness
43W11458267 Whirlpool Refrigerator Fan Blade
46Tube, Discharge
47Tube, Suction
482154109 Whirlpool Refrigerator Tube
56WP489128 Whirlpool Refrigerator Screw
58Following Parts Not Illustrated and Optional Parts Not Included
58VALVE, ACCESS (5/8“)
58876764 Whirlpool Refrigerator Primary Valve
58978026 Whirlpool Refrigerator Primary Valve
58978027 Whirlpool Refrigerator Primary Valve
58978030 Whirlpool Refrigerator Valve
588201826 Whirlpool Refrigerator Evaporator Tray
58WP978025 Whirlpool Refrigerator Valve
58VALVE, ACCESS (1/2“)
58REFRIGERANT CHARGE 4.0 Ozs. (R134A)
