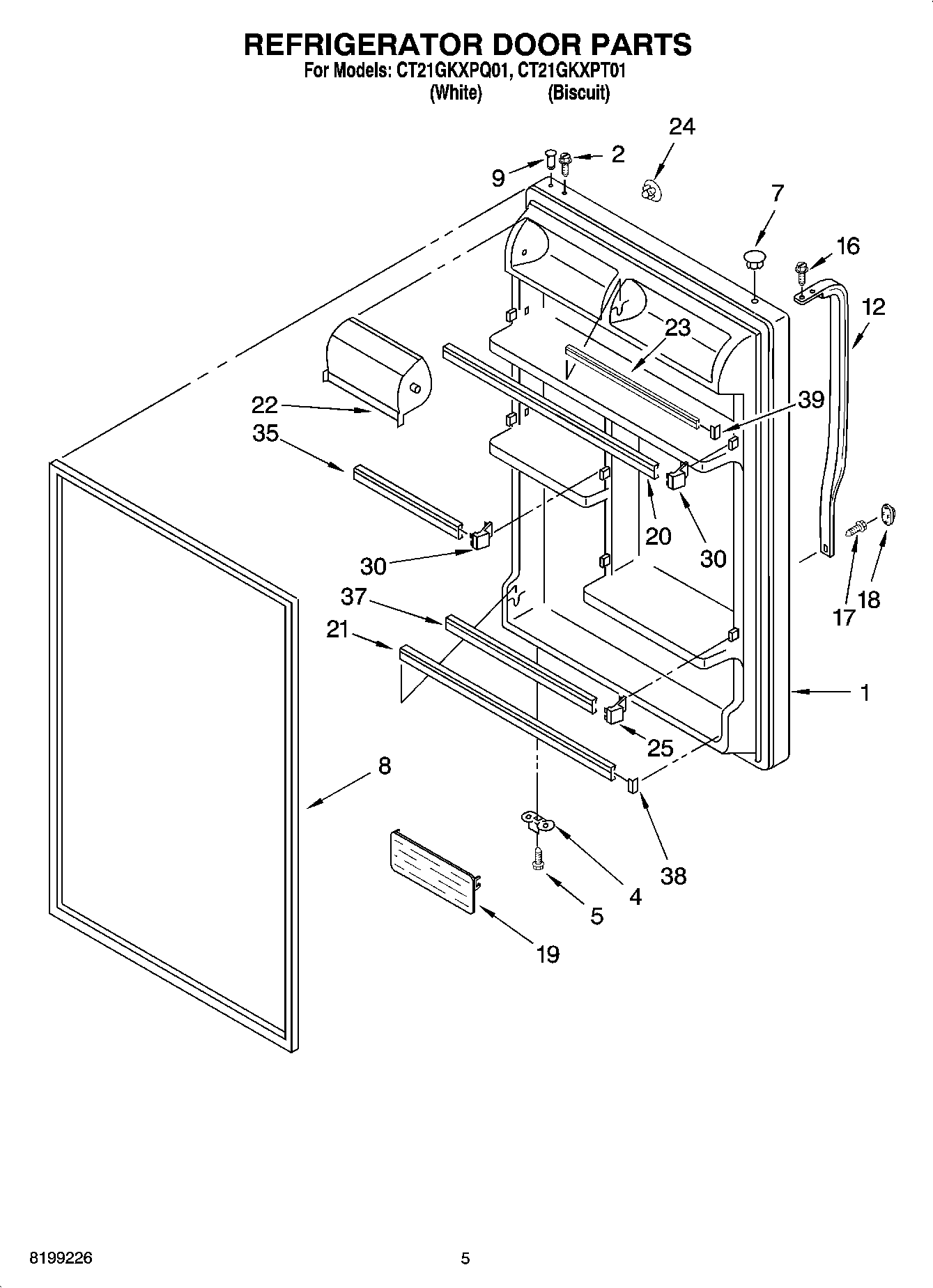

CT21GKXPT01 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes No.8 & No.9) (Biscuit)
1	Refrigerator Door (Includes 8 & 9) (White)
2	WP8281206 Whirlpool Refrigerator Screw
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
7	WP2212649 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2159061 Whirlpool Refrigerator Door Gasket
9	WP2183003 Whirlpool Thimble
12	WP2202807W Whirlpool Handle Door
12	Handle Center (Biscuit)
16	WP489357 Whirlpool Recessed Screw
17	WP8281146 Whirlpool Screw
18	WP2202819W Whirlpool Refrigerator Cover
18	Cover, Screw (Biscuit)
19	WP2188236 Whirlpool Refrigerator Shelf Door
21	WPW10421486 Whirlpool Refrigerator Door Trim
22	WP2218118 Whirlpool Refrigerator Door Compressor
23	TRIM-DOOR
24	WP2189000 Whirlpool Refrigerator Handle Plug
24	WP2200936 Whirlpool Refrigerator Handle Plug
25	WP2195915 Whirlpool Door Shelf Support
30	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
35	WP2201062 Whirlpool Refrigerator Door Trim
37	WP2195943 Whirlpool Shelf Retainer Bar
38	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
39	ENDCAP-TRM
