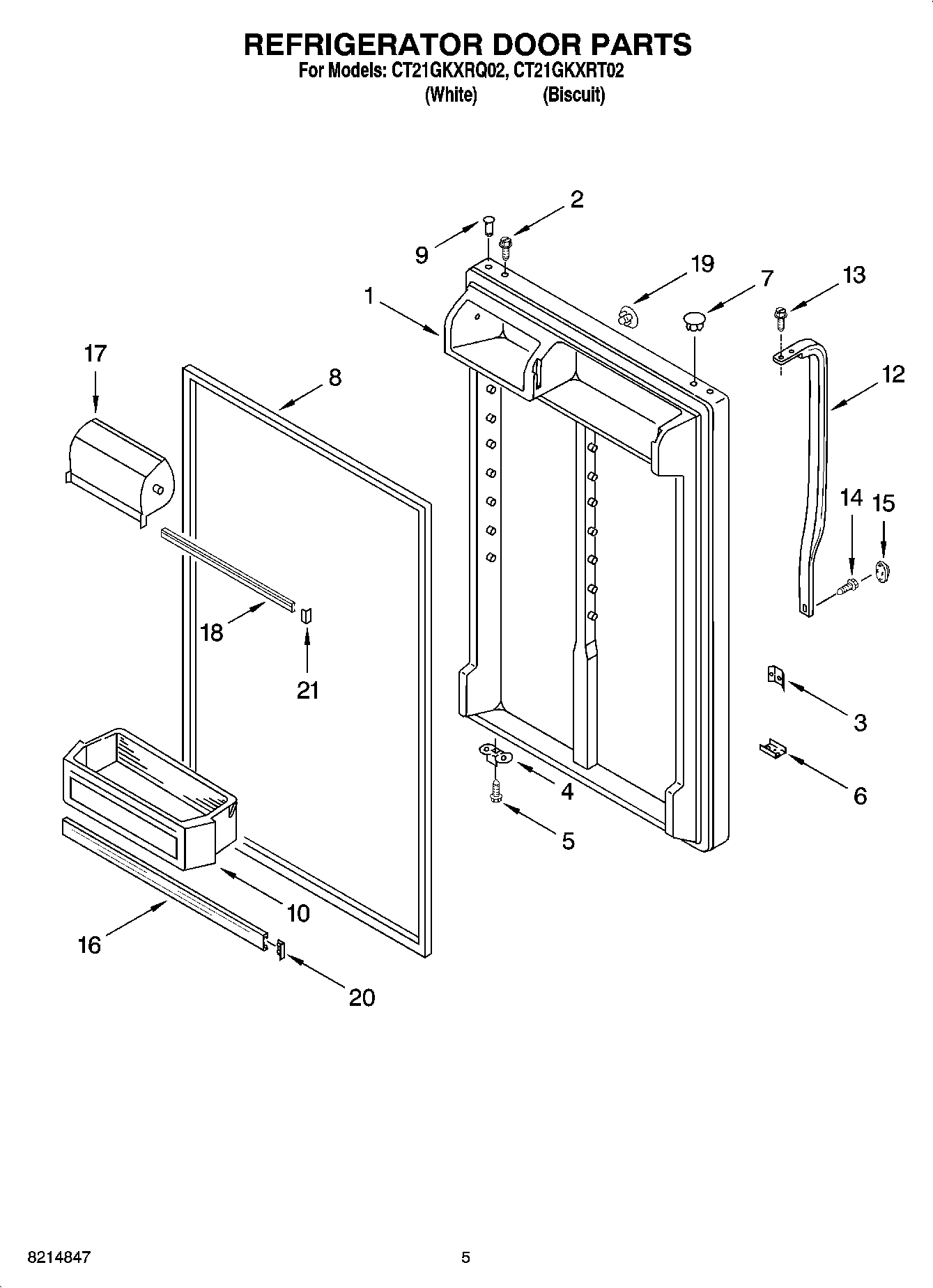

CT21GKXRQ02 04 – REFRIGERATOR DOOR PARTS

CT21GKXRQ02 04 – REFRIGERATOR DOOR PARTS

Written by

in

CT21GKXRQ02 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W11023688 Whirlpool Refrigerator Door Assembly
1W11023679 Whirlpool Refrigerator Door Assembly
2WP8281206 Whirlpool Refrigerator Screw
3WP939101 Whirlpool Refrigerator Plate
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6W10833053 Whirlpool Refrigerator Plate
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82159061 Whirlpool Refrigerator Door Gasket
9WP2183003 Whirlpool Thimble
10WP2204812 Whirlpool Refrigerator Door Bin
12WP2202807W Whirlpool Handle Door
12Handle Center (Biscuit)
13WP489357 Whirlpool Recessed Screw
14WP8281146 Whirlpool Screw
15WP2202819W Whirlpool Refrigerator Cover
15Cover, Screw (Biscuit)
16WPW10421486 Whirlpool Refrigerator Door Trim
17WP2218118 Whirlpool Refrigerator Door Compressor
18TRIM-DOOR
19WP2189000 Whirlpool Refrigerator Handle Plug
19WP2200936 Whirlpool Refrigerator Handle Plug
20WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
21ENDCAP-TRM
