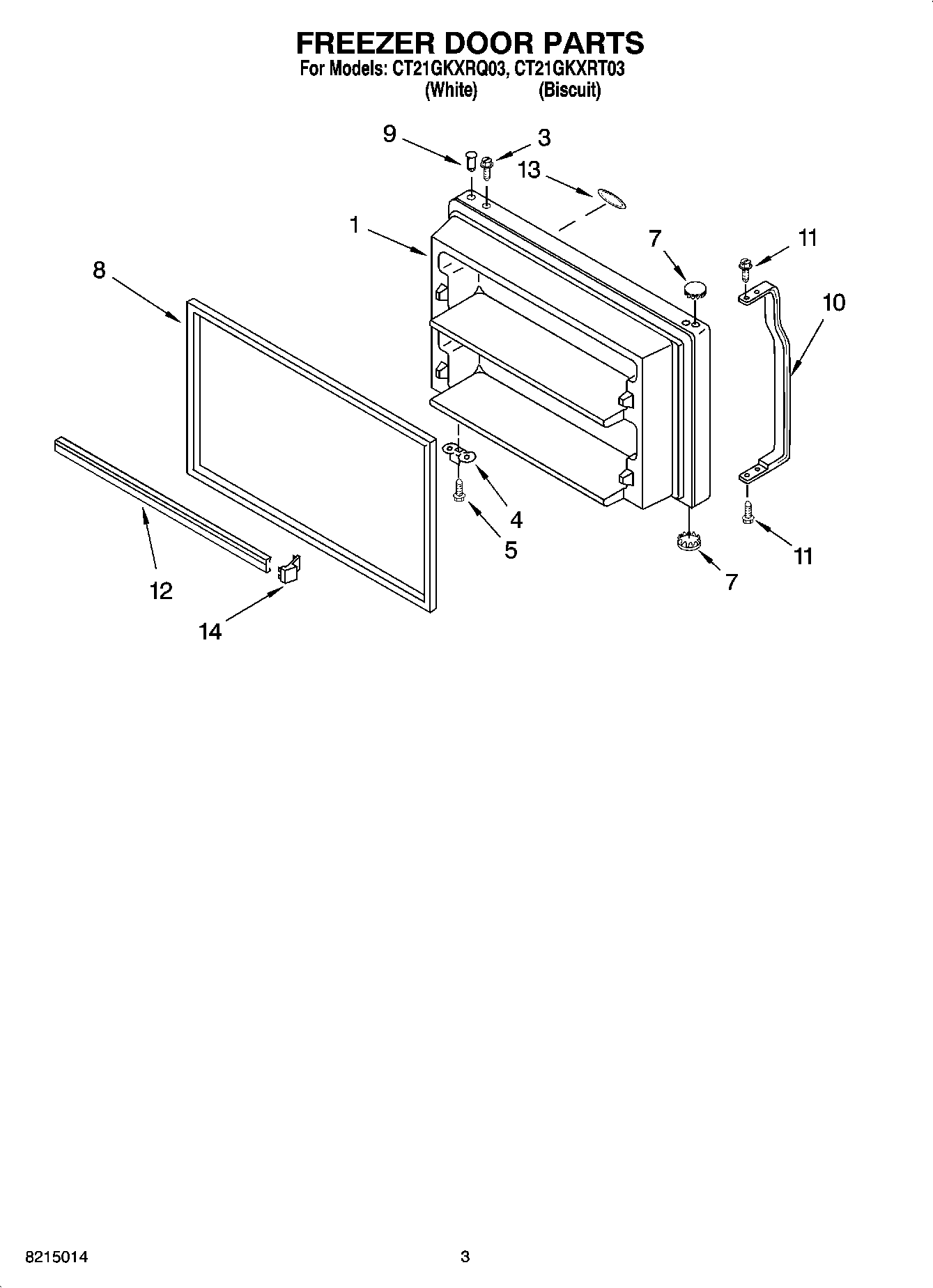

CT21GKXRQ03 02 – FREEZER DOOR PARTS

CT21GKXRQ03 02 – FREEZER DOOR PARTS

Written by

in

CT21GKXRQ03 02 – FREEZER DOOR PARTS

Products

PositionProduct
1W11023688 Whirlpool Refrigerator Door Assembly
1W11023679 Whirlpool Refrigerator Door Assembly
3WP8281206 Whirlpool Refrigerator Screw
4W11745278 Whirlpool Bracket
5WP681249 Whirlpool Screw Assembly
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7WP2212649 Whirlpool Refrigerator Button Plug
8WHITE DOOR GASKET-FIP
9WP2314293 Whirlpool Refrigerator Thimble
10WP2202806W Whirlpool Refrigerator Handle
10Handle, F.C. (Biscuit)
118534058 Whirlpool Refrigerator Screw
12Trim, Door Shelf (2)
13Nameplate (Biscuit)
13Nameplate (White)
14ENDCAP
