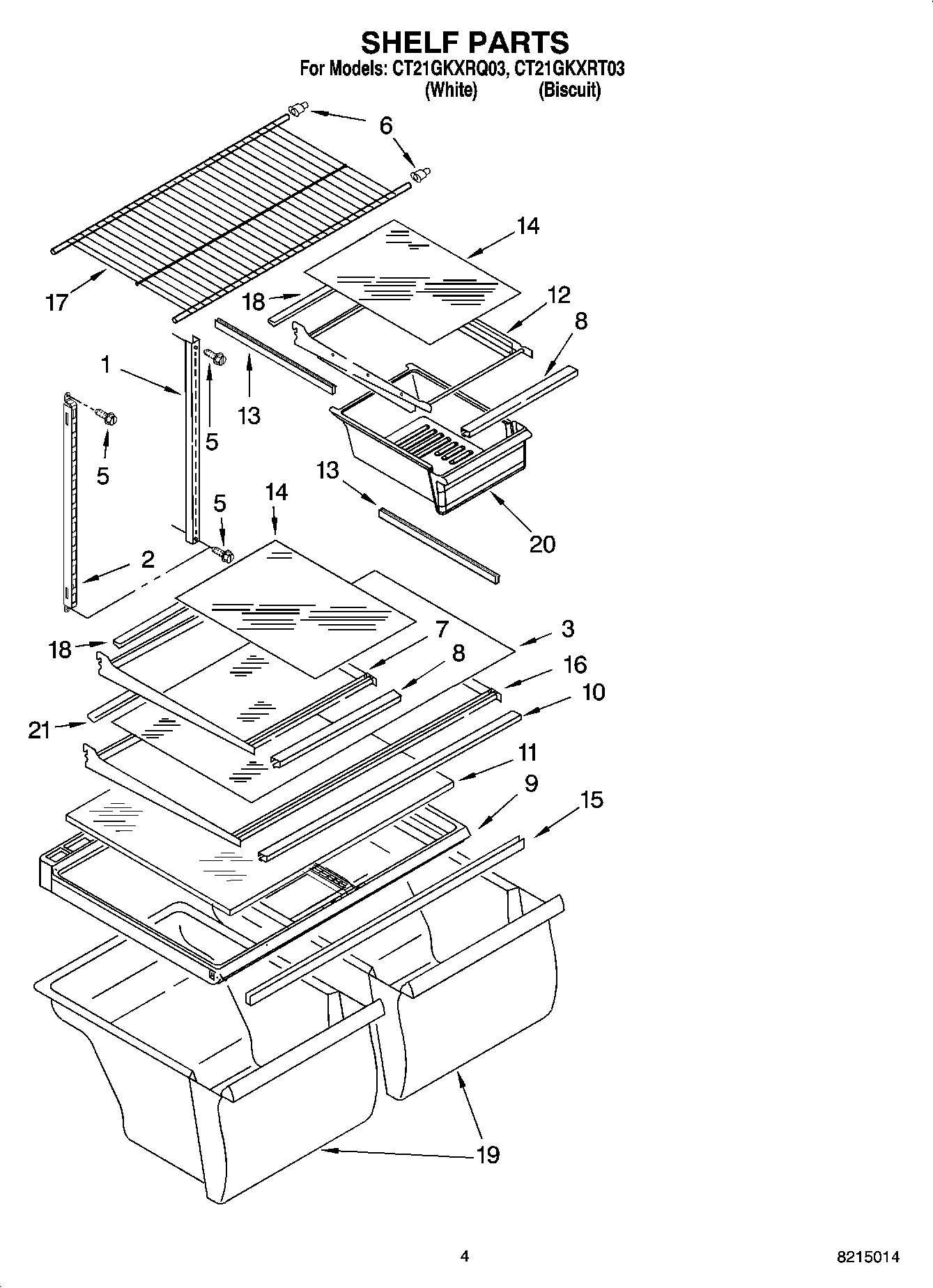

CT21GKXRQ03 03 – SHELF PARTS

CT21GKXRQ03 03 – SHELF PARTS

Written by

in

CT21GKXRQ03 03 – SHELF PARTS

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder Center
3Glass, Full Shelf
5WP489478 Whirlpool Refrigerator Screw
62163762 Whirlpool Refrigerator Cup Assembly
7Shelf, Cantilever
8Trim, Shelf Front
9WP2314549 Whirlpool Refrigerator Cover
10TRIM, SHELF FRONT
11WP2176225 Whirlpool Glass Shelf
12Pan, Shelf Cantilever
13Trim, Shelf Side
14Glass, Shelf
15WP2172748 Whirlpool Drawer Support
16Shelf, Full Cantilever
17Shelf, Freezer
18WP2188689 Whirlpool Refrigerator Shelf Trim
19W10854037 Whirlpool Refrigerator Crisper Pan
20WP2218132K Whirlpool Crisper Meat Pan
