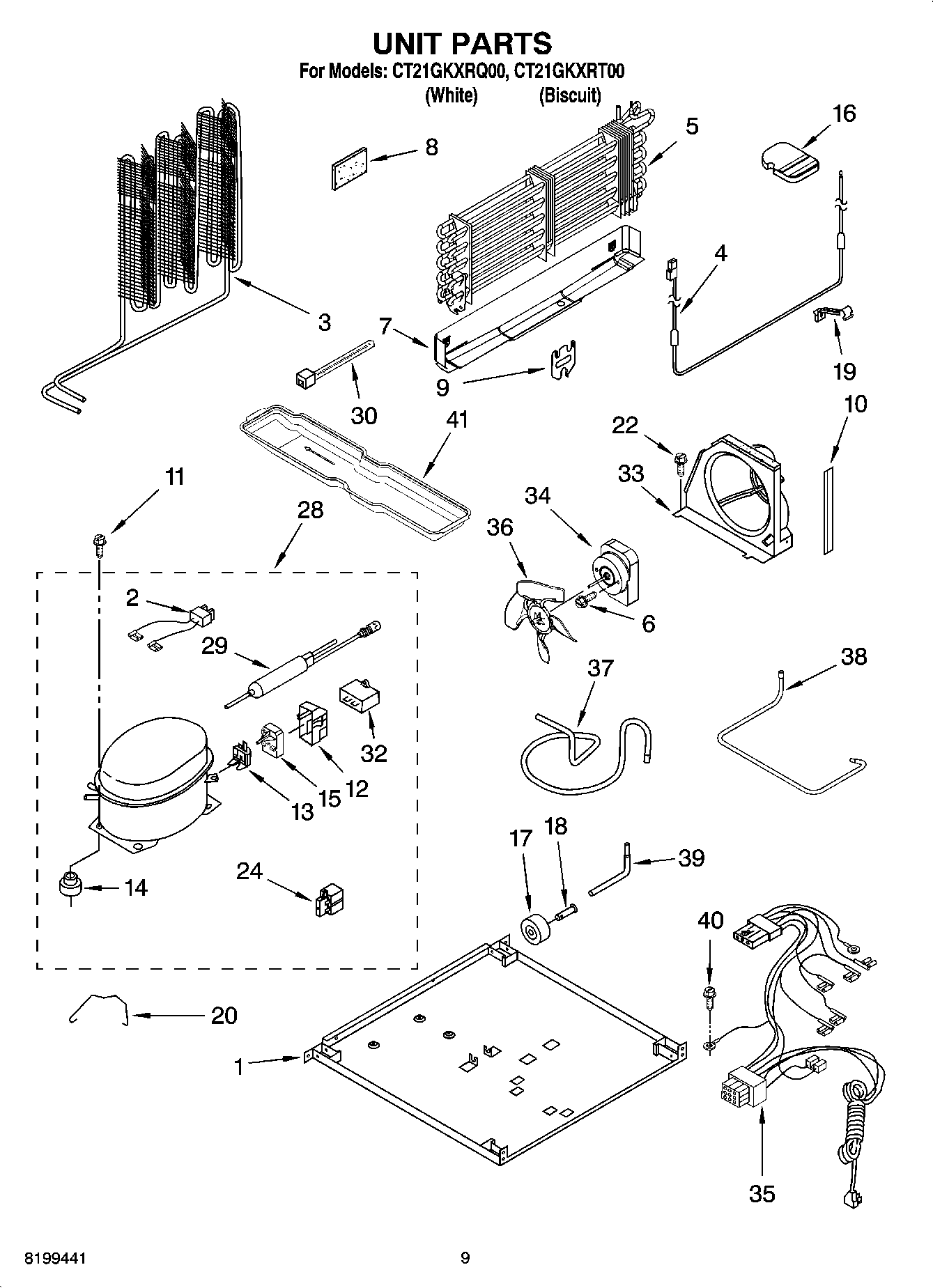

CT21GKXRT00 06 – UNIT PARTS, OPTIONAL PARTS

CT21GKXRT00 06 – UNIT PARTS, OPTIONAL PARTS

Written by

in

CT21GKXRT00 06 – UNIT PARTS, OPTIONAL PARTS

Products

PositionProduct
285006 Whirlpool Spray
WPL ARI22559A2
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
TAPE, VINYL (3/4 X 108“)
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
72032 Whirlpool Touch Up Paint Black
WP503695 Whirlpool Refrigerator Sealer
WPL ARI22555A9
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL ARI22558A9
WPL ARI22557A6
WPL ARI22556A9
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
876370 Whirlpool Refrigerator Insulation
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
1Plate, Unit Mounting
2WP2172890 Whirlpool Refrigerator Wire
3WP2214960 Whirlpool Refrigerator Condenser
4WPW10140847 Whirlpool Refrigerator Heater
5EVAPORATOR ASSY.
6WPW10171469 Whirlpool Refrigerator Screw
7Drain Pan
8W11553819 Whirlpool Refrigerator Insulation
9Bracket, Heater
10Extension, Air Baffle
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2214067 Whirlpool Refrigerator Overload Relay
14876811 Whirlpool Grommet
14WP4387558 Whirlpool Refrigerator Compressor Grommet
15WP2225785 Whirlpool Refrigerator Start Device
16Support Block
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
202212996 Whirlpool Refrigerator Retainer
223400518 Whirlpool Oven Foot Mount Screw
24W10920279 Whirlpool Refrigerator Start Relay
28W10309988 Whirlpool Refrigerator Compressor
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
32WPW10662129 Whirlpool Refrigerator Run Capacitor
33Air Baffle
34WP2188874 Whirlpool Refrigerator Condenser Motor
352187382 Whirlpool Refrigerator Wire Harness
36W11458267 Whirlpool Refrigerator Fan Blade
37Tube, Discharge
38Tube, Suction
392154109 Whirlpool Refrigerator Tube
40WP489128 Whirlpool Refrigerator Screw
41VALVE, ACCESS (5/8“)
41VALVE, ACCESS (1/2“)
41WP978025 Whirlpool Refrigerator Valve
41REFRIGERANT CHARGE 4.0 Ozs. (R134A)
41Following Parts Not Illustrated and Optional Parts Not Included
41978030 Whirlpool Refrigerator Valve
418201826 Whirlpool Refrigerator Evaporator Tray
41978027 Whirlpool Refrigerator Primary Valve
41978026 Whirlpool Refrigerator Primary Valve
41876764 Whirlpool Refrigerator Primary Valve
