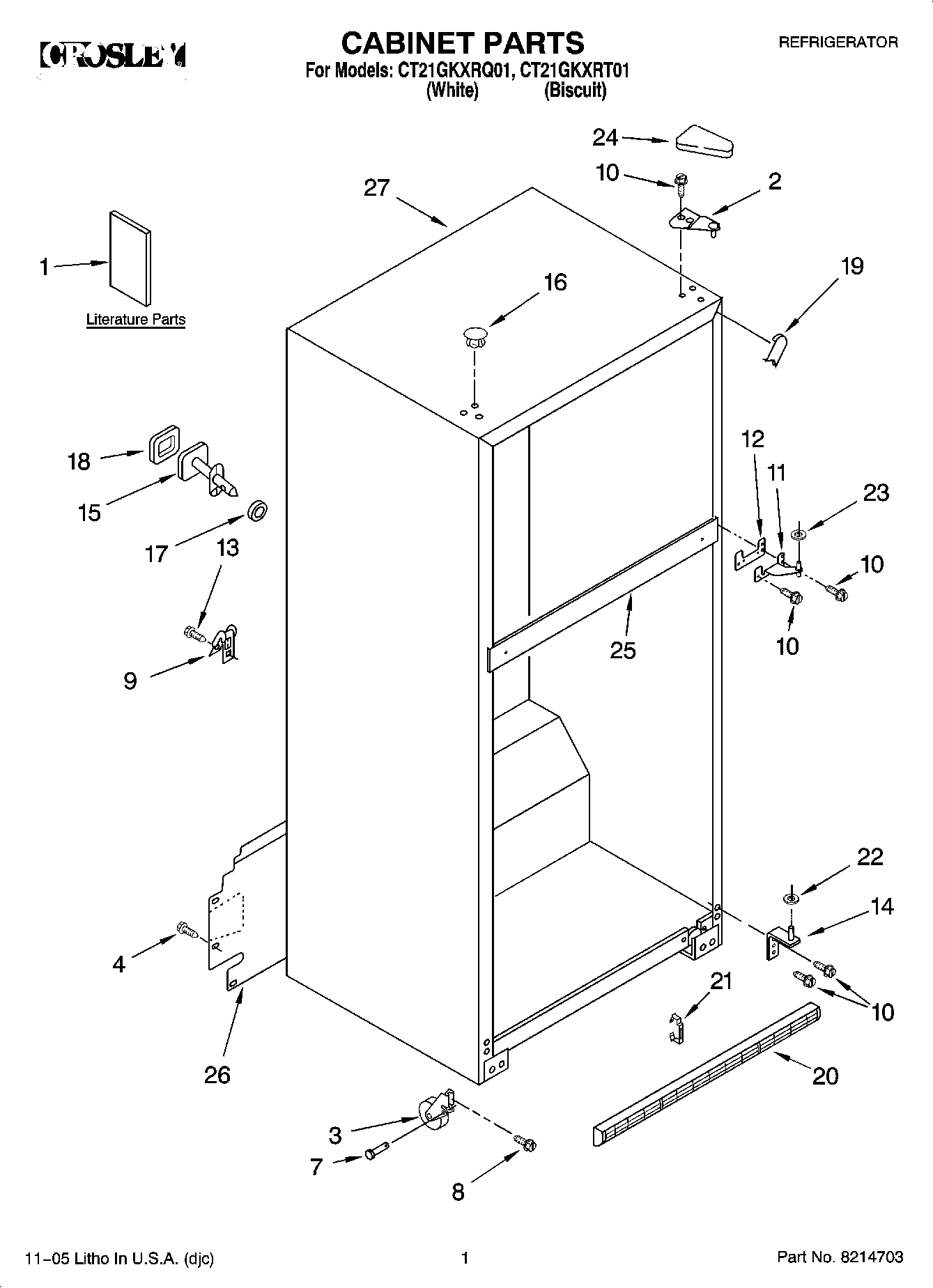

CT21GKXRT01 01 – CABINET PARTS

Products

Position	Product
1	Customer Instructions
1	Energy Label
1	Use & Care Guide
1	Service & Wiring Sheet
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	WP489427 Whirlpool Refrigerator Screw
7	W11594405 Whirlpool Axle
8	WP3400504 Whirlpool Refrigerator Screw
9	549193 Whirlpool Refrigerator Power Clamp
10	WP489497 Whirlpool Screw
11	WP2254618 Whirlpool Center Door Hinge
12	WP2183854 Whirlpool Refrigerator Shim
13	WP489464 Whirlpool Refrigerator Screw
14	WP2254473 Whirlpool Refrigerator Door Hinge
15	Fitting, Water Tube (Not Serviced)
16	WP2151652 Whirlpool Refrigerator Button Plug
16	Hole Plug (6) (Biscuit)
17	Seal, Front (Not Serviced)
18	Seal, Rear (Not Serviced)
19	W10283958 Whirlpool Refrigerator Filler
19	WPW10283959 Whirlpool Refrigerator Filler
20	Grille (White)
20	Grille (Biscuit)
21	CLIP, GRILLE
22	WP487576 Whirlpool Washer
23	WP489467 Whirlpool Hinge Shim
24	2213364 Whirlpool Refrigerator Cover
24	WP2213360 Whirlpool Refrigerator Cover
25	Rail Center (Not Serviced)
26	Cover, Unit
27	Cabinet (Not A Serviceable Part)
