CT21GKXRT01 02 – FREEZER DOOR PARTS

CT21GKXRT01 02 – FREEZER DOOR PARTS

Written by

in

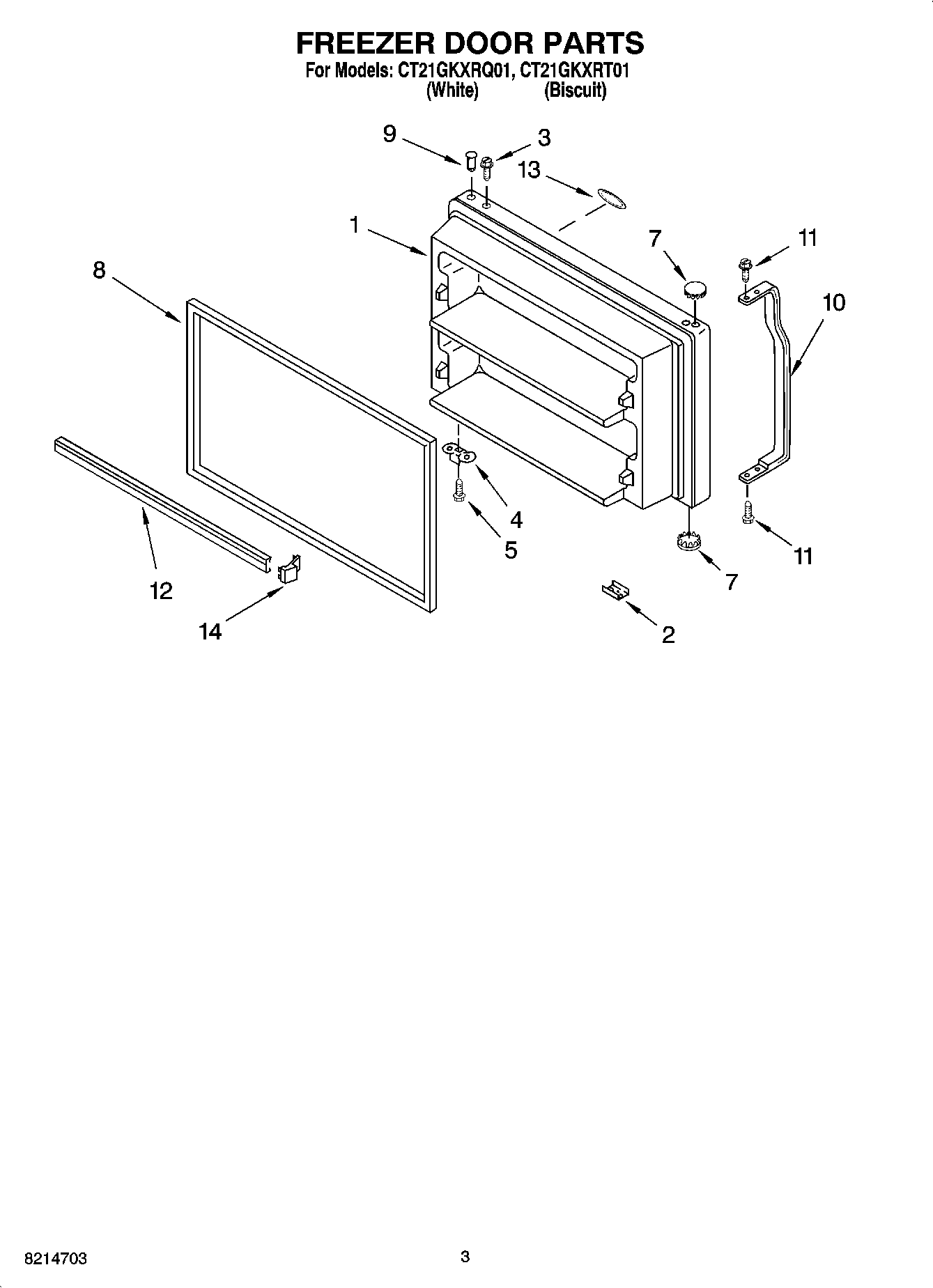

CT21GKXRT01 02 – FREEZER DOOR PARTS

Products

PositionProduct
1W11023688 Whirlpool Refrigerator Door Assembly
1W11023679 Whirlpool Refrigerator Door Assembly
2W10833053 Whirlpool Refrigerator Plate
3WP8281206 Whirlpool Refrigerator Screw
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8WHITE DOOR GASKET-FIP
9WP2183003 Whirlpool Thimble
10WP2202806W Whirlpool Refrigerator Handle
10Handle, F.C. (Biscuit)
11WP489357 Whirlpool Recessed Screw
12Trim, Door Shelf (2)
13Nameplate (Biscuit)
13Nameplate (White)
14ENDCAP
