CT9570SL1SS CONTROL PANEL

CT9570SL1SS CONTROL PANEL

Written by

in

CT9570SL1SS CONTROL PANEL

Products

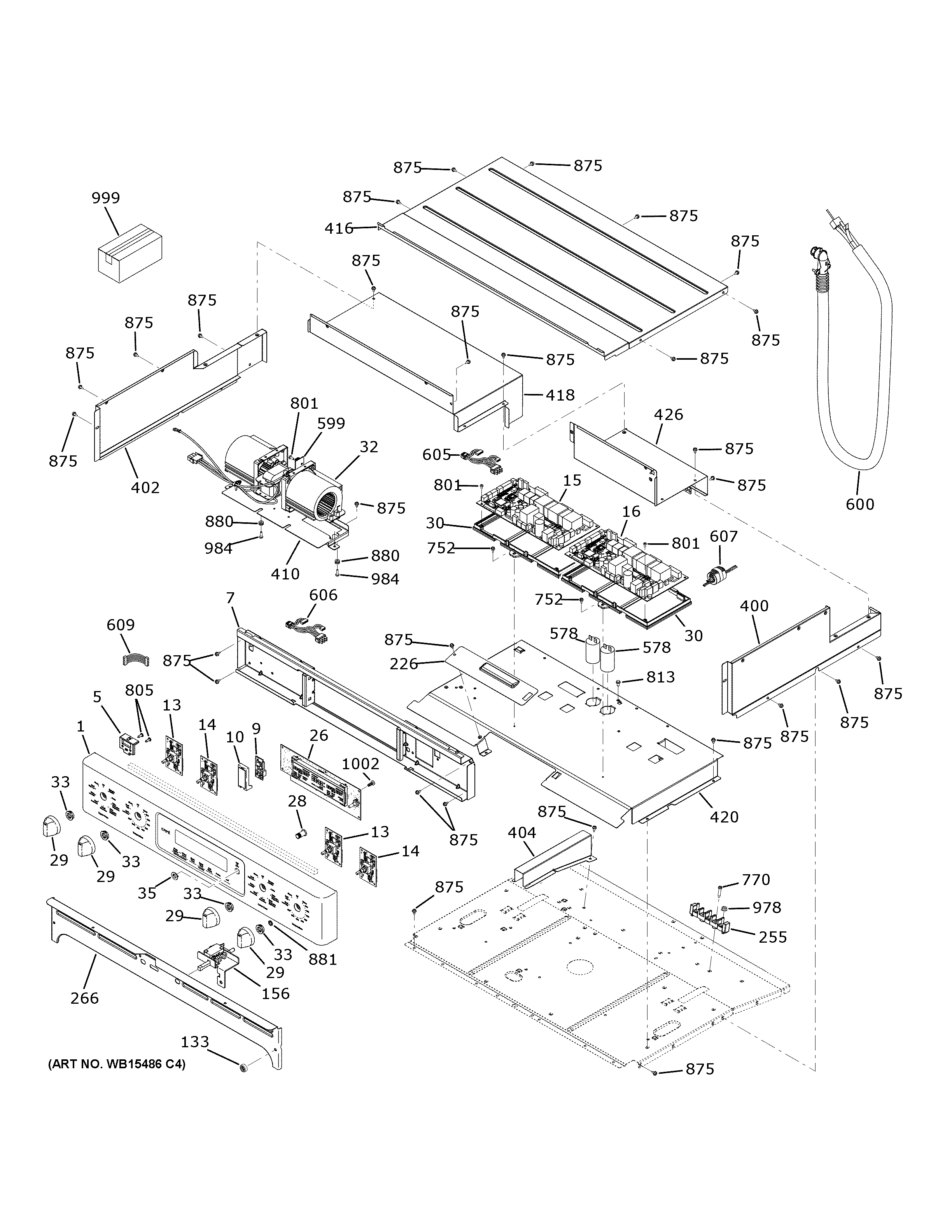

PositionProduct
1LABEL WIRE DIAGRAM
1WB56X28537 GE Control Panel and Frame Assembly
5WB34X29268 GE Oven Control Panel Support Bracket
7WB34X28389 GE Oven Bracket Control Panel Mounting
9WB27X33353 GE Wi-Fi Module Kit
10WB02X20265 GE Transceiver Housing
13WB27X24643 GE Oven UI Knob Board
14WB27X24642 GE Oven UI Board Knob
15WB27X30700 GE Oven Control Board Assembly
16WB27X30701 GE Oven Machine Control Board
26WB27X28530 GE Oven UI Display Board
28WB03X23783 GE Timer Knob
29WB03X28536 GE Range Brushed Stainless Steel Knob
30WB02X20274 GE Plastic Frame Board
32WB26X24020 GE Range Cooling Fan
33GEN WB02T10305
35WB01X23782 GE Control Panel Bushing
133WB03T10341 GE Oven Door Bumper
156WB24X23760 GE Oven Switch Plate Assembly
226WB34T10161 GE Access Latch Cover
255WB17K10001 GE Oven Block Terminal
266TRIM VENT UPR
400COVER TOP RIGHT EDGE
402WB44T10126 GE Oven Top Left Edge Cover
404WB34T10150 GE Upper Air Vent Channel
410WB37T10026 GE Oven Upper Fan Mount Bracket
416WB34X28390 GE Oven Front Cover Housing
418WB34X32773 GE Rear Top Cover Kit
420DIVIDER AIR
426WB35T10273 GE Oven Rear Wire Cover
578WB27T10662 GE Oven Capacitor
599WB27T11463 GE Oven Fan Sensor Board
600WB18T10580 GE Oven 6 FT Optional Conduit
600WB18T10573 GE Oven Wire Assembly Conduit
605WB18X23749 GE Oven Main Wire Harness
606HARNESS WIRE LATCH COM
606WB18X23787 GE Latch Wire Harness
607WB18X23610 GE Wire Harness Assembly
609WB18X23784 GE Wall Glass Touch Wire Harness
752WB1K5200 GE Oven Screw 340531
770WB1K5072 GE Oven Screw
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
805WB1K5062 GE Oven Screw
813WS02X10087 GE Screws 10-32 GX HXW 7/16 S
875WH2X930 GE Screw
880WB01T10128 GE Grommet
881WB01T10099 GE Oven Nut
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999MANUAL U&C TIP SHEET
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999PM WI FI INSTRUCTIONS
999PM MANUAL USE & CARE
999WB02T10303 GE Cleaner Lubricant
999PM MANUAL MINI & WD ASM
1002WR01X10791 GE Scr 8-18 B Pnp 3/8 S Zn
