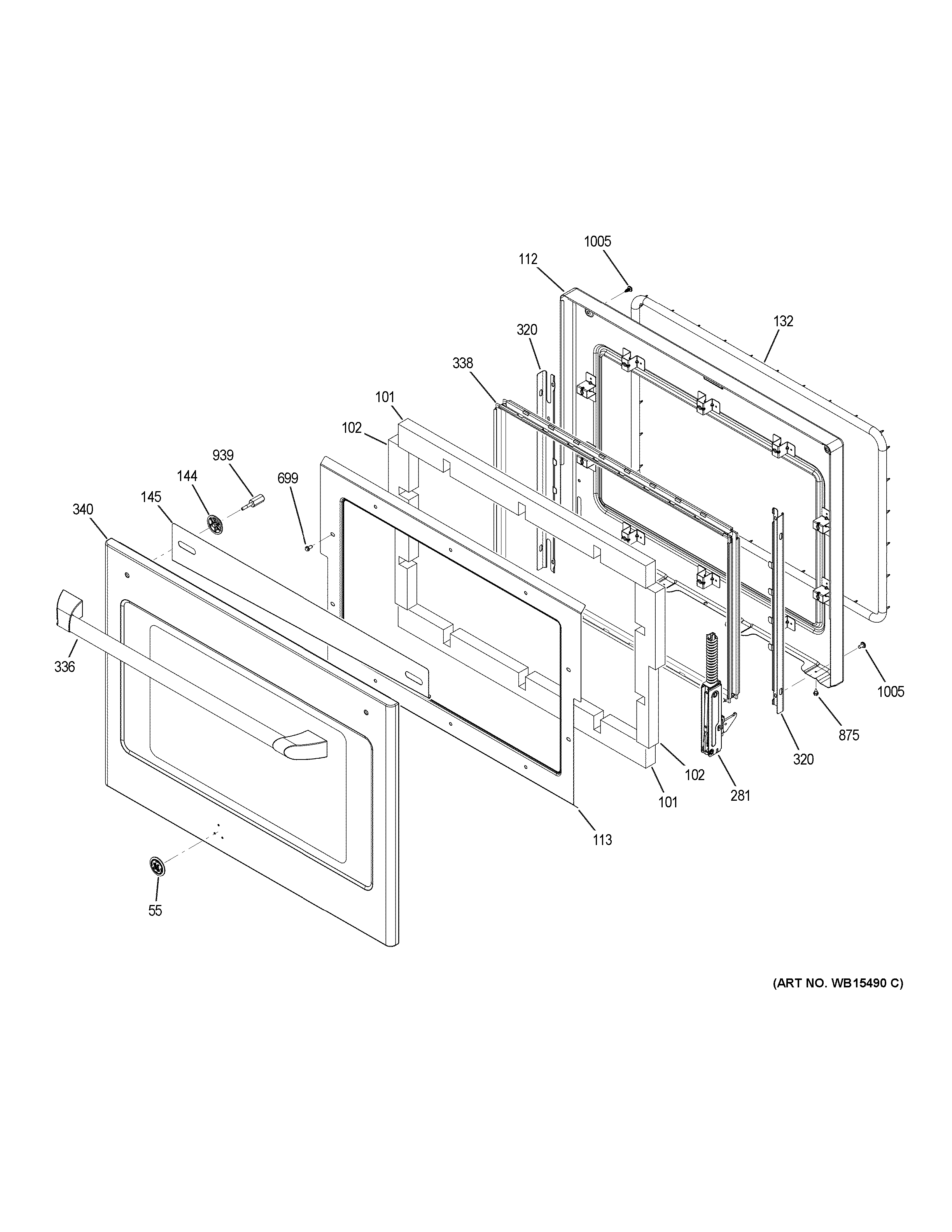

CT9570SL2SS LOWER DOOR

Products

PositionProduct
55WB02X29479 GE Oven Badge Assembly
101INSULATION DR TOP
102WB35X31513 GE Door Side Insulation
112WB63X32818 GE Oven Liner Door Kit
113WB34X31516 GE Door Insulation Retainer
132WB35X32825 GE Oven Door Gasket
144WB02T10524 GE Oven Door Handle Spacer
145WB34T10142 GE Oven Deflector Door
281WB10X28535 GE Door Hinge Right
281WB10X28534 GE Door Hinge Left
320LINER SUPPORT
336WB15X26001 GE Oven Handle and Endcap Assembly
338WB56X27662 GE Window Pack Assembly
340WB56X28533 GE Oven Door Glass and Trim Assembly
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
939SPACER REINFORCEMENT ASM
1005WB01T10008 GE Oven Screw 10-32
