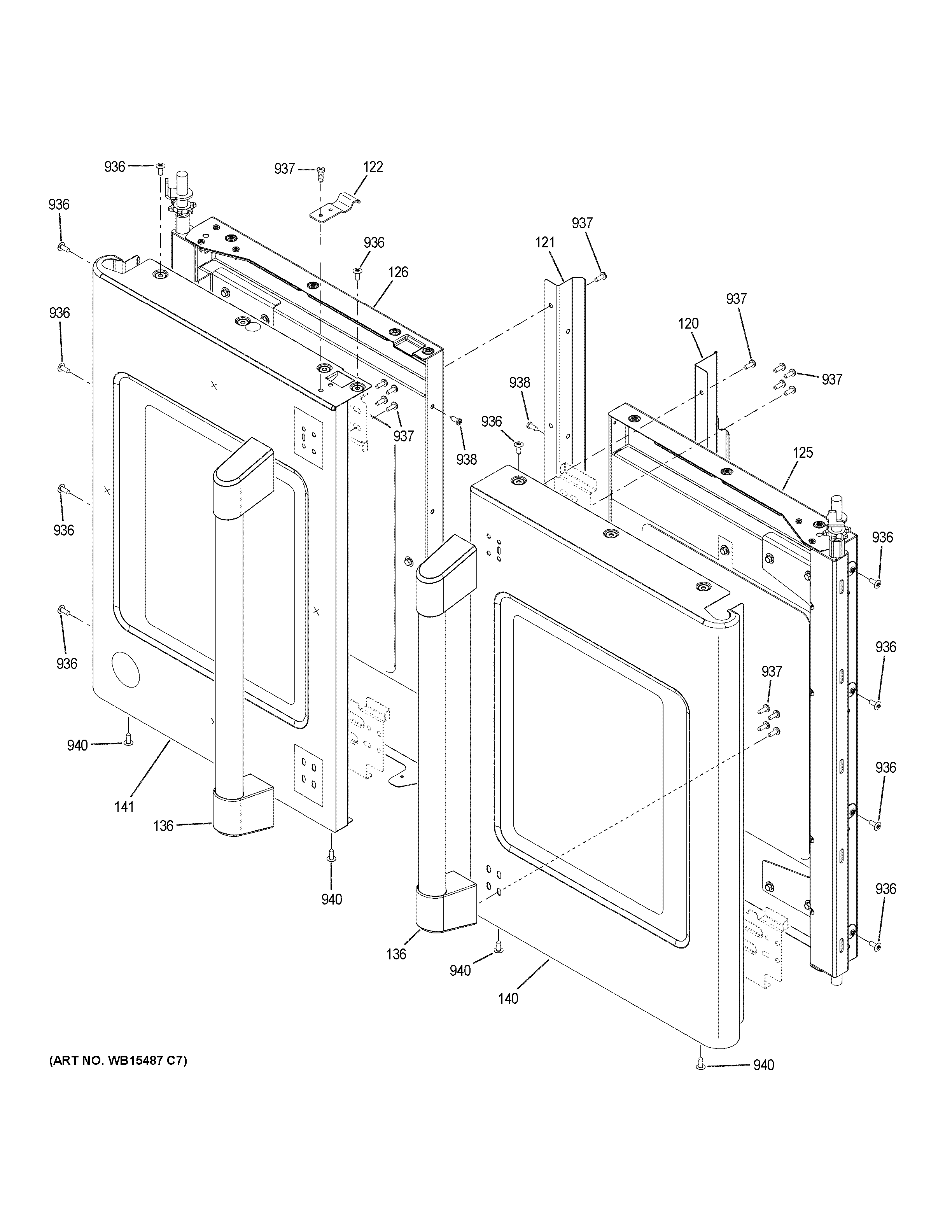

CT9570SL3SS UPPER DOORS

CT9570SL3SS UPPER DOORS

Written by

in

CT9570SL3SS UPPER DOORS

Products

PositionProduct
120WB35X23767 GE Right Center Seal
121SEAL CENTER LT
122WB10X23776 GE Strike Plate
125WB56X24543 GE Oven Door Inner Assembly RT Kit
126WB56X24544 GE Dishwasher Door Inner Assembly Kit
136HANDLE AND END CAP ASM
140DOOR GLASS AND PANEL ASM RT
141WB56X32401 GE Oven Door Glass and Panel Assembly
936WB01X24096 GE Screw 8-18X
937SCREW 8-32 MCH PNT-15 7/16
938WB01X23768 GE Screw 8-18 Ab Pnt 15 1/2
940WB1K5167 GE Screw 8-18 X 3/8"
