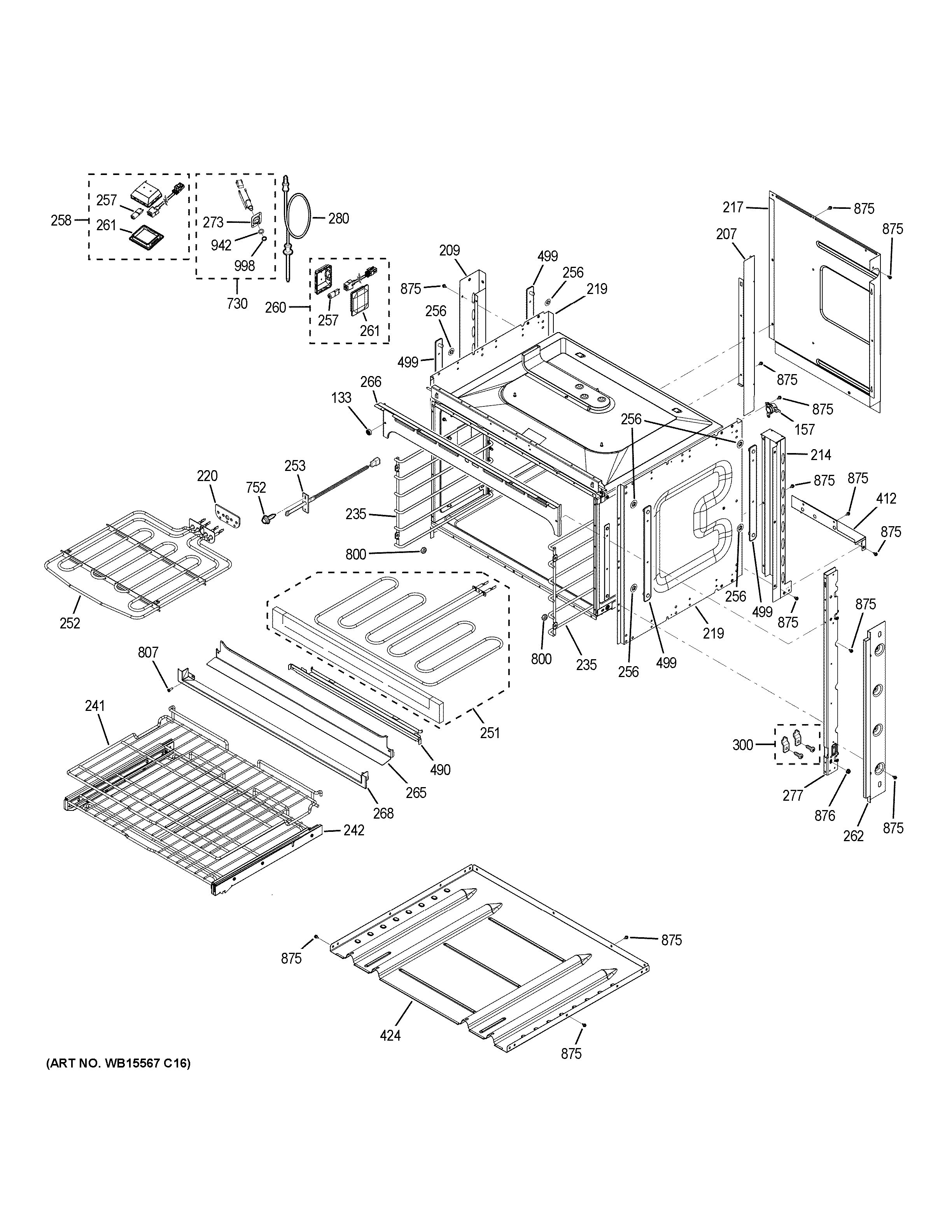

CT9800SH5SS BODY PARTS

CT9800SH5SS BODY PARTS

Written by

in

CT9800SH5SS BODY PARTS

Products

PositionProduct
133WB03T10341 GE Oven Door Bumper
157HIGH LIMIT SWITCH
207WB34T10134 GE Center Air Divider
209WB34X21910 GE Oven Rear Channel LT
214WB34X21912 GE Channel Rear Right
217WB34T10136 GE Upper Rear Duct Cover
219WB34X21913 GE Side Insulation Retainer
220WB35X21972 GE Broil Element Gasket
235WB48X21765 GE Oven Right Guide Rack
235WB48X21766 GE Oven Guide Rack Left
241WB48X23857 GE Oven Flat Rack
242WB48X21764 GE Oven Rack Slide Assembly
251WB44X21667 GE Oven Hidden Bake Element Kit
252WB44T10124 GE Oven Broil Element Assembly
253SENSOR ASM
256WB01T10107 GE Oven Bolt Retainer
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X31221 GE Oven Halogen Lamp Assembly
260WB25X31223 GE Oven Halogen Lamp Assembly
261WB34X31317 GE Oven Light Lens
262STAINLESS TRIM VERT SIDE (SWO)
265WB07X21187 GE Oven Lower Vent Trim
266WB07X21942 GE Upper Vent Trim
268WB07T10786 GE Oven Bottom Cabinet Trim
273PROBE COVER
277WB07X35692 GE Left Vertical Brace
277WB07T10754 GE Oven Vertical Right Brace Black
280WB20T10024 GE Oven Thermistor Probe
300WB49X21652 GE Oven Hinge Bracket Assembly
412WB34T10151 GE Air Duct Lower Right Cover
424WB56X43352 GE Air Duct Bottom Cover
490WB55T10197 GE Oven Hidden Bake Cover
499WB34X30789 GE Cavity Brace Assembly
730WB18X23585 GE Oven Meat Probe and Harness
752WB01X21742 GE Screw
800WB01X21270 GE Oven Rack Guide Nut
807WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
875WH2X930 GE Screw
876LOCK NUT
942WB1X5573 GE Oven Washer
998WB1X5572 GE Oven Nut
