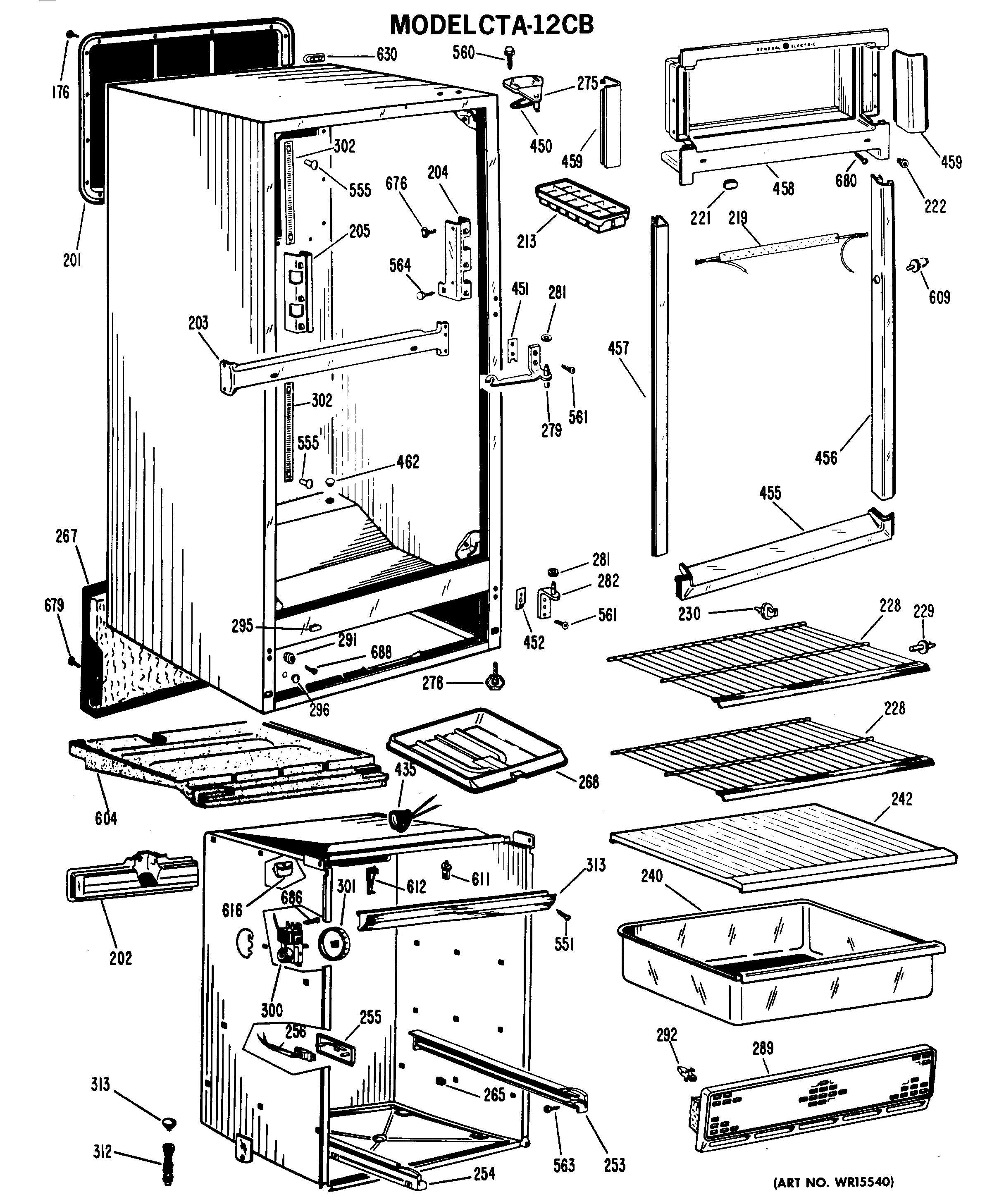

CTA12CBCR 1

CTA12CBCR 1

Written by

in

CTA12CBCR 1

Products

Position	Product
176	GEN WZ05X0166
201	BACKPLATE & TAPE ASM
201	FOAM STRIP
202	COVER LINER BACK
203	MULLION CROSSPIECE
204	SUPPORT LINER-R.S.
205	SUPPORT LINER-L.S.
213	WR30X311 GE Refrigerator Ice Tray
219	HEATER MULLION
221	BUTTON PLUG
222	GROMMET DOOR STOP
228	SHELF ASM STATIONARY
229	SUPPORT TWIST
230	SUPPORT SHELF
240	GEN WR32X5199
242	COVER PAN
253	GEN WR17X1201
254	SLIDE PAN
255	GEN WR04X5062
256	SWITCH POWER SAVER
265	GEN WR01X1326
267	GEN WR82X0204
268	GEN WR17X5810
275	HINGE TOP & PIN ASM
278	LEVELING LEG
279	HINGE CENTER-RH CAB.
281	GEN WR01X1114
281	GEN WR01X1355
282	HINGE BTM & PIN ASM
289	GRILLE O.CASE
291	GROMMET-GRILLE
292	CLIP
295	PLUG BUTTON TWIN
296	GEN WR02X3890
300	CONTROL TEMP
301	KNOB TEMP CONT
301	GEN WR02X4893
301	GEN WZ04X0407
302	PLATE STRIKE
312	TUBE DRAIN
313	TROUGH DRAIN
313	GEN WR02X3747
435	SOCKET LAMP
450	GEN WR02X4194
451	GEN WR02X2969
452	SHIM HINGE BTM.
452	GEN WR02X7011
455	BREAKER STRIP BTM
456	CLIP BRKR STRIP & FRAME
456	BREAKER STRIP-HINGE SIDE
457	BREAKER STRIP-LATCH SIDE
458	BREAKER FRAME & MULLION
459	BREAKER STRIP SIDE FZ
462	PLUG RECESSED
551	GEN WZ04X0244
555	RIVET POP
560	GEN WR01X1249
561	SCR 12-24 HXW 7/8 S PP
563	WZ4X241D GE Screw Package
564	GEN WR01X1194
604	PAN EVAP DRAIN ASM
604	GEN WR14X0275
609	SWITCH LIGHT
611	SUPPORT TWIST-COIL
612	SUPPORT TWIST-COIL
616	BRACKET EVAP MTG FF
630	WR2X4097 GE Button Plug
676	WD2X5166 GE Dishwasher Screw
679	SCR 12-14B HXW 5/8 S DP
679	SCR 8-18 AB HX 3/8 S
680	SCR 8-18 AB HX 1/2S W
686	WZ5X158D GE Screw Package of 12
688	SCR 8-15 A PA 3/4 SS
