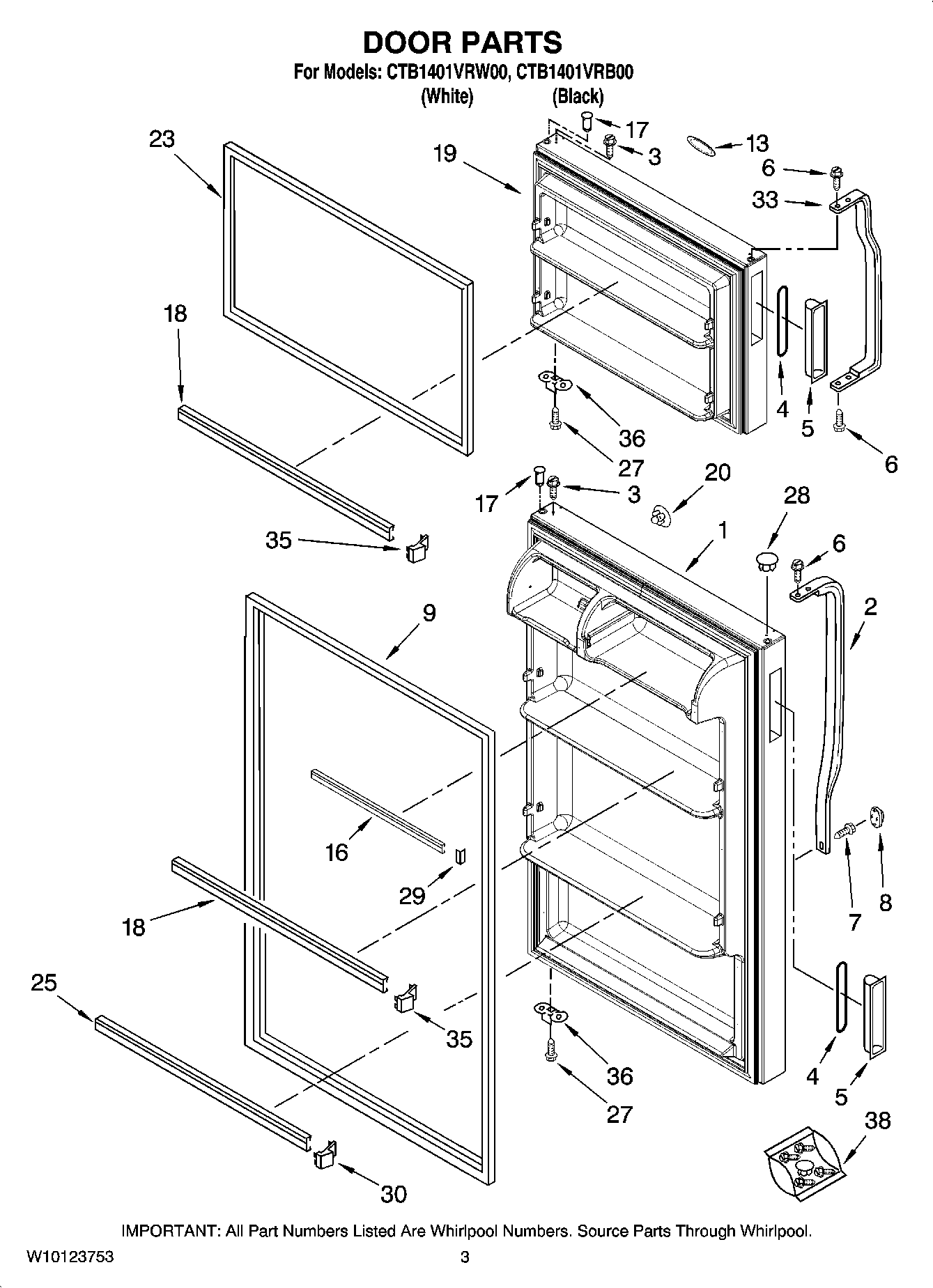

CTB1401VRB00 02 – DOOR PARTSadmin2025-04-26T10:51:17+00:00CTB1401VRB00 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Refrigerator Door Includes(9&17) (White) |
| 1 | REFRIGERATOR DOOR INCLUDES (7 & 10) (BLACK) |
| 2 | Handle, Refrigerator (White) |
| 2 | Handle, Refrigerator (Black) |
| 3 | MAY 8281206 |
| 4 | MAY 2222107 |
| 5 | HANDLE (BLACK) |
| 5 | HANDLE, SNAP-IN |
| 6 | MAY 489357 |
| 7 | MAY 8281146 |
| 8 | Screw Cover (White) |
| 8 | SCREW COVER (BLACK) |
| 9 | Door Gasket, Magnetic (Beige) |
| 9 | MAY 2264724 |
| 13 | MAY 2328563 |
| 13 | Nameplate |
| 16 | Trim, Door |
| 17 | MAY 2262054 |
| 18 | MAY 2266727 |
| 19 | FREEZER DOOR INCLUDES (10 & 14) (WHITE) |
| 19 | FREEZER DOOR INCLUDES (10 & 14) (BLACK) |
| 20 | MAY 2189009 |
| 20 | Hole Plug, Handle |
| 23 | GASKET, FC (BLACK) |
| 23 | Door Gasket, Magnetic (Beige) |
| 25 | MAY 2266738 |
| 27 | MAY 488921 |
| 28 | Hole Plug (Black) |
| 28 | MAY 2212648 |
| 29 | Plug-Trim |
| 30 | PLUG-TRIM |
| 33 | Handle, Freezer (Black) |
| 33 | Handle, Freezer (White) |
| 35 | END CAP, TRIM |
| 36 | MAY 2217944 |
| 38 | MAY 2262996 |
| 38 | MAY 2262996B |
