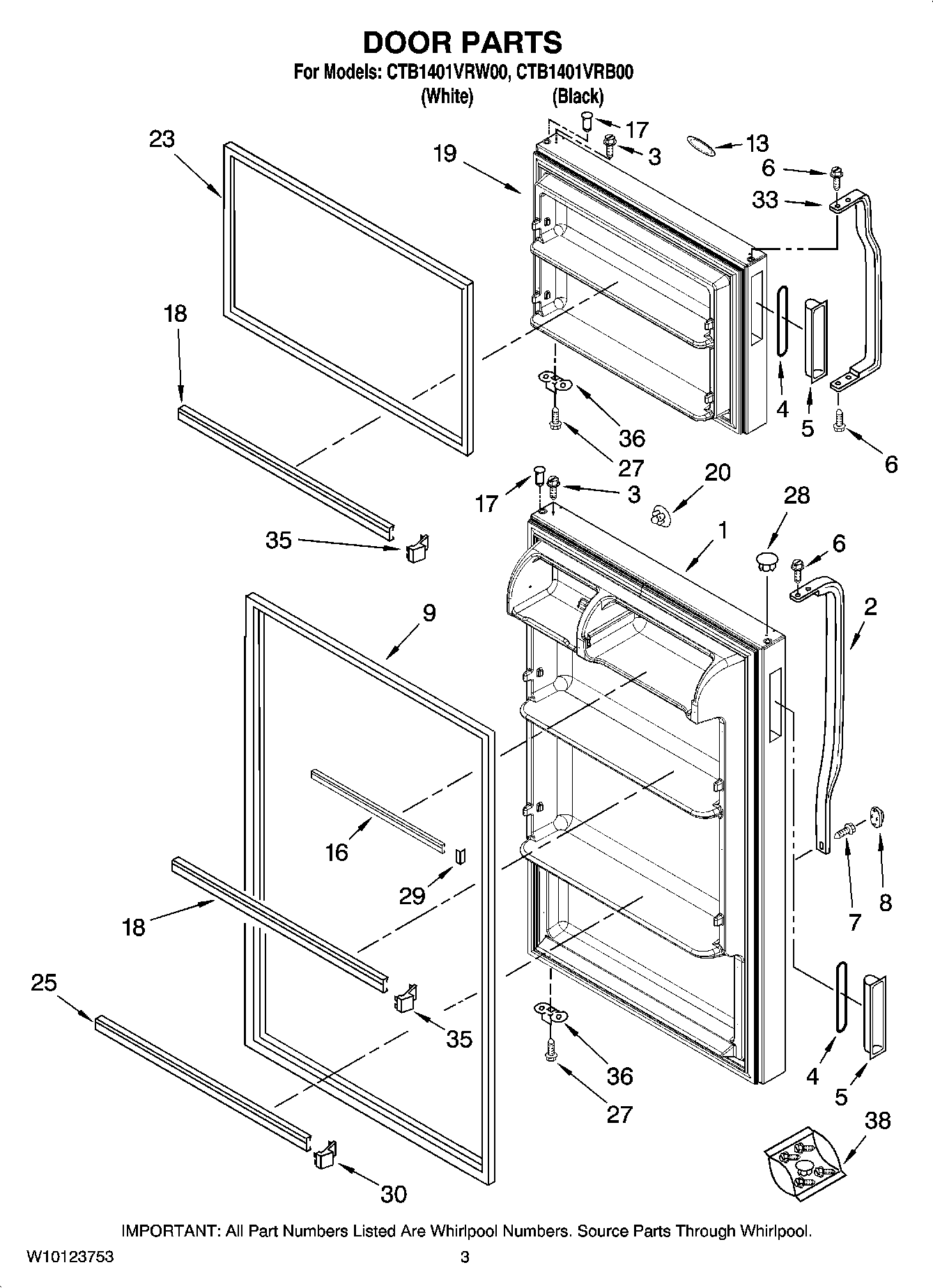

CTB1401VRW00 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door Includes(9&17) (White)
1	REFRIGERATOR DOOR INCLUDES (7 & 10) (BLACK)
2	Handle, Refrigerator (White)
2	Handle, Refrigerator (Black)
3	MAY 8281206
4	MAY 2222107
5	HANDLE (BLACK)
5	HANDLE, SNAP-IN
6	MAY 489357
7	MAY 8281146
8	Screw Cover (White)
8	SCREW COVER (BLACK)
9	Door Gasket, Magnetic (Beige)
9	MAY 2264724
13	MAY 2328563
13	Nameplate
16	Trim, Door
17	MAY 2262054
18	MAY 2266727
19	FREEZER DOOR INCLUDES (10 & 14) (WHITE)
19	FREEZER DOOR INCLUDES (10 & 14) (BLACK)
20	MAY 2189009
20	Hole Plug, Handle
23	GASKET, FC (BLACK)
23	Door Gasket, Magnetic (Beige)
25	MAY 2266738
27	MAY 488921
28	Hole Plug (Black)
28	MAY 2212648
29	Plug-Trim
30	PLUG-TRIM
33	Handle, Freezer (Black)
33	Handle, Freezer (White)
35	END CAP, TRIM
36	MAY 2217944
38	MAY 2262996
38	MAY 2262996B
