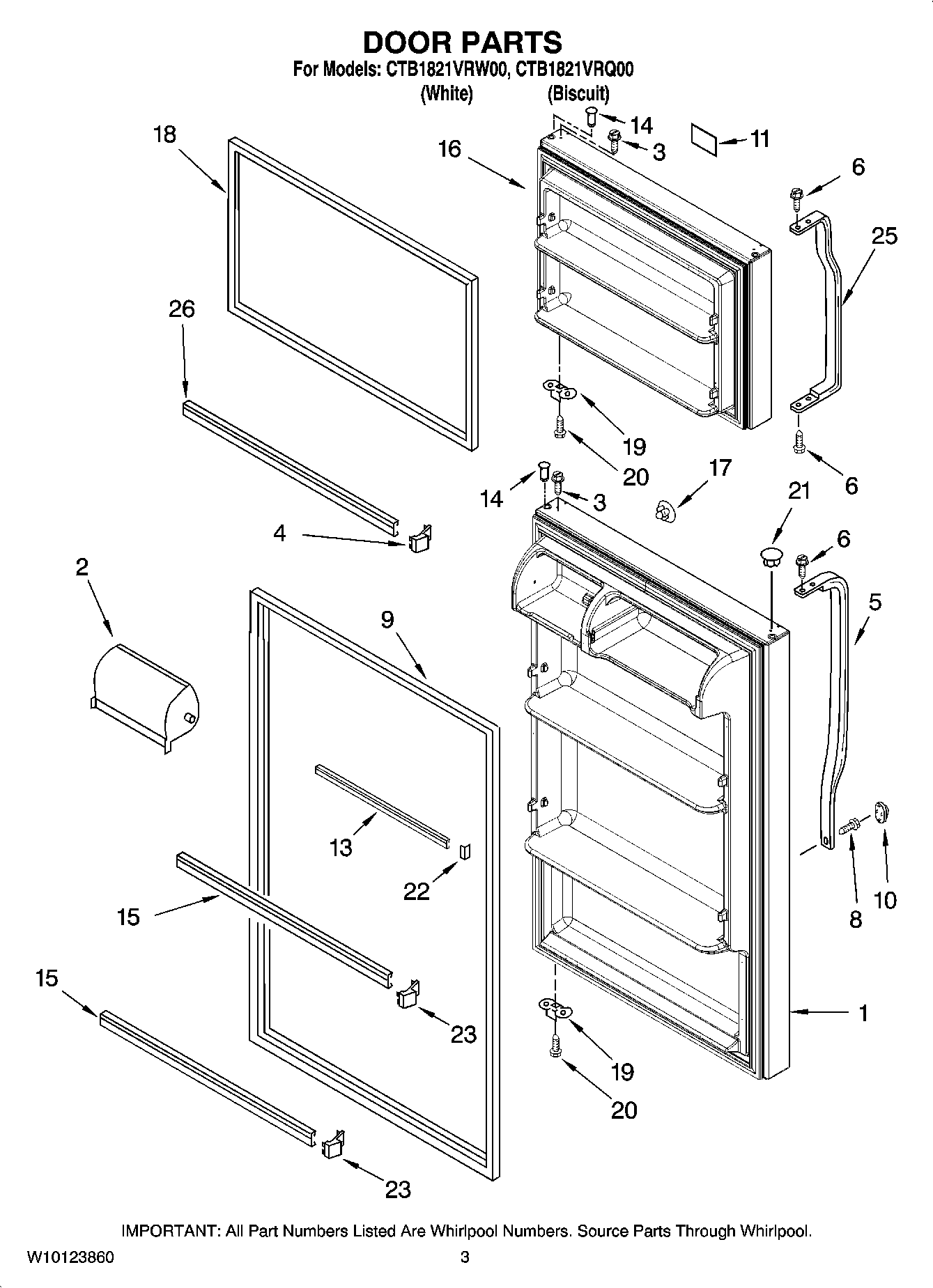

CTB1821VRW00 02 – DOOR PARTS

CTB1821VRW00 02 – DOOR PARTS

Written by

in

CTB1821VRW00 02 – DOOR PARTS

Products

PositionProduct
1MAY 2264750T
1MAY 2264750W
2MAY 2207942
3MAY 8281206
4END CAP, TRIM
5Handle, Refrigerator (White)
5MAY 2221946T
6MAY 489357
8MAY 8281146
9Door Gasket, Magnetic (Beige)
10Screw Cover (White)
10Screw Cover (Biscuit)
11Nameplate
13Trim, Door
14MAY 2262054
15MAY 2266738
16FREEZER DOOR (INCLUDES ILLUS. 14,18 & 24) (WHITE)
16FREEZER DOOR (INCLUDES ILLUS. 14,18 & 24) (BISCUIT)
17Hole Plug, Handle (Biscuit)
17Hole Plug, Handle
18Door Gasket, Magnetic (Beige)
19MAY 2189202
20MAY 488921
21MAY 2212649
21MAY 2212648
22Plug-Trim
23PLUG-TRIM
25Handle, Freezer (White)
25MAY 2215015
26MAY 2266727
