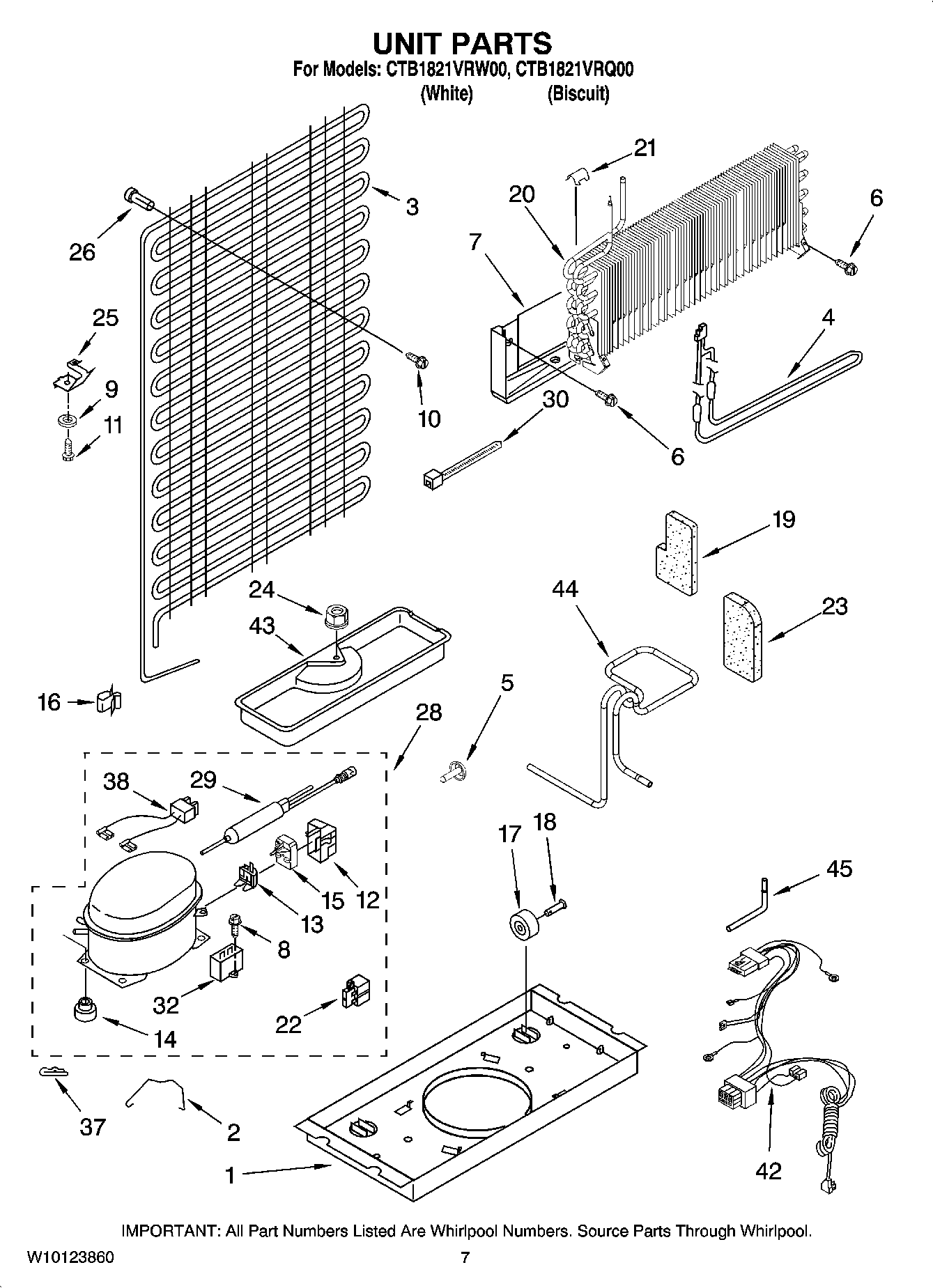

CTB1821VRW00 04 – UNIT PARTS

Products

Position	Product
	MAY 876764
	12658531CQ Whirlpool Refrigerator DOR-FIP Board
	Valve, Access (3/4“)
	Valve, Access (5/8“)
	Valve, Access (1/2“)
	VALVE, ACCESS (3/8“)
	Valve, Access (5/16“)
	VALVE, ACCESS (1/4“)
1	MAY 2221886
2	STRAP, BALE
3	MAY 2252731
4	MAY 2176942
5	Snap-Rivet Combo
6	MAY 489442
7	MAY 2319224
8	MAY 8533919
9	MAY VS611
10	MAY 8533892
11	MAY 2256637
12	COVER ((SERVICE ONLY))
13	OVERLOAD ((SERVICE ONLY))
14	Grommet (Production)
14	MAY 4387558
15	START-DEVICE, COMBINATION (START RELAY AND OVERLOAD) (PRODUCTION)
16	MAY 939054
17	Roller
18	RIVET, AXLE
19	Wedge-Evap.
20	EVAPORATOR ASSY
21	Clip, Evaporator Tube
22	Start Relay (Service Only)
23	MAY 2262192
24	MAY 489153
25	MAY 2172892
26	MAY 2258452
28	COMPRESSOR (INCLUDES ITEMS 14, 22, 29 & 32) (ALSO ORDER 482801 INSTALLATION KIT & 876765 TUBE KIT)
29	Drier
30	MAY 2263990
32	Capacitator (Production)
32	Capacitor (Service)
37	MAY 24364001
38	Wire Assembly (Service Only)
38	Wire Assembly (Production)
42	Wire Assy. Unit
43	MAY 2201801
44	MAY 2264765
45	MAY VS20001
