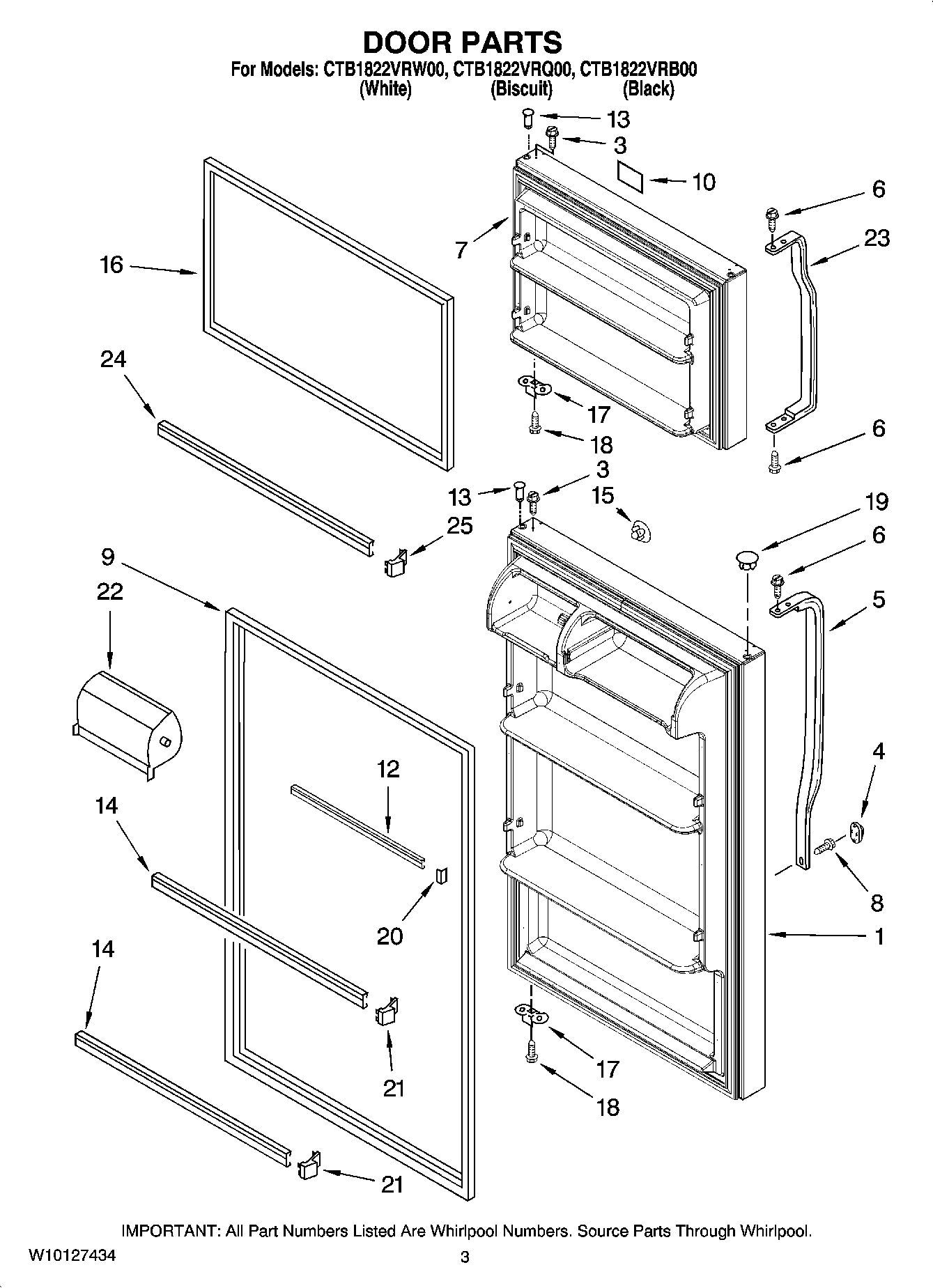

CTB1822VRB00 02 – DOOR PARTS

Products

PositionProduct
1MAY 2264750T
1REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & 14) (BLACK)
1MAY 2264750W
3MAY 8281206
4Screw Cover (Biscuit)
4SCREW COVER (BLACK)
4Screw Cover (White)
5Handle, Refrigerator (Black)
5Handle, Refrigerator (White)
5MAY 2221946T
6MAY 489357
7FREEZER DOOR (INCLUDES ILLUS. 14,18 & 24) (BLACK)
7FREEZER DOOR (INCLUDES ILLUS. 14,18 & 24) (BISCUIT)
7FREEZER DOOR (INCLUDES ILLUS. 14,18 & 24) (WHITE)
8MAY 8281146
9GASKET, RC (BLACK)
9Door Gasket, Magnetic (Beige)
10Nameplate
12Trim, Door
13MAY 2262054
14MAY 2266738
15Hole Plug, Handle (Biscuit)
15Hole Plug, Handle
15MAY 2189009
16GASKET, FC (BLACK)
16Door Gasket, Magnetic (Beige)
17MAY 2189202
18MAY 488921
19MAY 2212648
19Hole Plug (Black)
19MAY 2212649
20Plug-Trim
21PLUG-TRIM
22MAY 2207942
23Handle, Freezer (Black)
23MAY 2215015
23Handle, Freezer (White)
24MAY 2266727
25END CAP, TRIM
