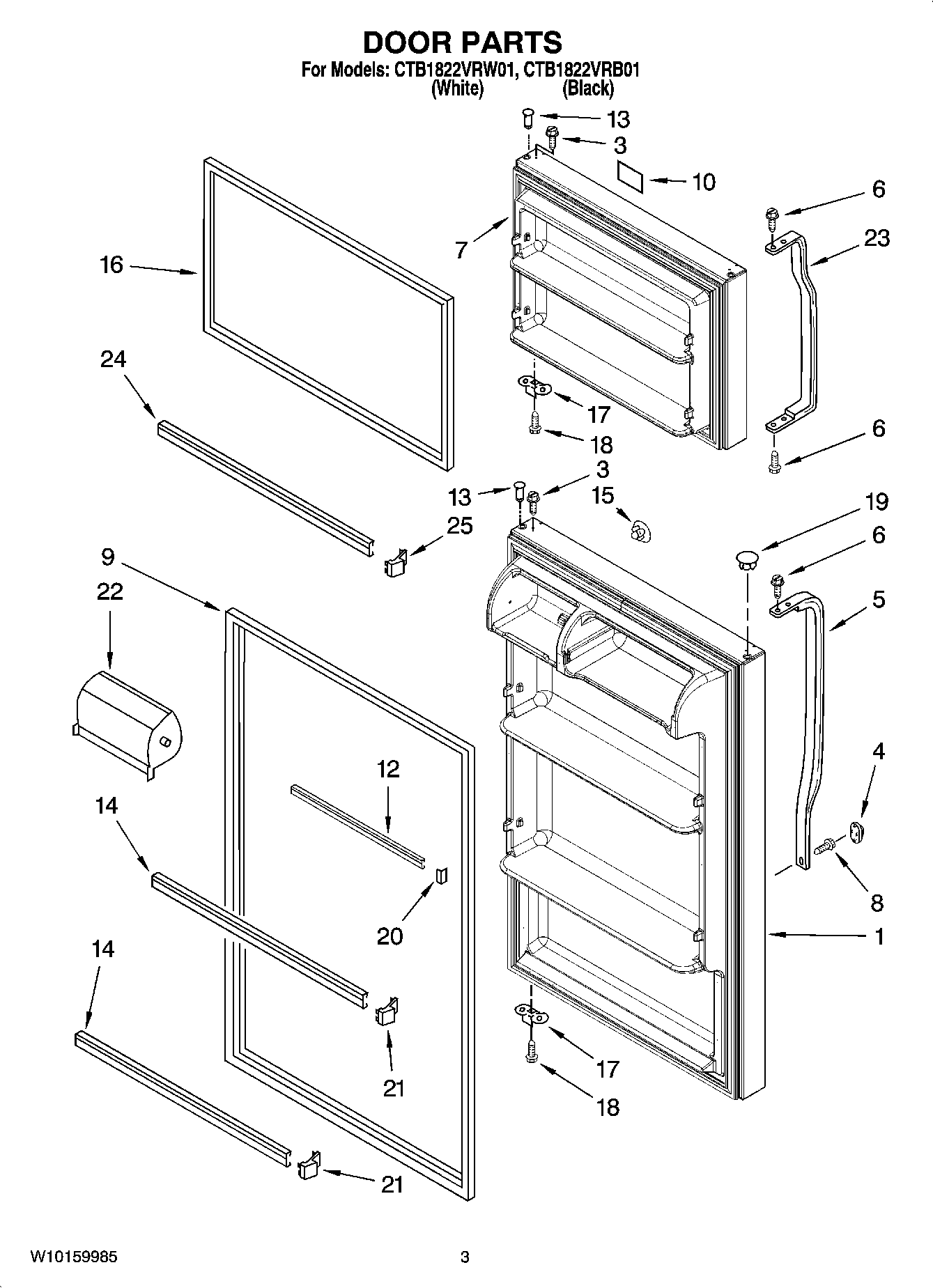

CTB1822VRW01 02 – DOOR PARTS

CTB1822VRW01 02 – DOOR PARTS

Written by

in

CTB1822VRW01 02 – DOOR PARTS

Products

PositionProduct
1MAY W10142006
1MAY 2264750W
3MAY 8281206
4SCREW COVER (BLACK)
4Screw Cover (White)
5Handle, Refrigerator (Black)
5Handle, Refrigerator (White)
6MAY 489357
7FREEZER DOOR (INCLUDES ILLUS. 14,18 & 24) (WHITE)
7MAY W10142007
8MAY 8281146
9Door Gasket, Magnetic (Beige)
9GASKET, RC (BLACK)
10Nameplate
12Trim, Door
13MAY 2262054
14MAY 2266738
15Hole Plug, Handle
15MAY 2189009
16Door Gasket, Magnetic (Beige)
16GASKET, FC (BLACK)
17MAY 2189202
18MAY 488921
19MAY 2212648
19Hole Plug (Black)
20Plug-Trim
21PLUG-TRIM
22MAY 2207942
23Handle, Freezer (White)
23Handle, Freezer (Black)
24MAY 2266727
25END CAP, TRIM
