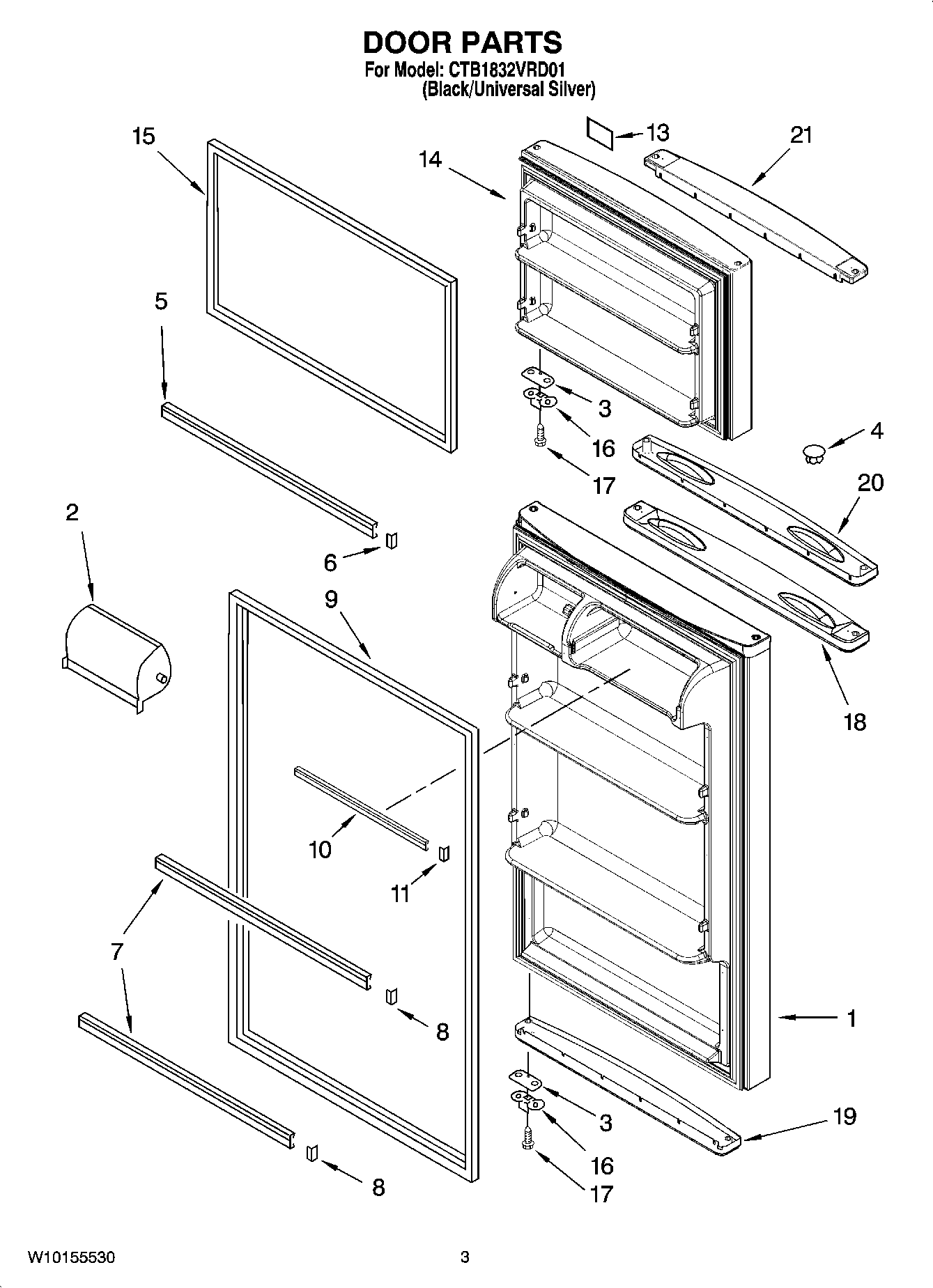

CTB1832VRD01 02 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (UNIVERSAL SILVER)
2	MAY 2207942
3	Shim, Door Stop (Black)
4	Hole Plug (Black)
5	MAY 2266727
6	END CAP, TRIM
7	MAY 2266738
8	PLUG-TRIM
9	GASKET, RC (BLACK)
10	Trim, Door
11	Plug-Trim
13	MAY 2328563
14	FREEZER DOOR (INCLUDES ILLUS. 15 & MOLDED DOOR HANDLE) (UNIVERSAL SILVER)
15	GASKET, FC (BLACK)
16	MAY 2189202
17	MAY 8533904
19	Endcap, Bottom (Black)
20	Endcap, Handle (Black)
21	Endcap, Top (Black)
