CTC912P2N2S1 OVEN DOOR

CTC912P2N2S1 OVEN DOOR

Written by

in

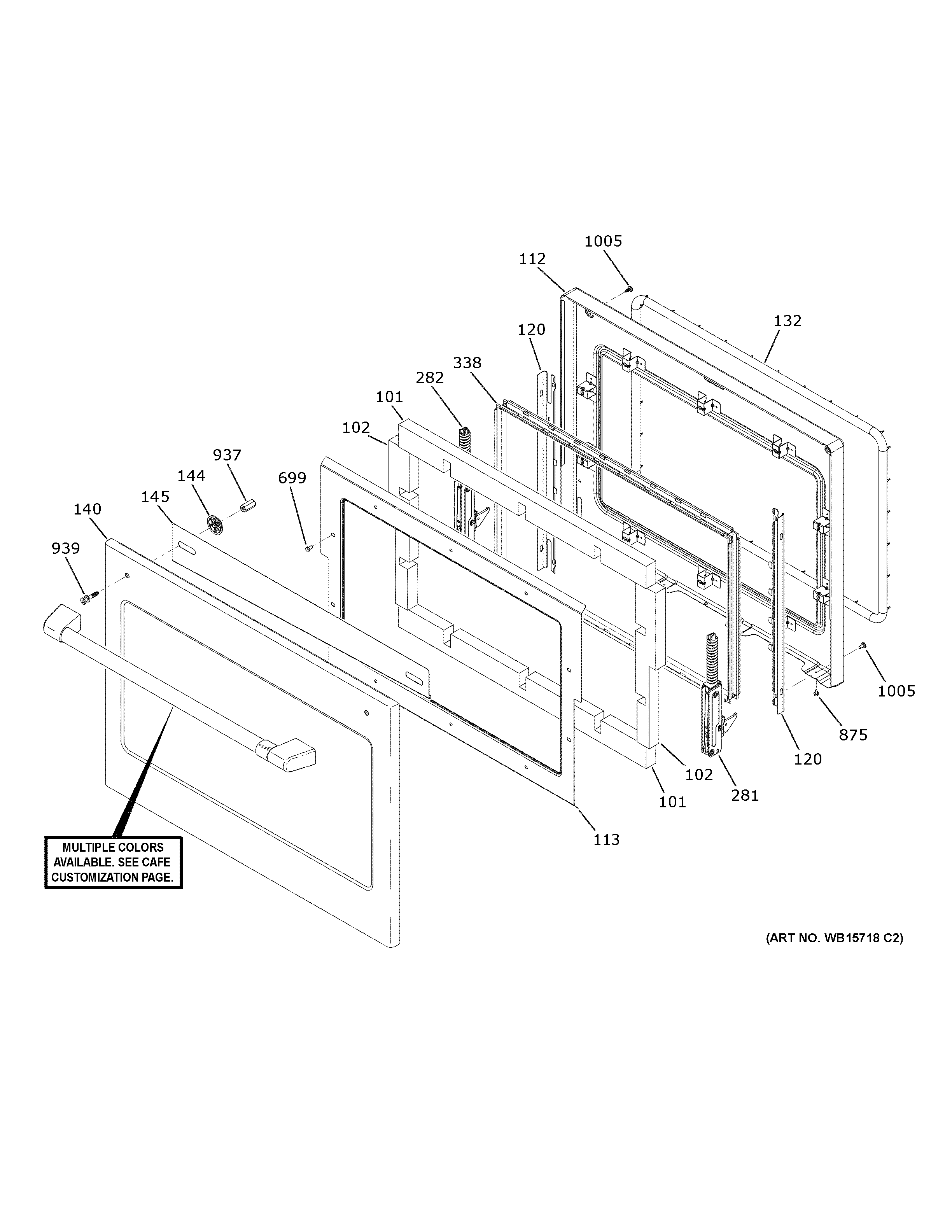

CTC912P2N2S1 OVEN DOOR

Products

PositionProduct
101INSULATION DR TOP
102WB35X31513 GE Door Side Insulation
112WB63X32569 GE Oven Assembly Door Liner
113WB34X31516 GE Door Insulation Retainer
120LINER SUPPORT
132WB35X32825 GE Oven Door Gasket
140WB56X45590 GE Stainless Outer Door
144WB02T10524 GE Oven Door Handle Spacer
145WB34T10142 GE Oven Deflector Door
281WB10X30583 GE Right Door Hinge Oven
281WB10X30584 GE Oven Left Door Hinge
282WB07X21951 GE Oven 30-Inch Middle Trim (Stainless Steel)
338WINDOW PACK ASM
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
939WB01X31573 GE Mounting Stud
1005WB01T10008 GE Oven Screw 10-32
