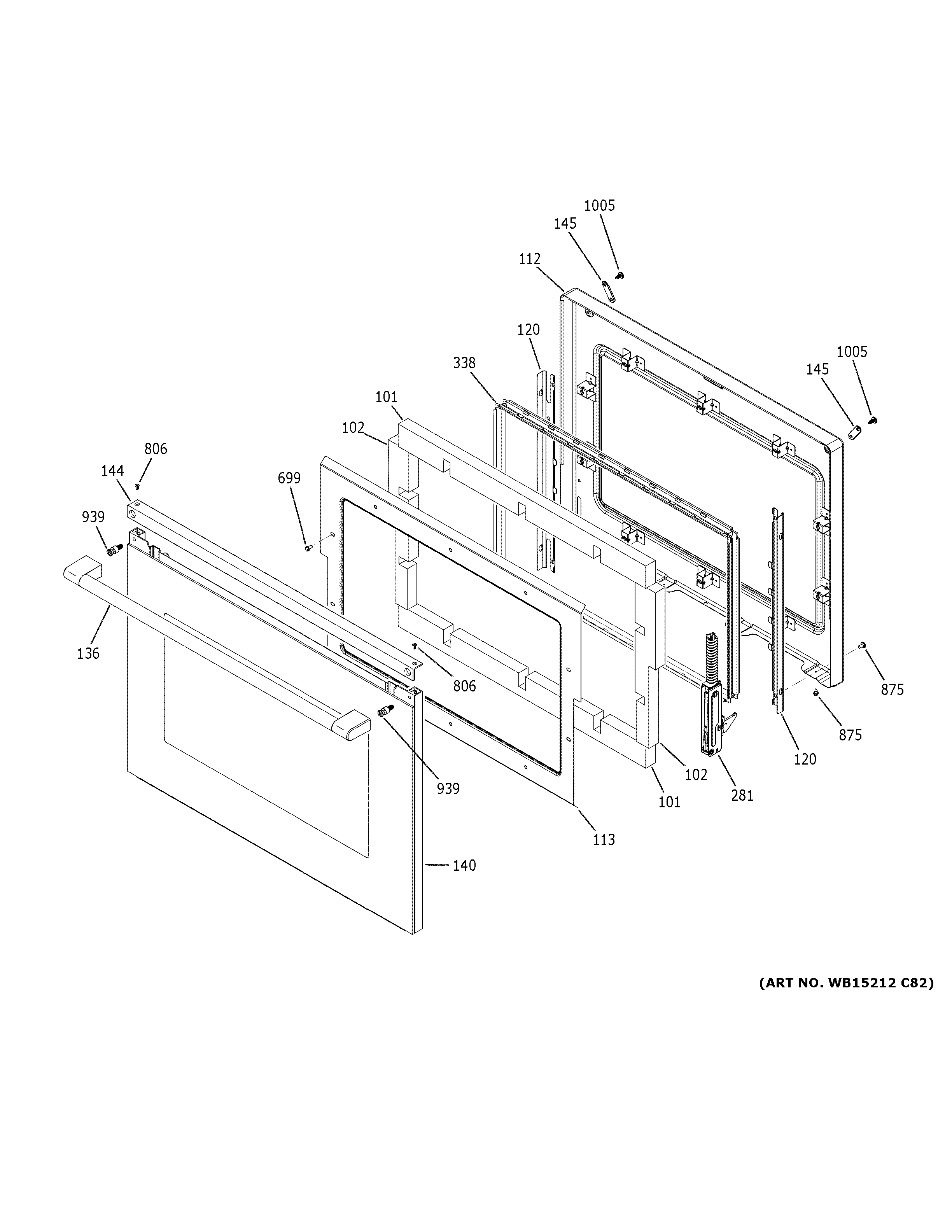

CTD70DM2N2S5 LOWER DOOR

CTD70DM2N2S5 LOWER DOOR

Written by

in

CTD70DM2N2S5 LOWER DOOR

Products

PositionProduct
101INSULATION DR TOP
102WB35X31513 GE Door Side Insulation
112WB63X32569 GE Oven Assembly Door Liner
113WB34X31516 GE Door Insulation Retainer
120LINER SUPPORT
136WB15X32948 GE Oven Stainless Steel Handle
140WB56X41427 GE Stainless Steel Door Trim
144OVEN DOOR TOP TRIM
145WB02X32816 GE Oven Door Liner Plug
281WB10X30584 GE Oven Left Door Hinge
281WB10X30583 GE Right Door Hinge Oven
338WINDOW PACK ASM
699WB1M1 GE Oven Screw
806SCREW 8-32 TT FLT 7/20
875WH2X930 GE Screw
939MOUNTING STUD
1005WB01T10008 GE Oven Screw 10-32
