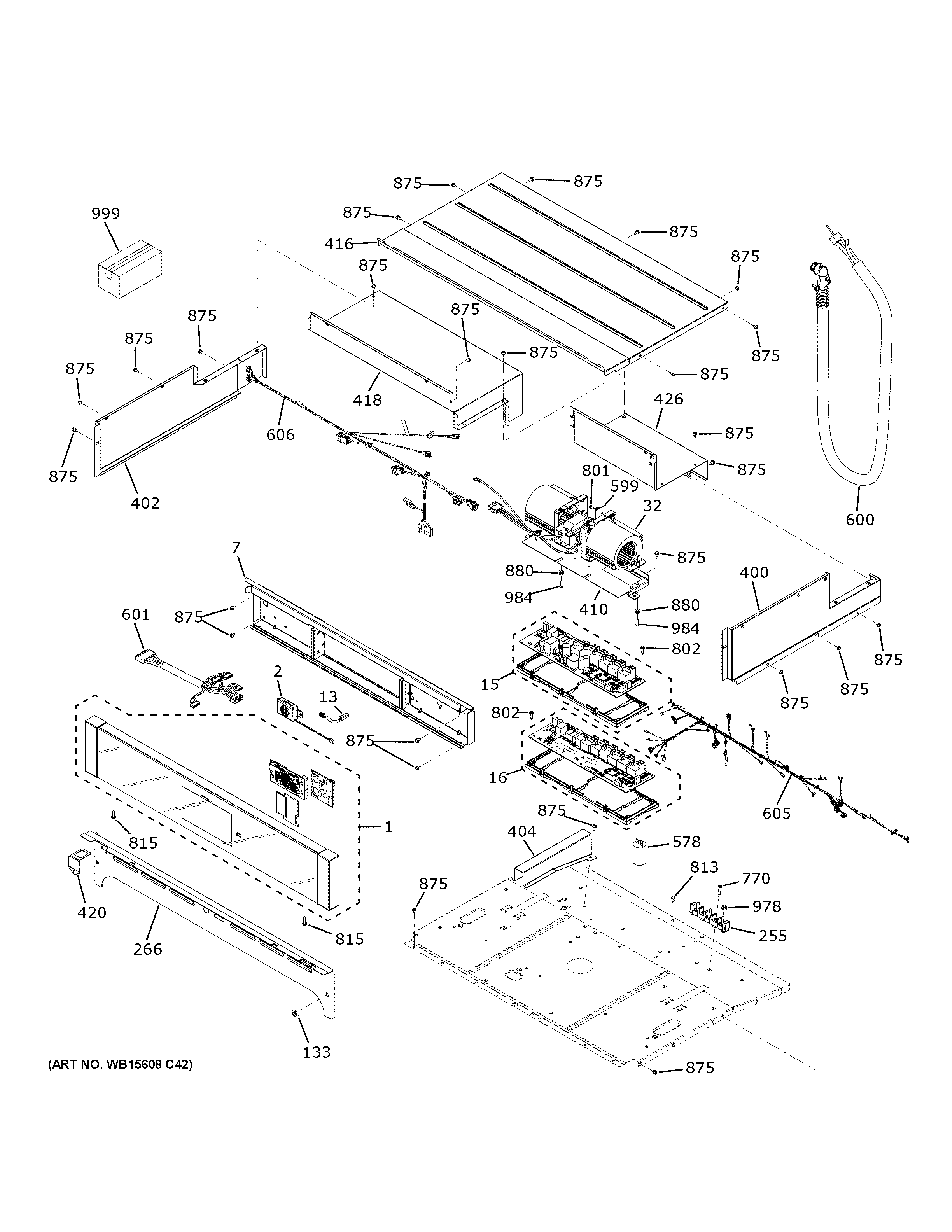

CTD70DP2N2S1 CONTROL PANEL

CTD70DP2N2S1 CONTROL PANEL

Written by

in

CTD70DP2N2S1 CONTROL PANEL

Products

PositionProduct
1WB56X40093 GE Control Panel
2WB27X33354 GE Speaker 70C 3W
7WB07X32471 GE Oven Control Panel Mounting BRack
13WB18X30704 GE Jumper
15WB27X43225 GE Control Flashed
16WB27X43226 GE Control Board Assembly
32WB26X31060 GE Oven Blower Fan
133WB03T10341 GE Oven Door Bumper
255WB17K10001 GE Oven Block Terminal
266WB07X32831 GE Upper Trim Vent
400COVER TOP RIGHT EDGE
402WB44T10126 GE Oven Top Left Edge Cover
404WB34T10150 GE Upper Air Vent Channel
410WB37T10026 GE Oven Upper Fan Mount Bracket
416WB34X28390 GE Oven Front Cover Housing
418WB24X32772 GE Top Rear Cover
420WB24X33028 GE RJ45 Bracket
426WB35T10273 GE Oven Rear Wire Cover
578WB27T10662 GE Oven Capacitor
599WB27T11463 GE Oven Fan Sensor Board
600WB18T10580 GE Oven 6 FT Optional Conduit
600WB18X33486 GE Conduit Wire Assembly
601WB18X33150 GE Wire Communication Harness
605WB49X35795 GE Double Oven Main Harness Repair
606LATCH COM WIRE HARNESS
606LATCH COM WIRE HARNESS
770WB1K5072 GE Oven Screw
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
802WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
813WS02X10087 GE Screws 10-32 GX HXW 7/16 S
815WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8
875WH2X930 GE Screw
880WB01T10128 GE Grommet
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999PM QUICK OWNERS MANUAL
999PM OWNERS MANUAL
999PM MINI MANUAL AND WIRING
999MANUAL U&C TIP SHEET
999INSTRUCTION INSTALL
999PM INSTALL INSTRUCTIONS
999WB02T10303 GE Cleaner Lubricant
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
