CTD90DM2N2S5 UPPER DOOR

CTD90DM2N2S5 UPPER DOOR

Written by

in

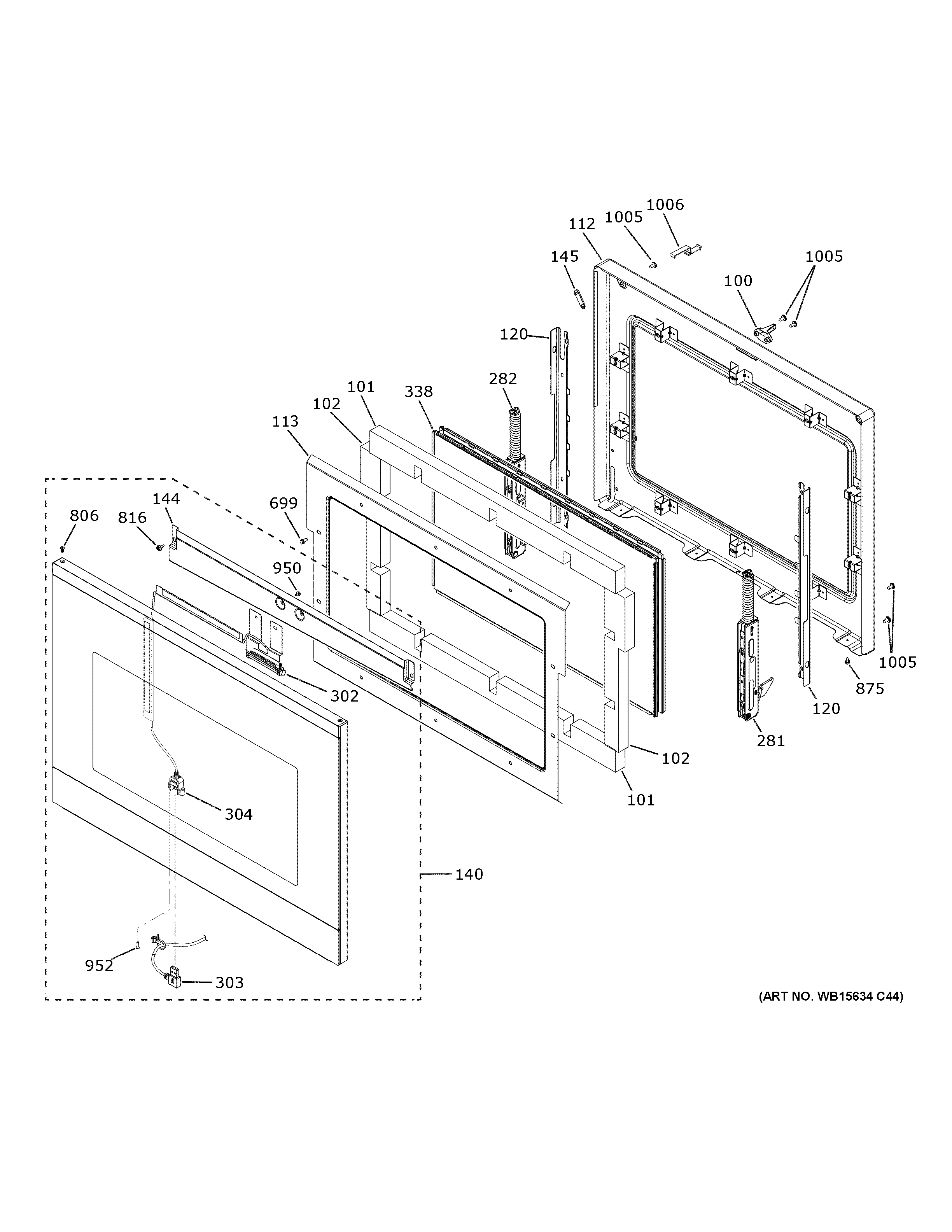

CTD90DM2N2S5 UPPER DOOR

Products

PositionProduct
100WB14X34677 GE Latch Pawl
101INSULATION DR TOP
102WB35X31513 GE Door Side Insulation
112LINER OVEN DOOR ASM
113WB34X31516 GE Door Insulation Retainer
120LINER SUPPORT
140OUTER DOOR – STAINLESS
144DEFLECTOR OUTER DOOR GLASS
145WB02X32816 GE Oven Door Liner Plug
281WB10X33832 GE Dishwasher Soft Open Hinge Right Door
282WB10X33858 GE Refrigerator Left Door Soft Open Hinge
302WB34X34990 GE Camera Assembly
303WB18X35000 GE Camera Wire Harness
304WB18X35646 GE Door Wire Harness for Camera
338WB56X27662 GE Window Pack Assembly
699WB1M1 GE Oven Screw
806SCREW 8-32 TT FLT 7/20
816WB1X1424D GE Oven Screw Package
875WH2X930 GE Screw
950GEN WB01X1178
952SCREW 6-32 FLT-10 1/4
1005WB01T10008 GE Oven Screw 10-32
1006STOP DOOR DEHYDRATE
