CTD90DM2N4S5 CONTROL PANEL

CTD90DM2N4S5 CONTROL PANEL

Written by

in

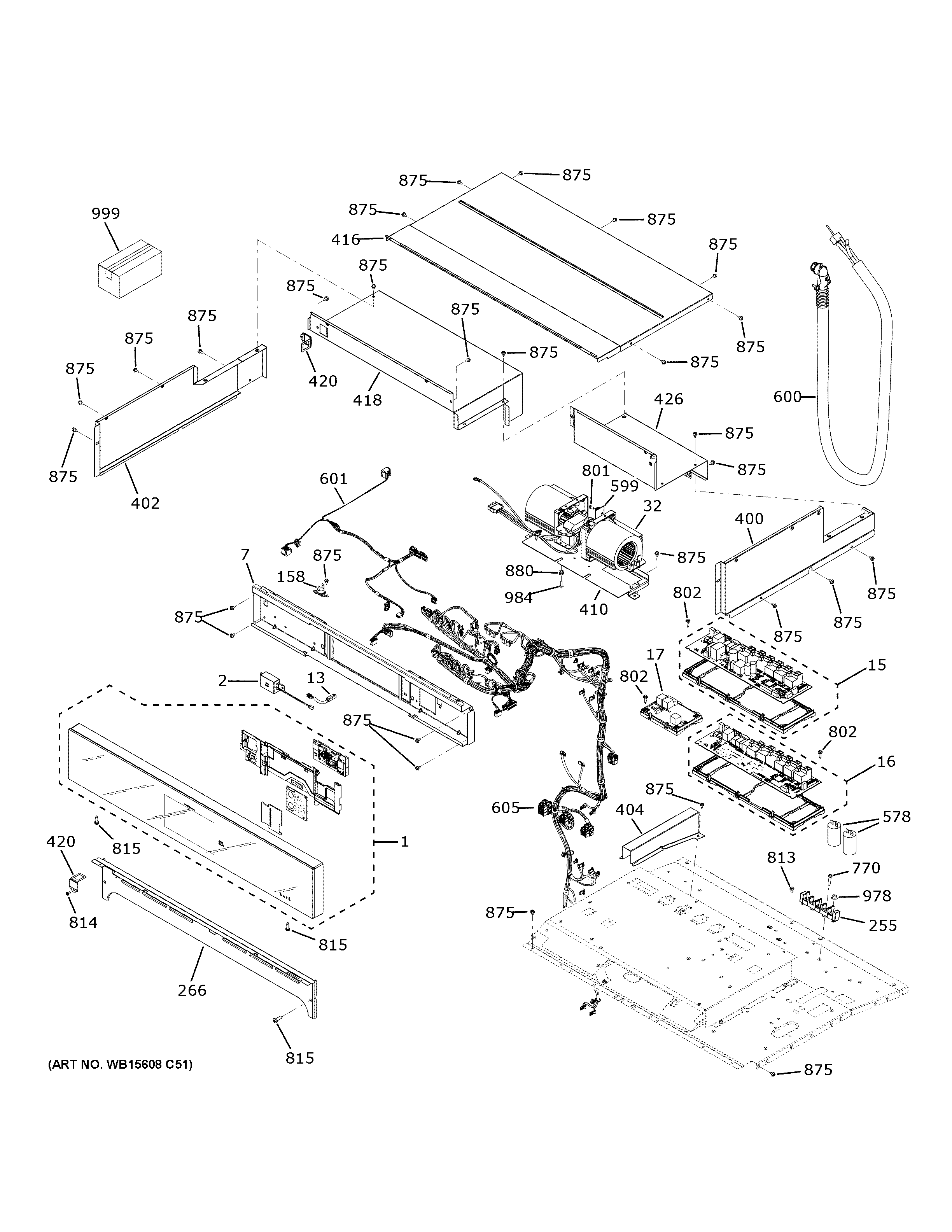

CTD90DM2N4S5 CONTROL PANEL

Products

PositionProduct
1CONTROL PANEL – STAINLESS
2WB27X33354 GE Speaker 70C 3W
7WB07X32471 GE Oven Control Panel Mounting BRack
13WB18X30704 GE Jumper
15UPPER OVEN CONTROL RC17 – FLASHED
16LOWER OVEN CONTROL RC17 – FLASHED
17WB27X34728 GE Frame and Relay Board
32WB26X31060 GE Oven Blower Fan
158WB24X35587 GE Limit Switch
255WB17K10001 GE Oven Block Terminal
266TRIM VENT UPPER
400COVER TOP RIGHT EDGE
402WB44T10126 GE Oven Top Left Edge Cover
404WB34T10150 GE Upper Air Vent Channel
410WB37T10026 GE Oven Upper Fan Mount Bracket
416WB34X28390 GE Oven Front Cover Housing
418WB24X32772 GE Top Rear Cover
420WB24X33028 GE RJ45 Bracket
426WB35T10273 GE Oven Rear Wire Cover
578WB27T10662 GE Oven Capacitor
599WB27T11463 GE Oven Fan Sensor Board
600WB18X33486 GE Conduit Wire Assembly
600WB18T10580 GE Oven 6 FT Optional Conduit
601UI AND RJ45 HARNESS
605HARNESS MAIN
770WB1K5072 GE Oven Screw
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
802WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
813WS02X10087 GE Screws 10-32 GX HXW 7/16 S
814WB01T10012 GE Oven Screw
815WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8
875WH2X930 GE Screw
880WB01T10128 GE Grommet
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999PM OWNERS MANUAL
999PM INSERT INSTRUCTIONS
999PM MINI MANUAL AND WIRING
999INSTRUCTION INSTALL
999PM INSERT INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999PM QUICK OWNERS MANUAL
999PM INSERT INSTRUCTIONS
999WB02T10303 GE Cleaner Lubricant
999PM INSERT INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
