CTD90DM2N4S5 LOWER OVEN

CTD90DM2N4S5 LOWER OVEN

Written by

in

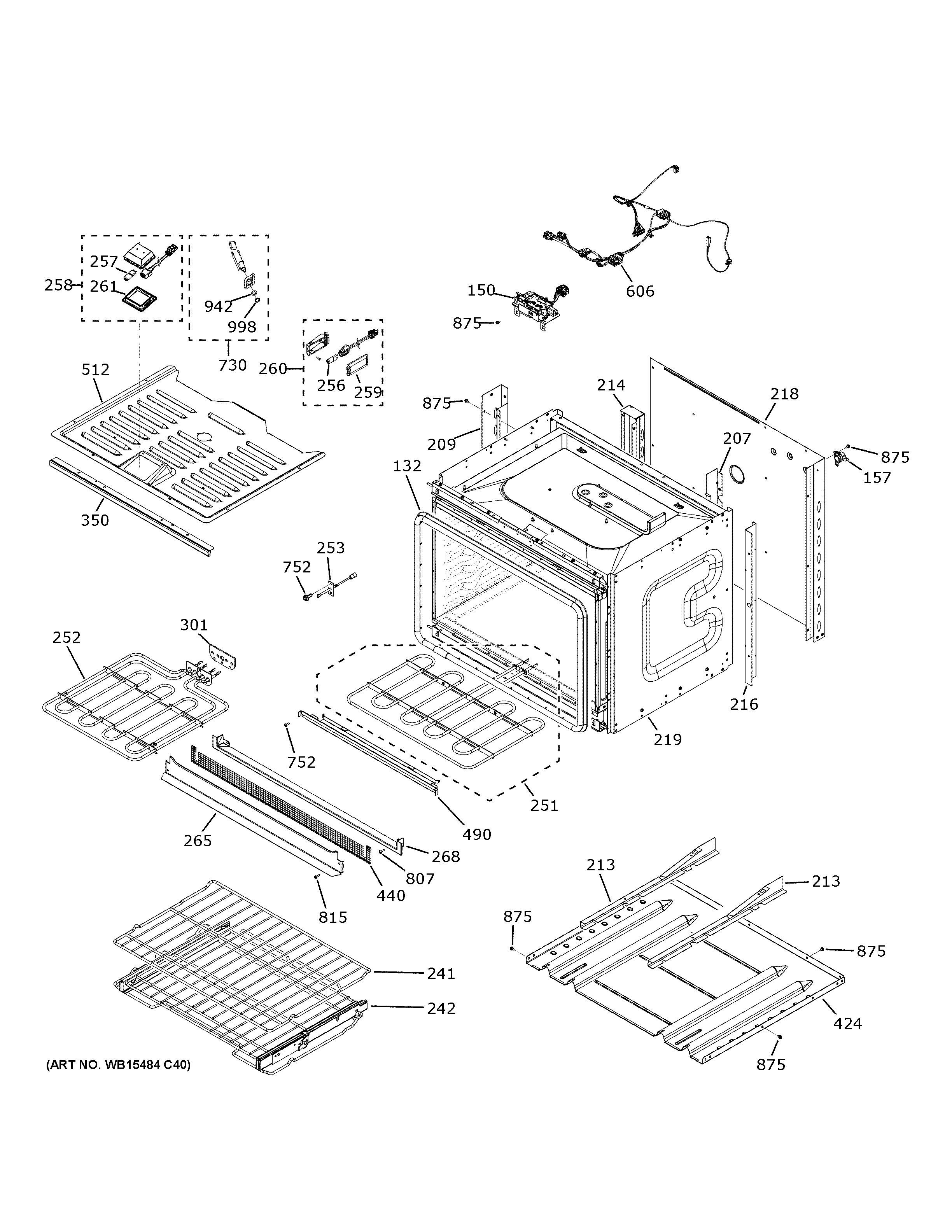

CTD90DM2N4S5 LOWER OVEN

Products

PositionProduct
132WB35X32825 GE Oven Door Gasket
150WB10X40032 GE Latch and Harness Assembly
157HIGH LIMIT SWITCH
207WB34T10134 GE Center Air Divider
209CHANNEL REAR
213WB34T10163 GE Air Divider Bottom
214WB55X10971 GE Rear Channel
216DIVIDER AIR DUCT RIGHT
218DUCT LOWER REAR DUCT
219WB34X21913 GE Side Insulation Retainer
241WB48X31582 GE Oven Rack
242WB48X38086 GE Oven Rack Slide Assembly
251HIDDEN BAKE ELEMENT
252BROIL ELEMENT
253SENSOR ASM
256WB25T10101 GE Oven Halogen Lamp Bulb G9
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X31221 GE Oven Halogen Lamp Assembly
259OVEN LIGHT LENS
260WB25X31222 GE Halogen Lamp Assembly
261WB34X31317 GE Oven Light Lens
265WB07X21783 GE Oven Lower Vent Trim
268WB07T10786 GE Oven Bottom Cabinet Trim
301WB35X21972 GE Broil Element Gasket
350GEN WB07T10787
424WB56X43352 GE Air Duct Bottom Cover
440SCREEN SUPPORT
490WB55T10197 GE Oven Hidden Bake Cover
512WB37T10024 GE Oven Top Plate
606LATCH COM WIRE HARNESS
606HARNESS WIRE LATCH COM
730WB18X23585 GE Oven Meat Probe and Harness
752WB01X21742 GE Screw
807WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
815WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8
875WH2X930 GE Screw
942WB1X5573 GE Oven Washer
998WB1X5572 GE Oven Nut
