Aparts

CTD90DP3N4D1 LOWER DOOR

CTD90DP3N4D1 LOWER DOOR

Written by

in

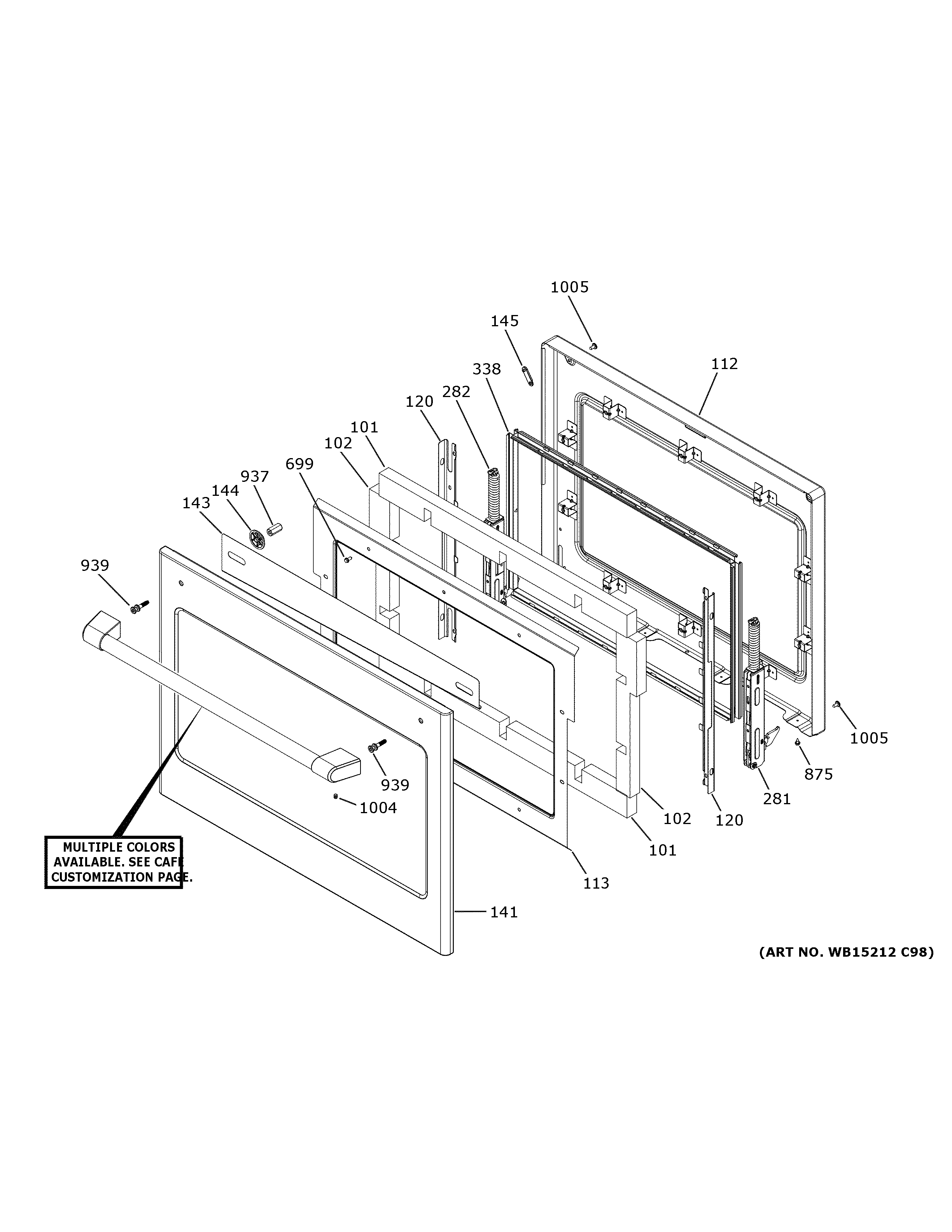

CTD90DP3N4D1 LOWER DOOR

Products

PositionProduct
101INSULATION DR TOP
102WB35X31513 GE Door Side Insulation
112WB63X32569 GE Oven Assembly Door Liner
113WB34X31516 GE Door Insulation Retainer
120LINER SUPPORT
141LOWER OUTER DOOR-BLACK SLATE
143WB34X37051 GE Outer Door Glass Deflector
143WB34T10142 GE Oven Deflector Door
144WB02T10524 GE Oven Door Handle Spacer
145WB02X32816 GE Oven Door Liner Plug
281WB10X37066 GE Right Door Soft Close Hinge
282WB10X37049 GE Dishwasher Soft Close Hinge Left Door
338WB56X27662 GE Window Pack Assembly
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
937WB01X31717 GE Oven Reinforcement Spacer
939WB01X31573 GE Mounting Stud
1004WR01X20424 GE Refrigerator Screw
1005WB01T10008 GE Oven Screw 10-32
