CTD90FP2N4S1 UPPER DOORS

CTD90FP2N4S1 UPPER DOORS

Written by

in

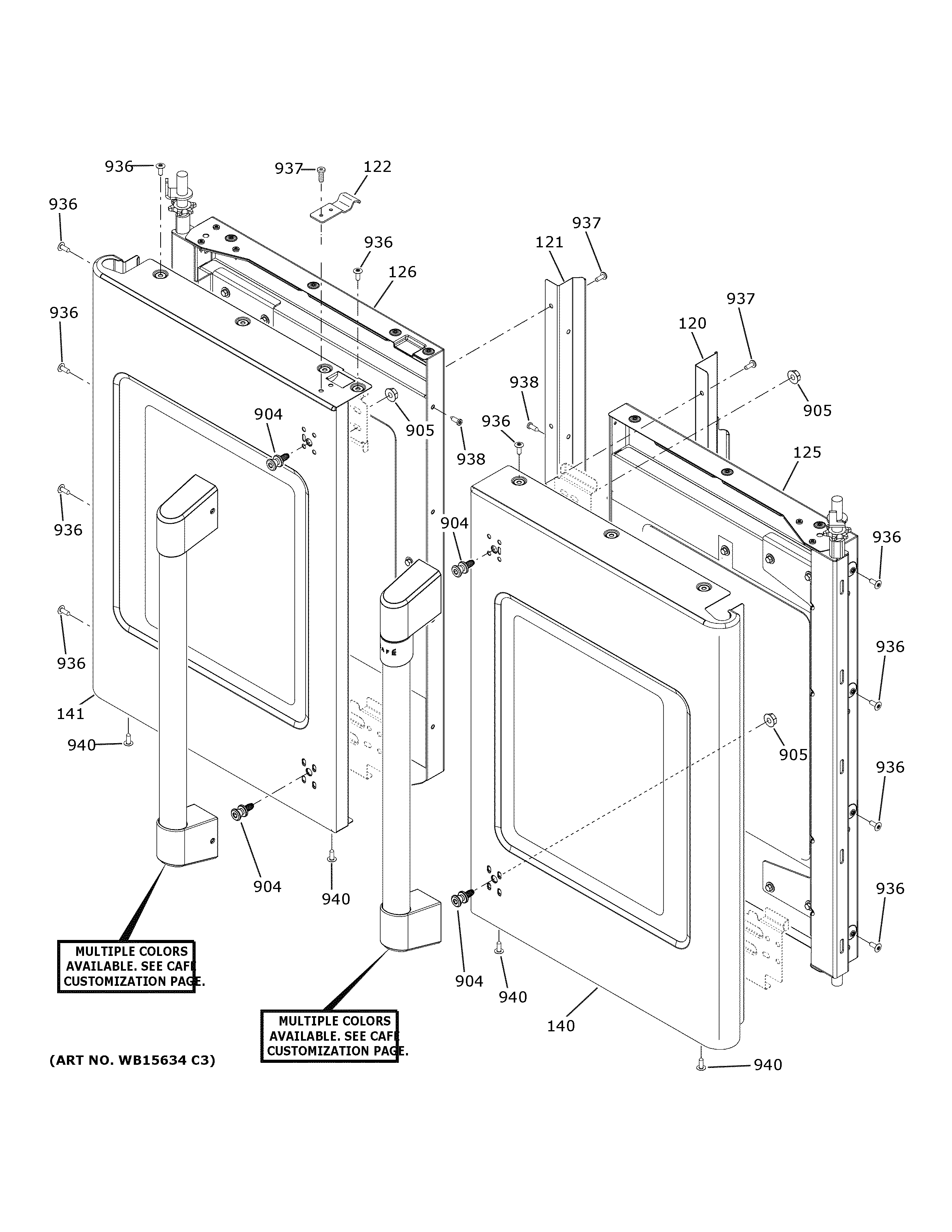

CTD90FP2N4S1 UPPER DOORS

Products

PositionProduct
120WB35X23767 GE Right Center Seal
121SEAL CENTER LT
122WB10X23776 GE Strike Plate
125WB56X24543 GE Oven Door Inner Assembly RT Kit
126WB56X24544 GE Dishwasher Door Inner Assembly Kit
140WB56X43547 GE Right Outer Door Assembly – Stainless
141WB56X43989 GE Left Outer Door Assembly – Stainless
904WB01X31574 GE Mounting Stud
905HEX NUT 1/4-20
936WB01X24096 GE Screw 8-18X
937SCREW 8-32 MCH PNT-15 7/16
938WB01X23768 GE Screw 8-18 Ab Pnt 15 1/2
940WB1K5167 GE Screw 8-18 X 3/8"
