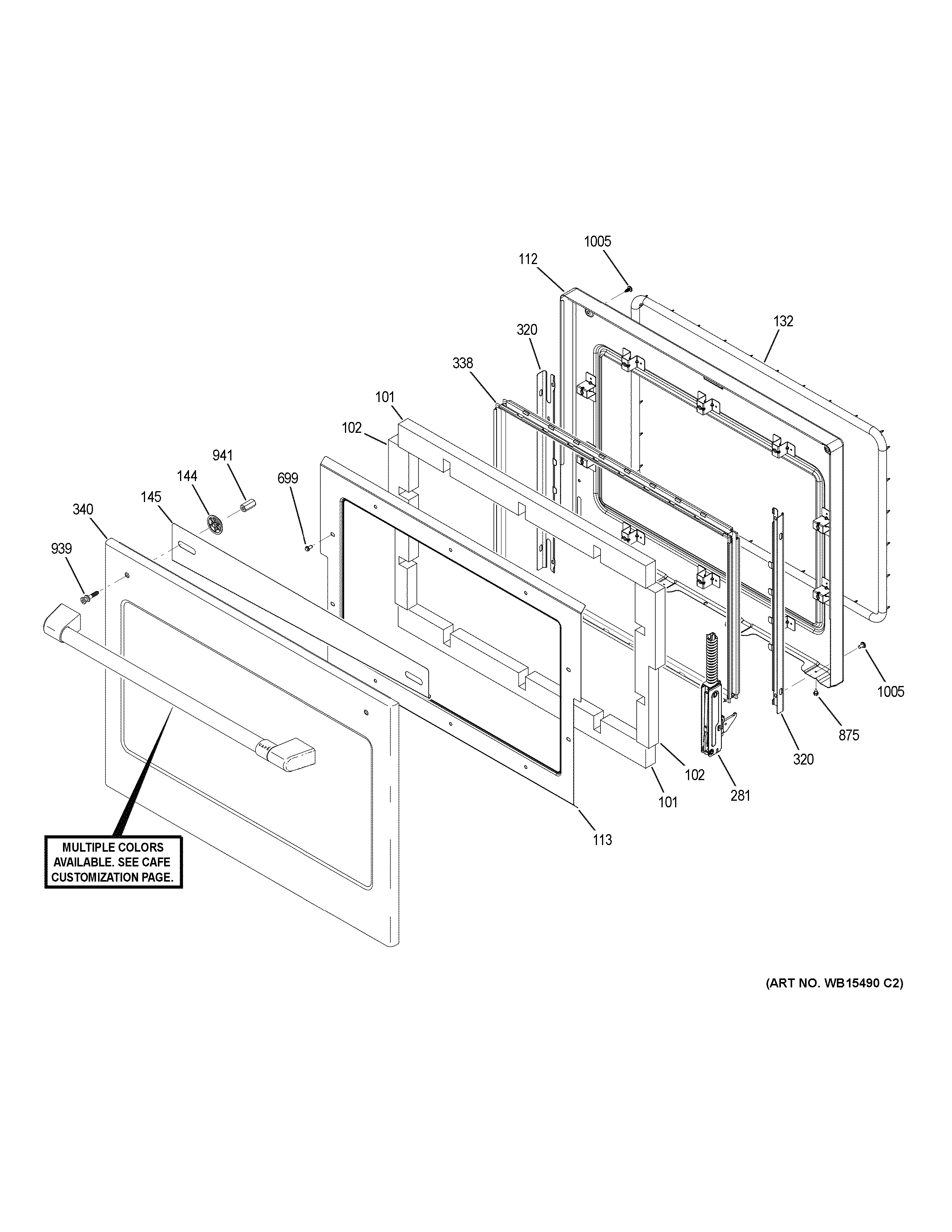

CTD90FP3M2D1 LOWER DOOR

CTD90FP3M2D1 LOWER DOOR

Written by

in

CTD90FP3M2D1 LOWER DOOR

Products

PositionProduct
101INSULATION DR TOP
102INSULATION DR SIDE
112WB63X32818 GE Oven Liner Door Kit
113WB34X31516 GE Door Insulation Retainer
132WB35X32825 GE Oven Door Gasket
144WB02T10524 GE Oven Door Handle Spacer
145WB34T10142 GE Oven Deflector Door
281WB10X28534 GE Door Hinge Left
281WB10X28535 GE Door Hinge Right
320LINER SUPPORT
338WB56X27662 GE Window Pack Assembly
340WB56X31882 GE Dark Slate Outer Door Assembly
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
939WB01X31574 GE Mounting Stud
941REINFORCEMENT SPACER
1005WB01T10008 GE Oven Screw 10-32
