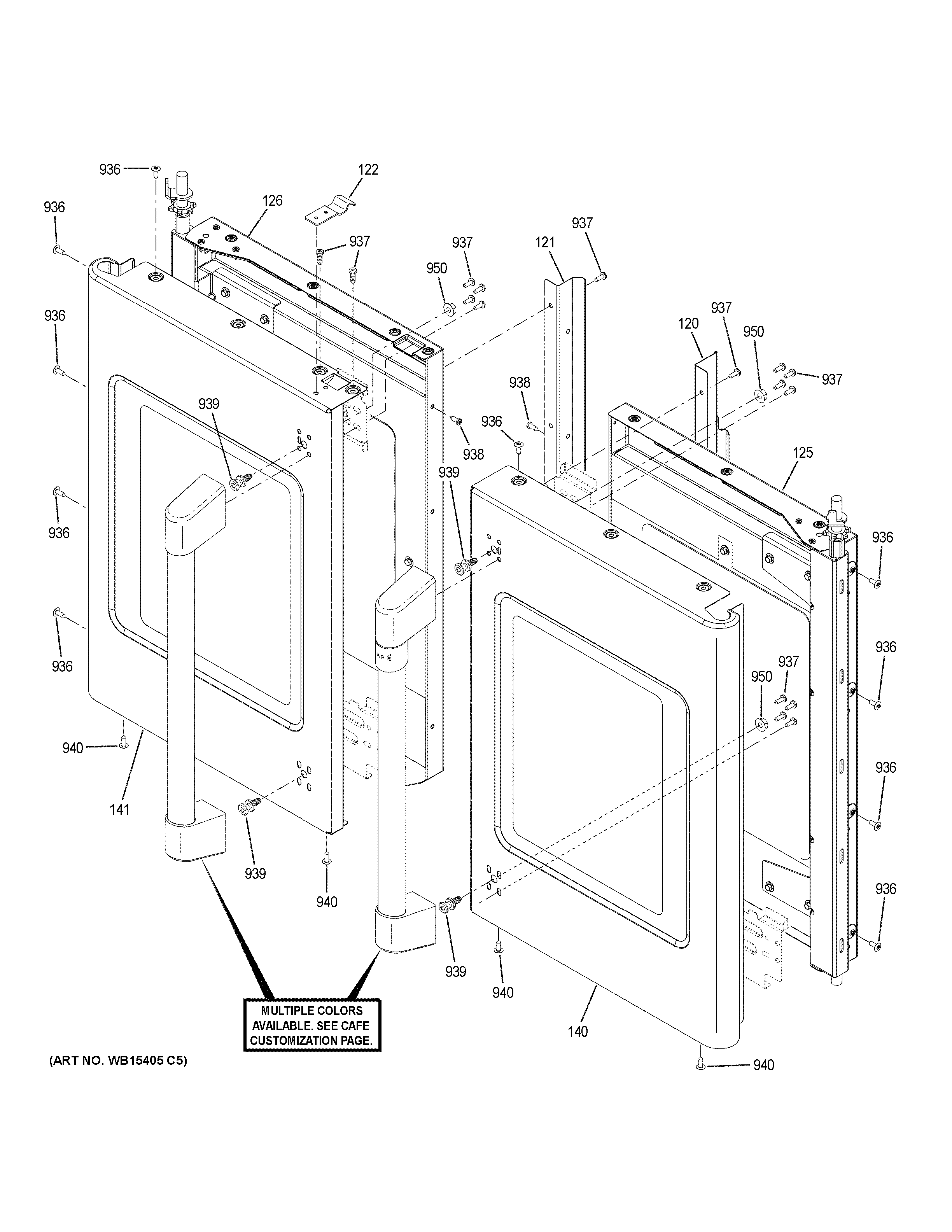

CTD90FP3M2D1 UPPER DOORS

Products

Position	Product
120	WB35X23767 GE Right Center Seal
121	SEAL CENTER LT
122	WB10X23776 GE Strike Plate
125	WB56X24543 GE Oven Door Inner Assembly RT Kit
126	WB56X24544 GE Dishwasher Door Inner Assembly Kit
140	WB56X43990 GE Slate Dark Right Outer Door
141	WB56X43991 GE Left Outer Door – Dark Slate
936	WB01X24096 GE Screw 8-18X
937	SCREW 8-32 MCH PNT-15 7/16
938	WB01X23768 GE Screw 8-18 Ab Pnt 15 1/2
939	WB01X31574 GE Mounting Stud
940	WB1K5167 GE Screw 8-18 X 3/8"
950	HEX NUT 1/4-20
