CTD90FP3N1D1 UPPER OVEN

CTD90FP3N1D1 UPPER OVEN

Written by

in

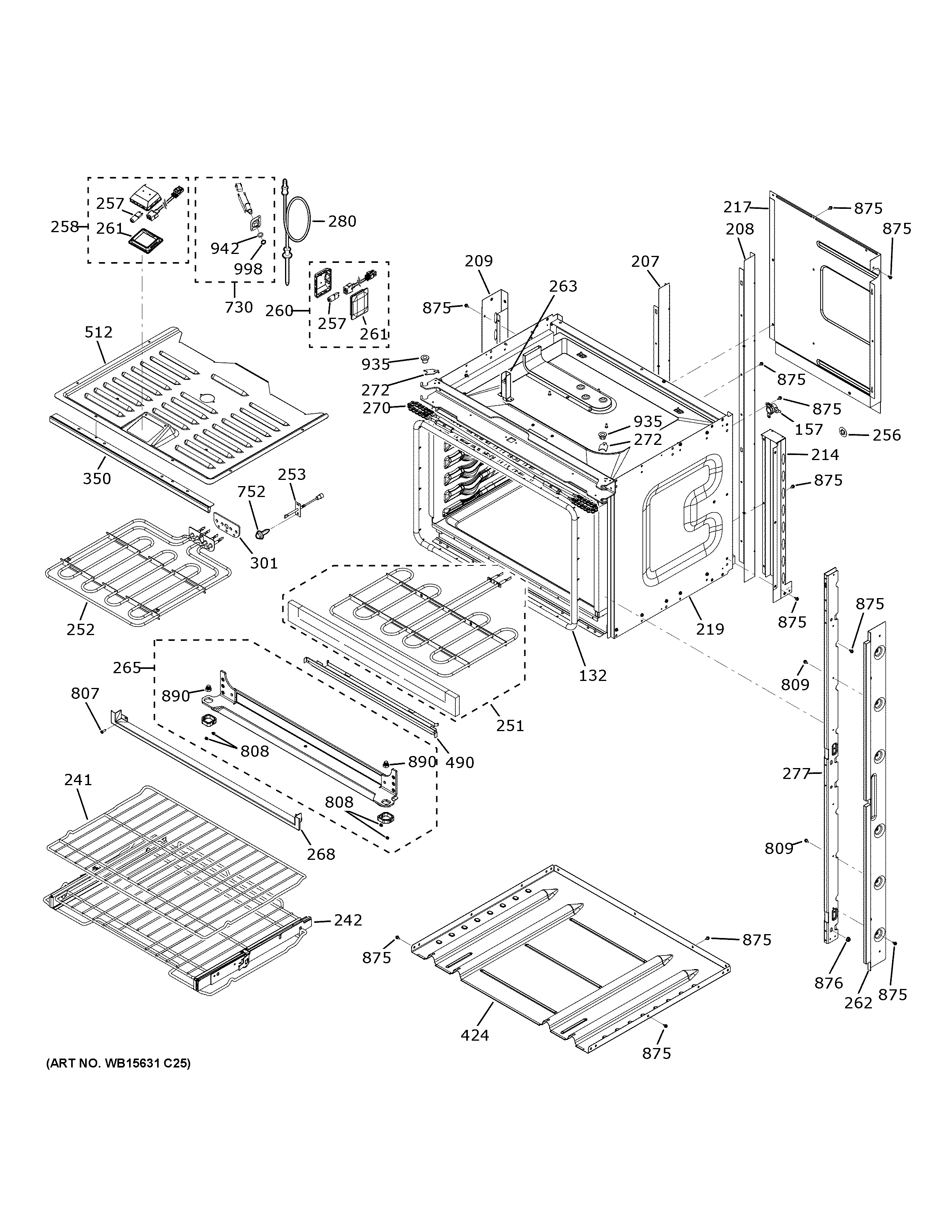

CTD90FP3N1D1 UPPER OVEN

Products

PositionProduct
132WB35X32825 GE Oven Door Gasket
157HIGH LIMIT SWITCH
207WB34T10134 GE Center Air Divider
208WB34T10140 GE Oven Double Divider Air
209CHANNEL REAR
214WB55X10971 GE Rear Channel
217WB34T10136 GE Upper Rear Duct Cover
219WB34X21913 GE Side Insulation Retainer
241WB48X31582 GE Oven Rack
242WB48X38086 GE Oven Rack Slide Assembly
251WB44X21667 GE Oven Hidden Bake Element Kit
252WB44X40787 GE Broil Element
253SENSOR ASM
256WB01T10107 GE Oven Bolt Retainer
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X31221 GE Oven Halogen Lamp Assembly
260WB25X31222 GE Halogen Lamp Assembly
261WB34X31317 GE Oven Light Lens
262TRIM VERTICAL SIDE SS
263SPRING ROLLER ASM
265WB07X29084 GE Receiver and Support Assembly
268WB07T10761 GE Oven Bottom Trim Small Cabinet
270WB10X24542 GE Oven Chain Assembly Kit
272RETAINER BEARING
277WB07X28522 GE Right Vertical Brace Assembly
277VERTICAL BRACE ASM LT
280WB20T10024 GE Oven Thermistor Probe
301WB35X21972 GE Broil Element Gasket
350GEN WB07T10787
424WB56X43352 GE Air Duct Bottom Cover
490WB55T10197 GE Oven Hidden Bake Cover
512WB37T10024 GE Oven Top Plate
730WB18X23585 GE Oven Meat Probe and Harness
752WB1K5200 GE Oven Screw 340531
807WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
808WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
808WB01X23771 GE Oven Recessed Screw 1/4 X 32
809WB01T10120 GE Screw 8-18 x 0.750 (Nickel)
875WH2X930 GE Screw
876LOCK NUT
890SCR 3/8-24 MCH SK 1/4
935BEARING BRONZE
942WB1X5573 GE Oven Washer
998WB1X5572 GE Oven Nut
