CTD90FP3N4D1 LOWER DOOR

CTD90FP3N4D1 LOWER DOOR

Written by

in

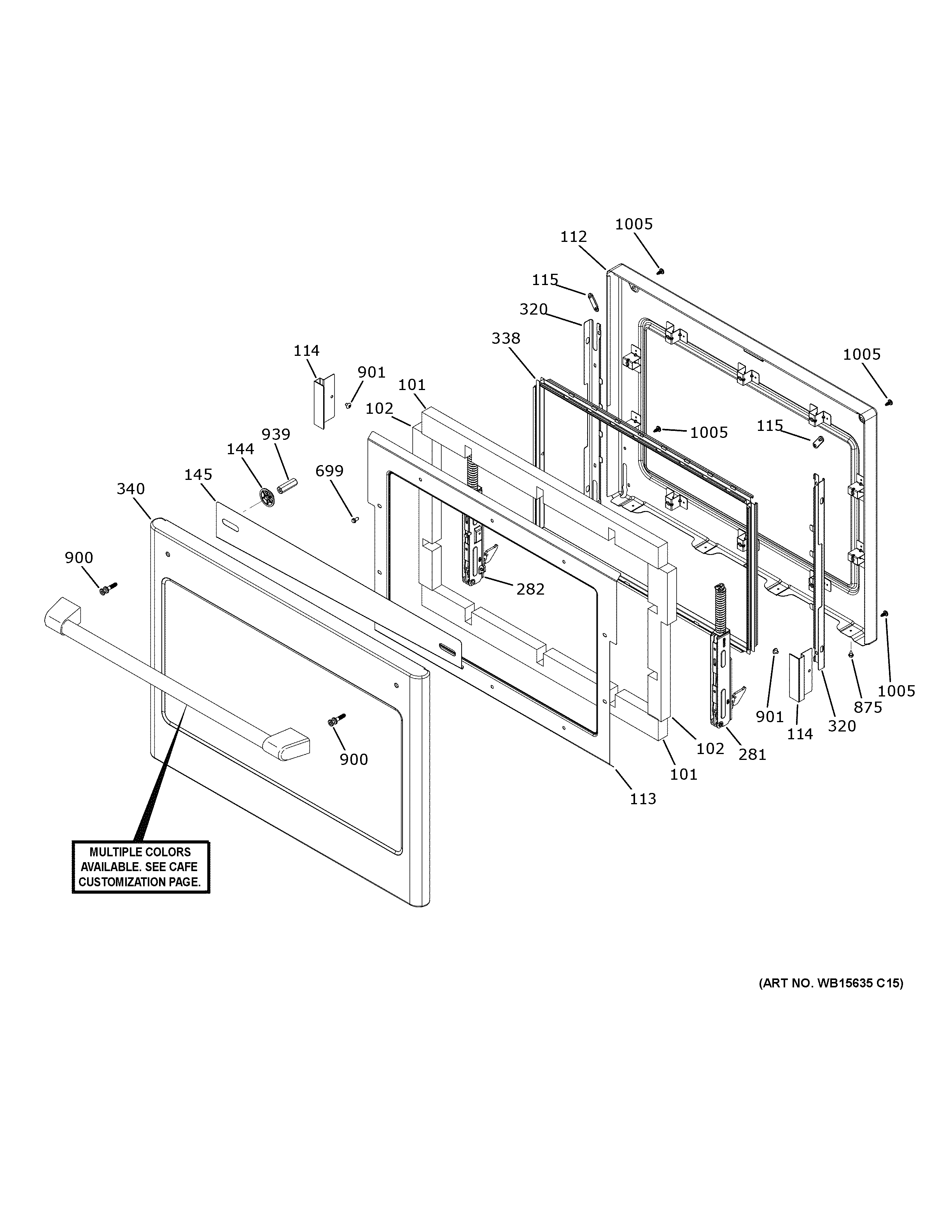

CTD90FP3N4D1 LOWER DOOR

Products

PositionProduct
101INSULATION DR TOP
102WB35X31513 GE Door Side Insulation
112WB63X32569 GE Oven Assembly Door Liner
113WB34X31516 GE Door Insulation Retainer
114BRACKET AND TAPE ASM
115WB02X32816 GE Oven Door Liner Plug
144WB02T10524 GE Oven Door Handle Spacer
145WB34T10142 GE Oven Deflector Door
281WB10X36954 GE Soft Close Hinge Right Door
282WB10X36947 GE Soft Close Hinge Left Door
320LINER SUPPORT
338WB56X27662 GE Window Pack Assembly
340LOWER OUTER DOOR-DARK SLATE
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
900WB01X31573 GE Mounting Stud
901SCREW 10-32 MCH TRT20 I/4
939REINFORCEMENT SPACER
1005WB01T10008 GE Oven Screw 10-32
