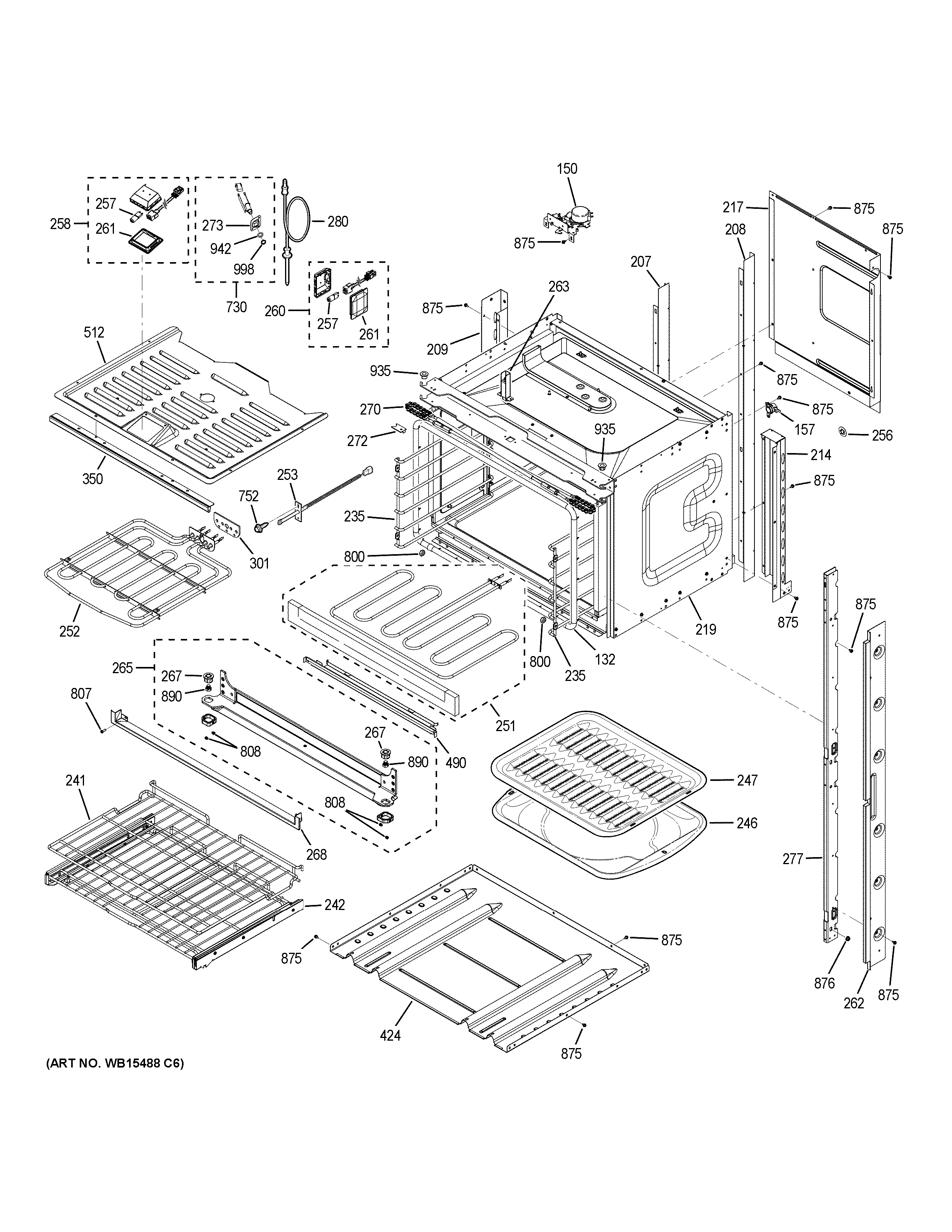

CTD90FP4M1W2 UPPER OVEN

Products

PositionProduct
132WB35X32825 GE Oven Door Gasket
150LATCH ASM
157HIGH LIMIT SWITCH
207DIVIDER AIR CENTER
208WB34T10140 GE Oven Double Divider Air
209WB34X21910 GE Oven Rear Channel LT
214WB55X10971 GE Rear Channel
217WB34T10136 GE Upper Rear Duct Cover
219WB34X21913 GE Side Insulation Retainer
235WB48X21765 GE Oven Right Guide Rack
235WB48X21766 GE Oven Guide Rack Left
241WB48X23857 GE Oven Flat Rack
242WB48X21764 GE Oven Rack Slide Assembly
246BROILER PAN
247WB48X31884 GE Broiler Pan Grid
251WB44X21667 GE Oven Hidden Bake Element Kit
252BROIL ELEMENT
253SENSOR ASM
256WB01T10107 GE Oven Bolt Retainer
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X31221 GE Oven Halogen Lamp Assembly
260WB25X31223 GE Oven Halogen Lamp Assembly
261WB34X31317 GE Oven Light Lens
262WHITE SLATE VERTICAL SIDE TRIM
263SPRING ROLLER ASM
265WB07X29084 GE Receiver and Support Assembly
267RECEIVER PIVOT ASM
268WB07X46549 GE Bottom Trim White Slate
270WB10X24542 GE Oven Chain Assembly Kit
272RETAINER BEARING
273GEN WB02X8309
277VERTICAL BRACE ASM LT
277WB07X28522 GE Right Vertical Brace Assembly
280WB20T10024 GE Oven Thermistor Probe
301WB35X21972 GE Broil Element Gasket
350GEN WB07T10787
424WB56X43352 GE Air Duct Bottom Cover
490WB55T10197 GE Oven Hidden Bake Cover
512WB37T10024 GE Oven Top Plate
730WB18X23585 GE Oven Meat Probe and Harness
752WB1K5200 GE Oven Screw 340531
800WB01X21270 GE Oven Rack Guide Nut
807WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
808WB01X23771 GE Oven Recessed Screw 1/4 X 32
875WH2X930 GE Screw
876LOCK NUT
890SCR 3/8-24 MCH SK 1/4
935BEARING BRONZE
942WB1X5573 GE Oven Washer
998WB1X5572 GE Oven Nut
