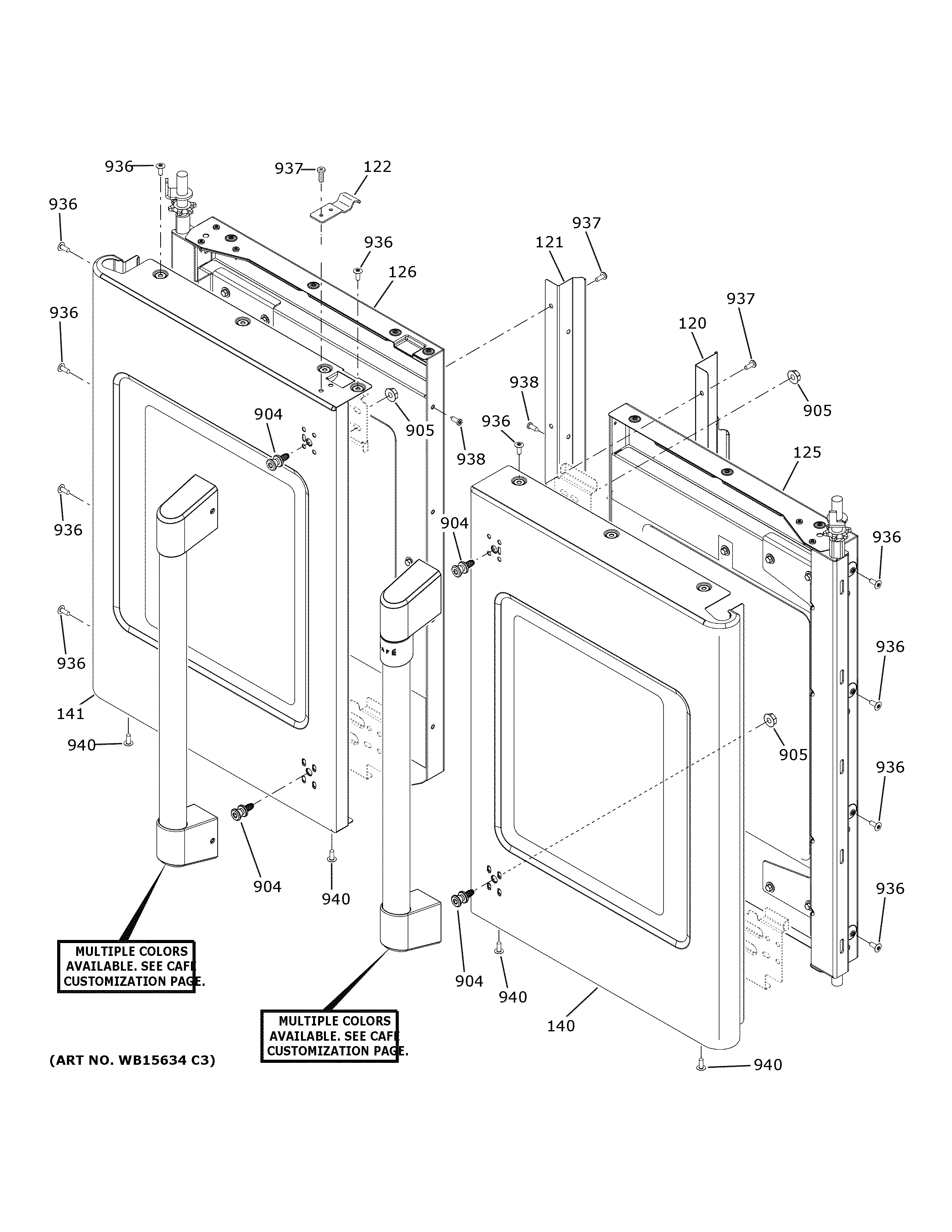

CTD90FP4N3W2 UPPER DOORS

CTD90FP4N3W2 UPPER DOORS

Written by

in

CTD90FP4N3W2 UPPER DOORS

Products

PositionProduct
120WB35X23767 GE Right Center Seal
121SEAL CENTER LT
122WB10X23776 GE Strike Plate
125WB56X24543 GE Oven Door Inner Assembly RT Kit
126WB56X24544 GE Dishwasher Door Inner Assembly Kit
140RIGHT OUTER DOOR-WHITE
141LEFT OUTER DOOR-WHITE
904WB01X31574 GE Mounting Stud
905HEX NUT 1/4-20
936WB01X24096 GE Screw 8-18X
937SCREW 8-32 MCH PNT-15 7/16
938WB01X23768 GE Screw 8-18 Ab Pnt 15 1/2
940WB1K5167 GE Screw 8-18 X 3/8"
