CTF17ABMR 1

Products

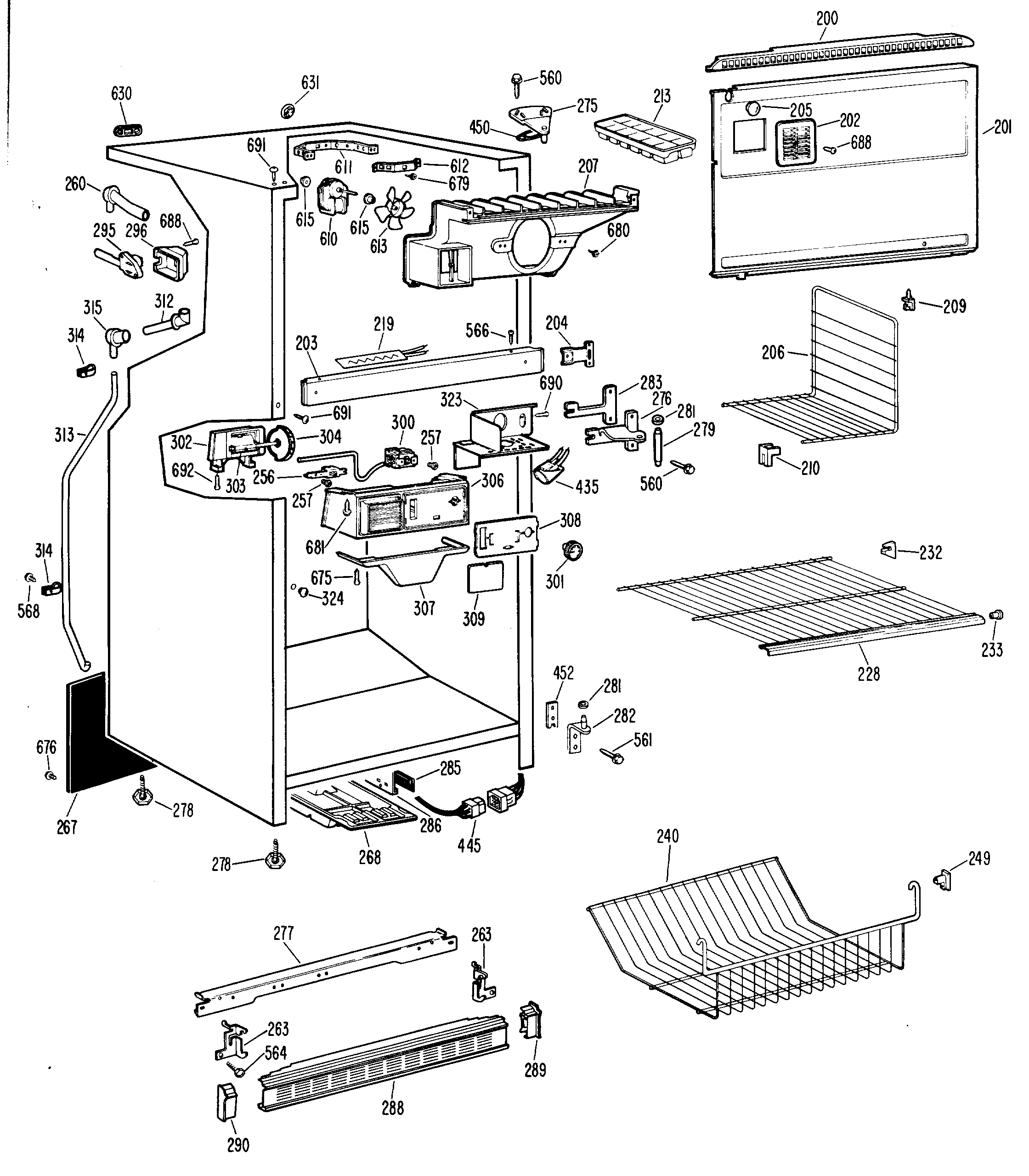

Position	Product
200	GRILLE EVAP COVER
201	COVER EVAP ASM
202	GEN WR02X7019
203	FOAM STRIP MULLION
203	GEN WR17X1544
204	SUPT-MULLION & NUTSTRIP
205	GEN WR02X7060
206	SHELF ASM FZ
207	PLENUM
209	SUPPORT TWIST FZ SHELF
210	GEN WR02X7016
213	WR30X311 GE Refrigerator Ice Tray
219	GEN WR51X0250
228	SHELF FF
232	SUPPORT SHELF
233	SUPPORT SHELF SIDE
240	SHELF BASKET
249	SUPPORT PAN COVER
256	GEN WR23X0203
257	SCR 6-32 D TR 3/8 SS
260	WR2X8474 GE Fill Tube
263	GEN WR02X4098
263	GEN WR02X4099
267	COVER ACCESS ASM
275	HINGE TOP & PIN ASM
276	GEN WR13X0527
277	GEN WR17X1563
278	LEVELING LEG
279	GEN WR02X7063
281	GEN WR01X1114
281	GEN WR01X1355
281	GEN WR01X1600
282	GEN WR13X0519
283	SHIM HINGE-.031 THK.
285	BAFFLE AIR EXTN BTM
286	BAFFLE AIR COND FAN
288	GRILLE O.CASE(BRN)
289	GEN WR02X6383
290	CAP GRILLE L. SIDE
295	GEN WR23X0162
296	COVER IM RECEPTACLE
300	GEN WR02X7061
300	CONTROL TEMP
301	SLEEVE VINYL
301	GEN WR02X7146
302	HOUSING NOZZLE
303	GEN WR02X7008
304	GEN WR02X7139
306	INSUL CONTROL HSG
306	GEN WR17X1534
307	GEN WR17X5893
308	GEN WR02X7147
309	GEN WR02X6388
312	FUNNEL DRAIN
313	TUBE DRAIN
314	GEN WR02X4516
315	GROMMET DRAIN
323	GEN WR17X1553
324	GEN WR02X7051
324	PLUG BUTTON LG WH
435	SOCKET LAMP
445	R-E-D SERVICE PKG.
450	GEN WR02X4194
452	SHIM HINGE BTM.
452	GEN WR02X7011
560	GEN WR01X1249
561	SCR 12-24 TT HXW 1 3/64S
564	GEN WR01X1194
566	GEN WR01X1487
568	SCREW
610	GEN WR60X0130
611	BRACKET EVAP FAN LARGE
612	BRACKET EVAP FAN
613	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
613	WR60X123 GE Fan Blade Black
615	GEN WR02X2945
630	WR2X4097 GE Button Plug
631	GEN WR02X4829
631	PLUG BTN (.875 DIA.HOLE)
675	SCR 8-18 AB TR 5/8SS PLW
676	WD2X5166 GE Dishwasher Screw
679	SCR 8-18 AB HX 3/8 S
680	SCR 8-18 AB HX 1/2S W
681	SCREW 6-18 X 1/2" ROUND
688	SCR 8-15 A PA 3/4 SS
690	WZ5X158D GE Screw Package of 12
691	SCR 6-20 AB HXW 1/4 S
691	GEN WR01X1594
692	SCR 8-18 AB HX 1/2 S PL
692	SCREW
