CTF17CAC 1

CTF17CAC 1

Written by

in

CTF17CAC 1

Products

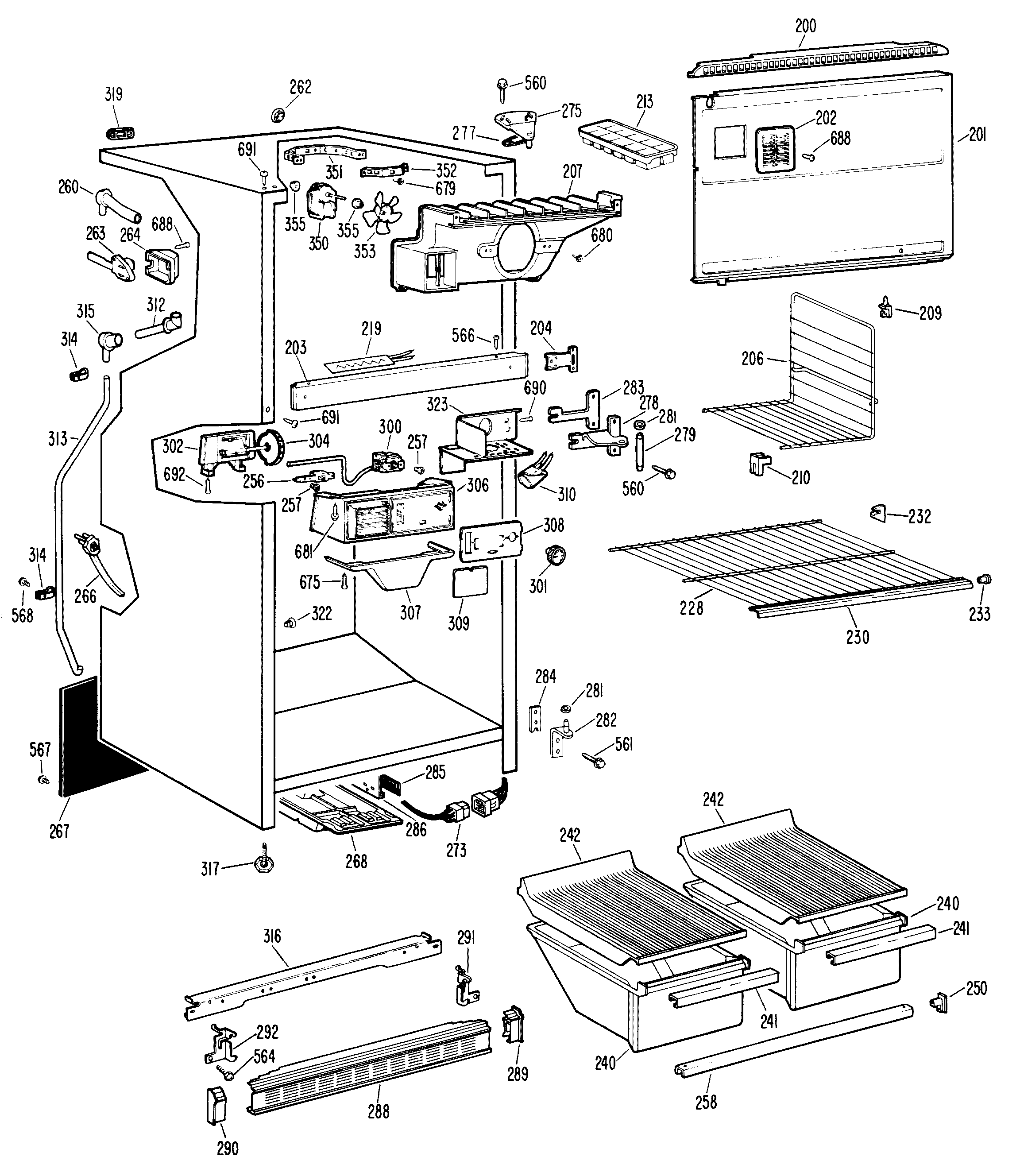

Position	Product
200	GRILLE EVAP COVER
201	COVER EVAP ASM
202	GEN WR02X7019
203	GEN WR17X1544
204	SUPT-MULLION & NUTSTRIP
206	SHELF ASM FZ
207	PLENUM
209	SUPPORT TWIST FZ SHELF
210	GEN WR02X7016
213	WR30X311 GE Refrigerator Ice Tray
219	GEN WR51X0250
228	SHELF FF
230	GEN WR38X5306
232	SUPPORT SHELF
233	SUPPORT SHELF SIDE
240	PAN VEG
241	GEN WR17X5907
242	WR32X5206 GE Refrigerator Vegetable Cover
250	SUPPORT PAN COVER
256	GEN WR23X0203
257	SCR 6-32 D TR 3/8 SS
258	CHANNEL SUPPT COVER
260	WR2X8474 GE Fill Tube
262	PLUG BTN (.875 DIA.HOLE)
262	GEN WR02X4829
263	GEN WR23X0162
264	COVER IM RECEPTACLE
266	WR1X5278 GE Refrigerator Cable Clamp
266	WR23X10300 GE Refrigerator Power Cord Assembly
267	COVER ACCESS ASM
268	PAN WATER DISPOSAL ASM
273	R-E-D SERVICE PKG.
275	HINGE TOP & PIN ASM
277	GEN WR02X4194
278	GEN WR03X0522
279	GEN WR02X6280
281	GEN WR01X1355
281	GEN WR01X1114
282	GEN WR13X0519
283	SHIM HINGE-.031 THK.
284	GEN WR02X7011
285	BAFFLE AIR EXTN BTM
286	BAFFLE AIR COND FAN
288	GRILLE
289	END CAP GRILLE R/SIDE
290	END CAP GRILLE L/SIDE
291	GEN WR02X4098
292	GEN WR02X4099
300	CONTROL TEMP
301	GEN WR02X6341
301	SLEEVE VINYL
302	HOUSING NOZZLE
304	GEN WR02X7023
306	GEN WR17X1534
306	INSUL CONTROL HSG
307	GEN WR17X5893
308	GEN WR02X6342
309	GEN WR02X6343
310	SOCKET LAMP
312	FUNNEL DRAIN
313	TUBE DRAIN
314	GEN WR02X4516
315	GROMMET DRAIN
316	GEN WR17X1563
317	LEVELING LEG
319	WR2X4097 GE Button Plug
322	GEN WR02X6345
323	GEN WR17X1553
350	GEN WR60X0118
352	BRACKET SMALL
353	WR60X123 GE Fan Blade Black
355	GEN WR02X2945
561	SCR 12-24 TT HXW 1 3/64S
564	GEN WR01X1194
566	GEN WR01X1487
567	WD2X5166 GE Dishwasher Screw
568	SCREW
679	SCR 8-18 AB HX 3/8 S
680	SCR 8-18 AB HX 1/2S W
681	SCREW 6-18 X 1/2" ROUND
688	SCR 8-15 A PA 3/4 SS
690	WZ5X158D GE Screw Package of 12
691	SCR 6-20 AB HXW 1/4 S
691	GEN WR01X1594
692	SCR 8-18 AB HX 1/2 S PL
692	SCREW
