CTF17CBCR 1

CTF17CBCR 1

Written by

in

CTF17CBCR 1

Products

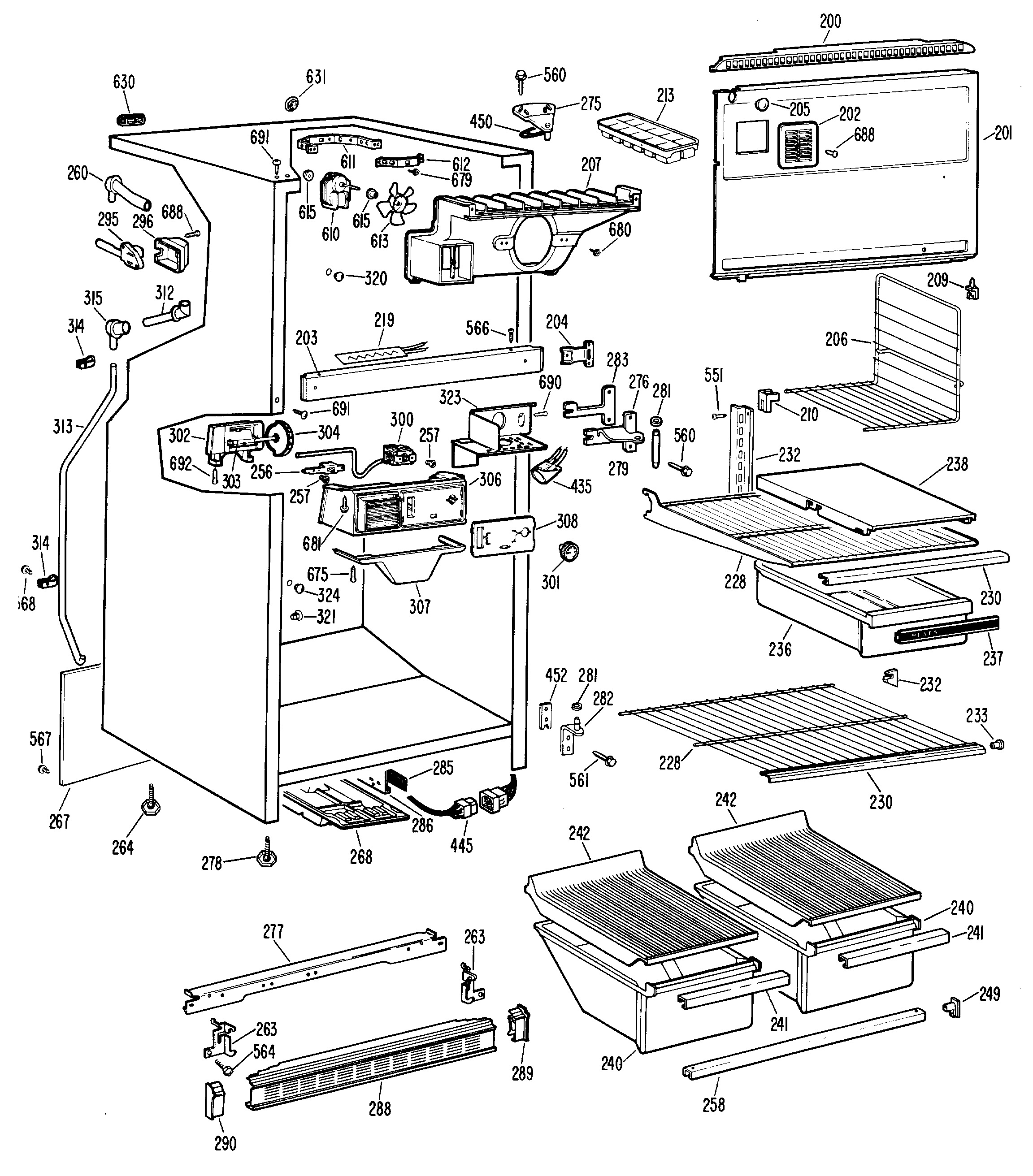

PositionProduct
200GRILLE EVAP COVER
201COVER EVAP ASM
202GEN WR02X7019
203GEN WR17X1544
203FOAM STRIP MULLION
204SUPT-MULLION & NUTSTRIP
205GEN WR02X7060
206SHELF ASM FZ
207PLENUM
209SUPPORT TWIST FZ SHELF
210GEN WR02X7016
213WR30X311 GE Refrigerator Ice Tray
219GEN WR51X0250
228SHELF FF
230GEN WR38X5306
232SUPPORT SHELF
233SUPPORT SHELF SIDE
240PAN VEG
241GEN WR17X5975
242WR32X5206 GE Refrigerator Vegetable Cover
249SUPPORT PAN COVER
256GEN WR23X0203
257SCR 6-32 D TR 3/8 SS
258CHANNEL SUPPT COVER
260WR2X8474 GE Fill Tube
263GEN WR02X4099
263GEN WR02X4098
264GLIDER ADJ.-5/16-18 THD.
267COVER ACCESS ASM
268PAN WATER DISPOSAL ASM
275HINGE TOP & PIN ASM
276GEN WR13X0527
277GEN WR17X1563
278LEVELING LEG
279GEN WR02X7063
281GEN WR01X1600
281GEN WR01X1355
281GEN WR01X1114
282GEN WR13X0519
283SHIM HINGE-.031 THK.
285BAFFLE AIR EXTN BTM
286BAFFLE AIR COND FAN
288GRILLE O.CASE(BRN)
289GEN WR02X6383
290CAP GRILLE L. SIDE
295GEN WR23X0162
296COVER IM RECEPTACLE
300CONTROL TEMP
300GEN WR02X7061
301SLEEVE VINYL
301GEN WR02X6386
302HOUSING NOZZLE
303GEN WR02X7008
304GEN WR02X7023
306INSUL CONTROL HSG
306GEN WR17X1534
307GEN WR17X5893
308GEN WR02X6387
312FUNNEL DRAIN
313TUBE DRAIN
314GEN WR02X4516
315GROMMET DRAIN
320WR2X3139 GE Refrigerator Plug Button
323GEN WR17X1553
435SOCKET LAMP
445R-E-D SERVICE PKG.
450GEN WR02X4194
452GEN WR02X7011
452SHIM HINGE BTM.
551GEN WZ04X0244
560GEN WR01X1249
561SCR 12-24 TT HXW 1 3/64S
564GEN WR01X1194
566GEN WR01X1487
568SCREW
610GEN WR60X0118
611BRACKET EVAP FAN LARGE
612BRACKET SMALL
613WR60X114 GE Refrigerator Evaporator Motor Fan Blade
613WR60X123 GE Fan Blade Black
615GEN WR02X2945
630WR2X4097 GE Button Plug
631GEN WR02X4829
631PLUG BTN (.875 DIA.HOLE)
675SCR 8-18 AB TR 5/8SS PLW
679SCR 8-18 AB HX 3/8 S
680SCR 8-18 AB HX 1/2S W
681SCREW 6-18 X 1/2" ROUND
688SCR 8-15 A PA 3/4 SS
690WZ5X158D GE Screw Package of 12
691GEN WR01X1594
691SCR 6-20 AB HXW 1/4 S
692SCREW
692SCR 8-18 AB HX 1/2 S PL
