CTF17CCBR 1

Products

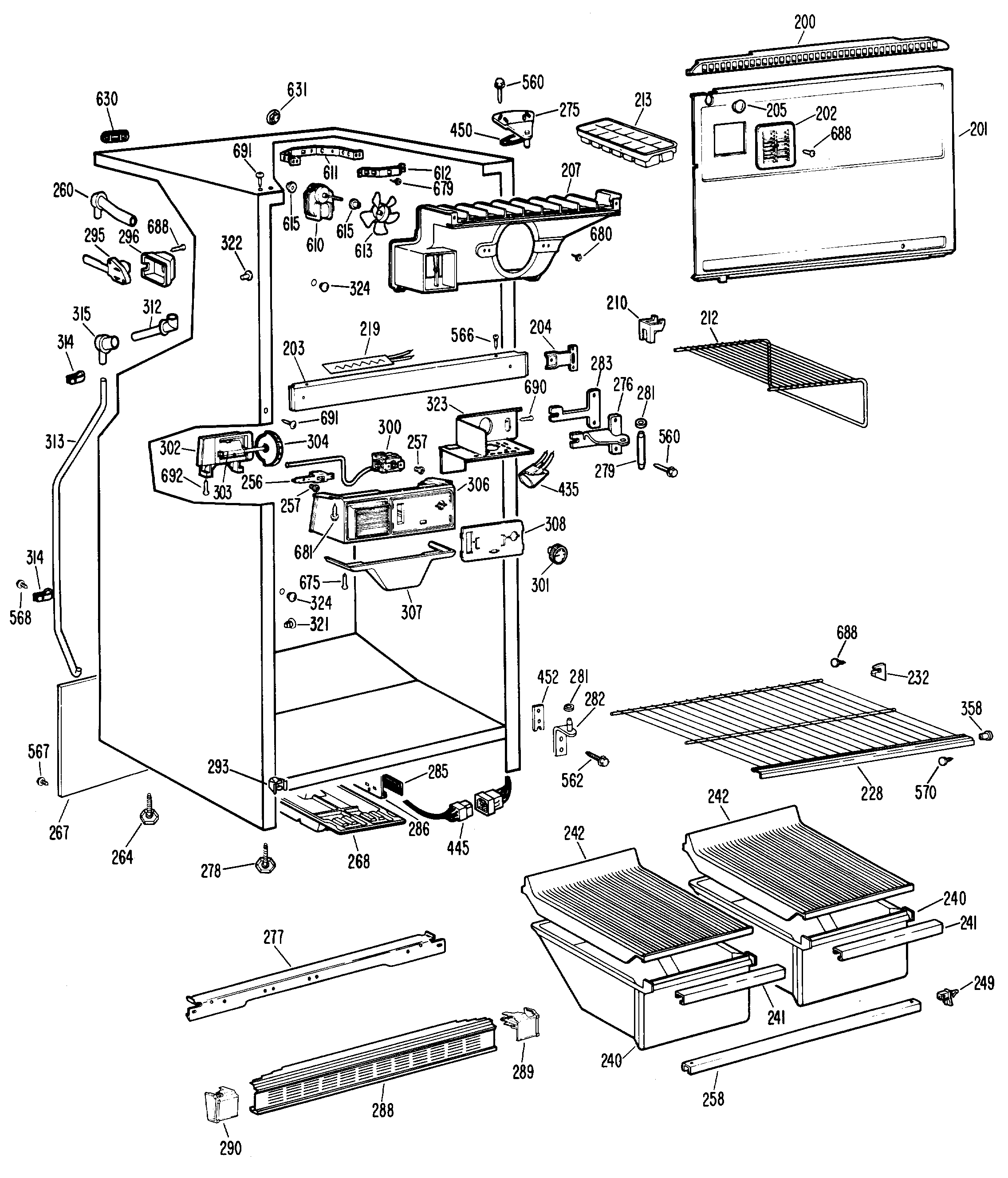

PositionProduct
200GRILLE EVAP COVER
201COVER EVAP ASM
202GEN WR02X7019
203GEN WR17X1544
204GEN WR01X1655
204SUPT-MULLION & NUTSTRIP
204FOAM STRIP MULLION
205GEN WR02X7060
207GEN WR14X0313
207PLENUM
210GEN WR02X7039
212GEN WR71X1512
213WR30X311 GE Refrigerator Ice Tray
219GEN WR51X0250
228GEN WR71X1513
232SUPPORT SHELF
240PAN VEG
241GEN WR17X1564
242WR32X5206 GE Refrigerator Vegetable Cover
249SUPPORT PAN COVER
256GEN WR23X0203
257SCR 6-32 D TR 3/8 SS
258CHANNEL SUPPT COVER
260WR2X8474 GE Fill Tube
264GLIDER ADJ.-5/16-18 THD.
267COVER ACCESS ASM
268PAN WATER DISPOSAL ASM
275HINGE TOP & PIN ASM
276GEN WR13X0527
277GEN WR17X1563
278LEVELING LEG
279GEN WR02X7063
281GEN WR01X1355
281GEN WR01X1600
281GEN WR01X1114
282GEN WR13X0519
283SHIM HINGE-.031 THK.
283GEN WR02X7190
285BAFFLE AIR EXTN BTM
286BAFFLE AIR COND FAN
288GRILLE O.CASE(BRN)
289GEN WR02X6810
290GEN WR02X6811
293GEN WR02X7080
295GEN WR23X0162
296COVER IM RECEPTACLE
300GEN WR02X7061
300CONTROL TEMP
301SLEEVE VINYL
301GEN WR02X7146
302GEN WR14X0312
302HOUSING NOZZLE
303GEN WR02X7008
304GEN WR02X7139
306INSUL CONTROL HSG
306GEN WR17X1534
307GEN WR17X5893
308GEN WR02X7147
312FUNNEL DRAIN
313TUBE DRAIN
314GEN WR02X4516
315GROMMET DRAIN
322GEN WR02X6345
323GEN WR17X1553
324PLUG BUTTON LG WH
358SUPPORT SHELF SIDE
435SOCKET LAMP
445R-E-D SERVICE PKG.
450GEN WR02X4194
452SHIM HINGE BTM.
560GEN WR01X1249
562SCR 12-24 TT HXW 1 3/64S
566GEN WR01X1487
568SCREW
570GEN WZ04X0331
610GEN WR60X0130
611BRACKET EVAP FAN LARGE
612BRACKET EVAP FAN
613WR60X123 GE Fan Blade Black
613WR60X114 GE Refrigerator Evaporator Motor Fan Blade
615GEN WR02X2945
630WR2X4097 GE Button Plug
631PLUG BTN (.875 DIA.HOLE)
631GEN WR02X4829
675SCR 8-18 AB TR 5/8SS PLW
679SCR 8-18 AB HX 3/8 S
679SCREW BRKT. EVAP. FAN
680SCR 8-18 AB HX 1/2S W
681SCREW 6-18 X 1/2" ROUND
688SCR 8-15 A PA 3/4 SS
690WZ5X158D GE Screw Package of 12
691GEN WR01X1644
691GEN WR01X1594
692SCREW
692SCR 8-18 AB HX 1/2 S PL
