CTF17CFGL 1

CTF17CFGL 1

Written by

in

CTF17CFGL 1

Products

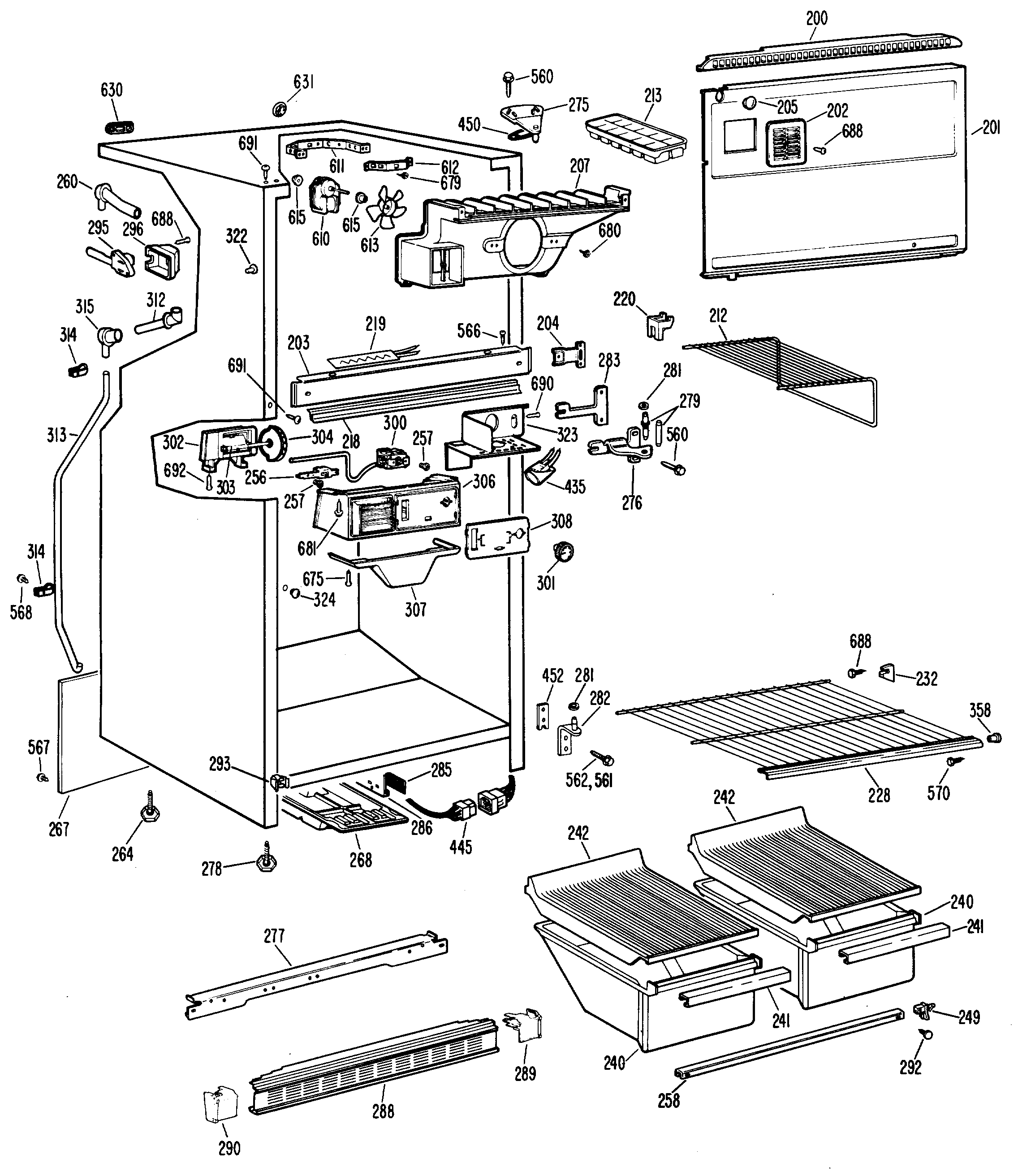

Position	Product
200	GRILLE EVAP COVER
201	COVER EVAP ASM
202	GEN WR02X7019
203	GEN WR14X0316
203	GEN WR17X2014
204	SUPT-MULLION & NUTSTRIP
204	GEN WR01X1655
205	GEN WR02X7060
207	GEN WR14X0313
207	PLENUM
212	GEN WR71X1512
213	WR30X311 GE Refrigerator Ice Tray
218	GEN WR14X0328
219	GEN WR51X0302
220	GEN WR02X7039
228	GEN WR71X1513
232	SUPPORT SHELF
240	PAN VEG
241	GEN WR17X1564
242	WR32X5206 GE Refrigerator Vegetable Cover
249	GEN WR02X7249
256	GEN WR23X0203
257	SCR 6-32 D TR 3/8 SS
258	GEN WR17X2028
260	WR2X8474 GE Fill Tube
264	GLIDER ADJ.-5/16-18 THD.
267	COVER ACCESS ASM
268	PAN WATER DISPOSAL ASM
275	HINGE TOP & PIN ASM
276	GEN WR13X0561
277	GEN WR17X1563
278	LEVELING LEG
279	GEN WR13X0562
281	GEN WR01X1114
281	GEN WR01X1355
282	NUTSTRIP HINGE
282	GEN WR13X0553
283	SHIM HINGE-.031 THK.
285	BAFFLE AIR EXTN BTM
286	BAFFLE AIR COND FAN
288	GRILLE O.CASE(BRN)
288	GEN WR79X5154
289	GEN WR02X6810
289	END CAP-GRILLE-R.SIDE (SL)
290	GEN WR02X6811
290	END CAP-GRILLE-L.SIDE (SL)
292	PLUG BUTTON
296	COVER IM RECEPTACLE
300	CONTROL TEMP
300	GEN WR02X7061
301	SLEEVE VINYL
301	GEN WR02X7146
302	GEN WR14X0312
302	HOUSING NOZZLE
303	GEN WR02X7008
304	GEN WR02X7139
306	INSUL CONTROL HSG
306	GEN WR17X1534
307	GEN WR17X5893
308	GEN WR02X7147
312	FUNNEL DRAIN
313	TUBE DRAIN
314	GEN WR02X4516
315	GROMMET DRAIN
322	GEN WR02X6345
323	GEN WR17X1553
358	SUPPORT SHELF SIDE
435	SOCKET LAMP
445	R-E-D SERVICE PKG.
450	GEN WR02X4194
450	GEN WR02X7151
452	GEN WR02X7011
452	SHIM HINGE BTM.
560	GEN WR01X1249
561	SCR 12-24 TT HXW 1 3/64 SPP
566	GEN WR01X1487
568	SCREW
570	GEN WZ04X0331
610	MOTOR EVAP FAN
611	BRACKET EVAP FAN LARGE
612	BRACKET EVAP FAN
613	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
613	WR60X123 GE Fan Blade Black
615	GEN WR02X2945
630	WR2X4097 GE Button Plug
631	PLUG BTN (.875 DIA.HOLE)
631	GEN WR02X4829
679	SCR 8-18 AB HX 3/8 S
679	SCREW BRKT. EVAP. FAN
680	SCR 8-18 AB HX 1/2S W
681	SCREW 6-18 X 1/2" ROUND
688	SCR 8-15 A PA 3/4 SS
690	WZ5X158D GE Screw Package of 12
691	GEN WR01X1644
691	GEN WR01X1594
692	SCR 8-18 AB HX 1/2 S PL
692	SCREW
