CTF18CAB 1

CTF18CAB 1

Written by

in

CTF18CAB 1

Products

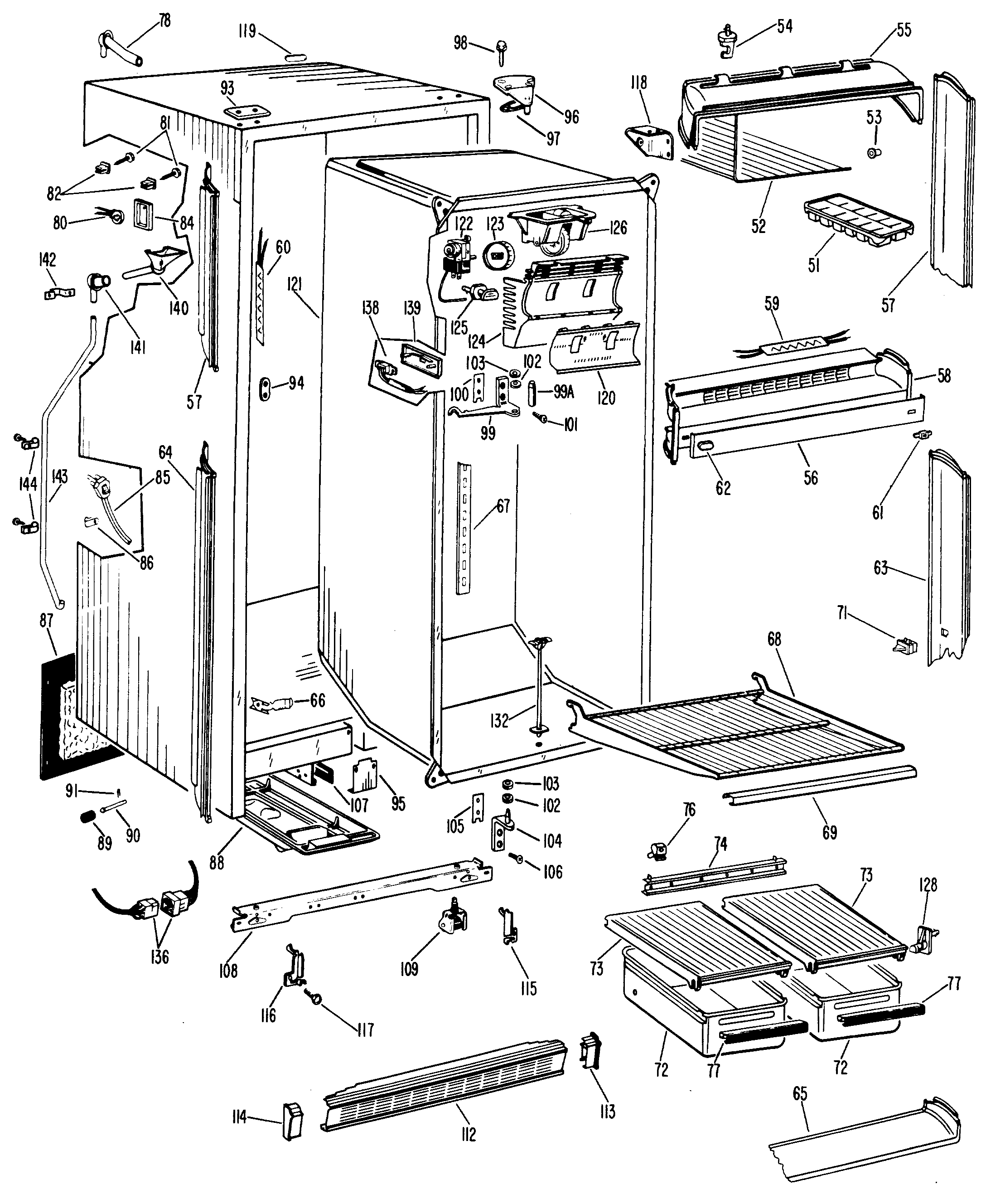

PositionProduct
51WR30X311 GE Refrigerator Ice Tray
52GEN WR71X5905
53GEN WR02X6261
54GEN WR02X6259
55GEN WR40X1417
56GEN WR38X0886
56SCR 6-20 B TR 1/4 SS
57BREAKER STRIP R. OR L. S
58GEN WR02X4175
58GEN WR02X4176
58GEN WR14X0269
58GEN WR02X4177
58SCREW 8-40X1/2 SPEC DRIL
58MULLION (WH)
59GEN WR51X0229
60HEATER O. CASE
61GROMMET DOOR STOP
62GEN WR02X4922
63GEN WR40X1571
64BREAKER STRIP LATCH FF
65GEN WR40X1424
66CLIP
67GEN WR72X0063
67GEN WR01X1483
68GEN WR71X1349
69GEN WR02X3440
69TRIM SHELF FRT.
71SWITCH LIGHT
72GEN WR32X5182
73GEN WR32X0657
74GEN WR71X1181
76SUPPORT-REAR
76WZ4X241D GE Screw Package
77GEN WR38X5277
78GEN WR02X4396
78GEN WR02X3248
78GEN WR02X6123
78GEN WR02X4395
80GEN WR23X1239
84GEN WR01X1326
84GEN WZ04X0244
84COVER RECEPTACLE
85WR23X10300 GE Refrigerator Power Cord Assembly
86WR1X5278 GE Refrigerator Cable Clamp
87WD2X5166 GE Dishwasher Screw
87COVER ACCESS ASM
88PAN WATER DISPOSAL ASM
89WR2X3594 GE Refrigerator Wheel
90GEN WR02X3595
91GEN WR02X3598
93COVER-TOP HINGE HOLE (AD
93COVER-TOP HINGE HOLE (HA
93GEN WR38X0887
94GEN WR01X1571
94GEN WR38X0892
94GEN WR38X0896
94COVER-CTR. HINGE HOLE (H
95SCR 8-18 AB TR 5/8SS PLW
95COVER
96HINGE TOP & PIN ASM
97GEN WR02X4194
98GEN WR01X1249
99GEN WR13X0516
99POP RIVET
99NUT STRIP
99GEN WR02X6280
100GEN WR02X6281
101SCR 12-24 HXW 7/8 S PP
102GEN WR01X1355
103NUTSTRIP TOP HINGE
103GEN WR01X1114
104GEN WR13X0517
105GEN WR02X7011
106SCR 12-24 TT HXW 1 3/64S
107BAFFLE AIR COND FAN
107GEN WR02X3863
107BAFFLE AIR EXTN BTM
108RAIL MACH MTG FRT
109WHEEL ASM FRT
112GRILLE
113END CAP GRILLE R/SIDE
114END CAP GRILLE L/SIDE
115GEN WR02X4098
116GEN WR02X4099
117GEN WR01X1194
118GEN WR01X1122
118GEN WR01X1487
118GEN WR02X4498
119WR2X4097 GE Button Plug
120GEN WR02X6260
121WR2X3139 GE Refrigerator Plug Button
121PLUG BUTTON LINER 5/16 D
121PLUG BUTTON .207 DIA. HO
122GEN WR02X4493
122CONTROL TEMP
122SEALING SLEEVE
123SHIM HINGE BTM.
